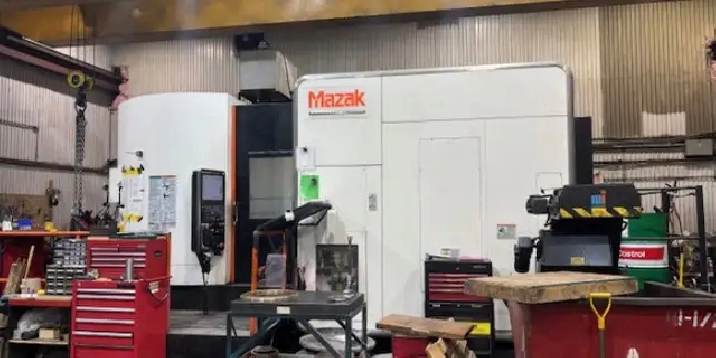

Multitasking machining center MAZAK INTEGREX I-630V (2015)
X-axis (table forward/backward)
1475 mm (58.07")
Y-axis (spindle head right/left)
1050 mm (41.34")
Z-axis (spindle head up/down)
1050 mm (41.34")
B-axis (spindle head tilt)
150° ~ -30° - 120°
C-axis (table rotate)
360° (continuous)
Max. machining diameter
Ø 1050 mm (41.34")
Max. workpiece size
Ø 1050 mm × 1000 mm (Ø 41.34" × 39.37")
Pallet size
630 mm × 630 mm
Table load capacity (evenly distributed)
1750 kg (3858 lbs) (Pallet weight included)
Max. spindle speed
10,000 rpm
