The magnetic lifter is made with super strong neodymium magnets, which is used for lifting steel sheet,block,rod, cylindrical and other magnetic material. It requires no electricity, which is widely used in the industrial world for making steel projects move more efficiently. Each item must be tested qualified before they are sent out of the factory.
-
Features:
1.Easy use: handle with on/off control - attach or detach material
2.V slot of bottom lifting face - lift round and flat material
3.Low residual magnetism for rapid handling
4.Large U-loop shackle hook allows easy attachment of slings

Notes:
1.Please clean the surface of the steel sheet before using it.
2.Prohibit standing under the steel sheet when the steel sheet is lifted.
3.Please do not control the handle when there is no any steel sheet under the magnetic lifter.
-

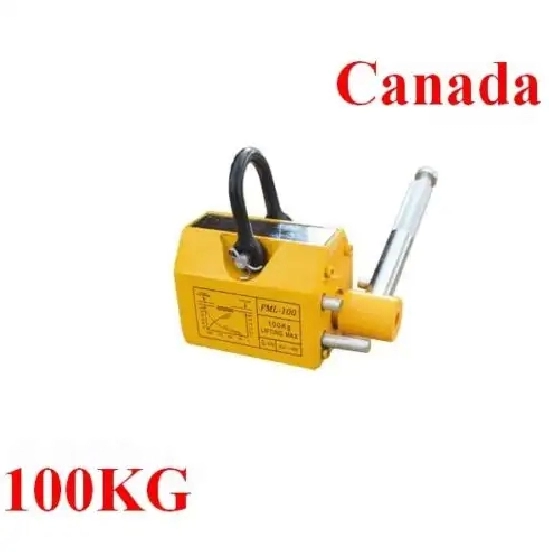

*** Model: 100KG Magnetic Lifter
Item Number 170448

Parameters:
*Model: PML-1
*Item net weight: 3kg(6.6lb)
*Operating temperature: <=80 Degrees Celsius
*Maximum weight capacity (flat): 100kg(220 lb)

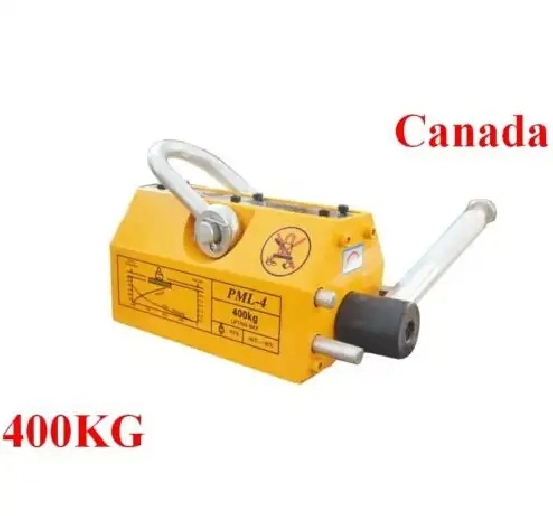

*** Model: 400KG Magnetic Lifter
Item Number 170449

Parameters:
1.Model: PML-4
2.Item net weight: 15kg(33 lb)
3.Operating temperature: <=80 Degrees Celsius
4.Maximum weight capacity (flat surface): 400kg(881 lb)

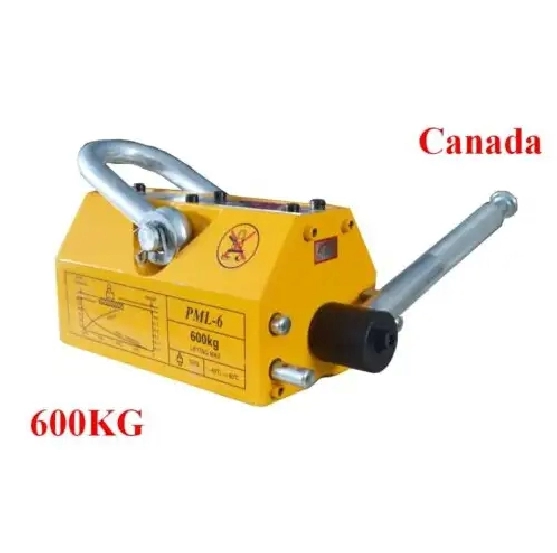

*** Model: 600KG Magnetic Lifter
Item Number 170450

Parameters:
1.Model: PML-6
2.Item net weight: 21.5kg(47.4 lb)
3.Operating temperature: <=80 Degrees Celsius
4.Maximum weight capacity: 600kg(1320 lb)
5.Maximum weight for curved surface/vertical lift:200-300kg(441-661 lb)

*** Model: 1000 KG Magnetic Lifter
Item Number 170451

Parameters:
1.Model: PML-10
2.Item net weight: 35kg(77 lb)
3.Operating temperature: <=80 Degrees Celsius
4.Maximum weight capacity: 1000kg(2200 lb)
5.Maximum weight for curved surface/vertical lift:350-450kg(771-992lb)

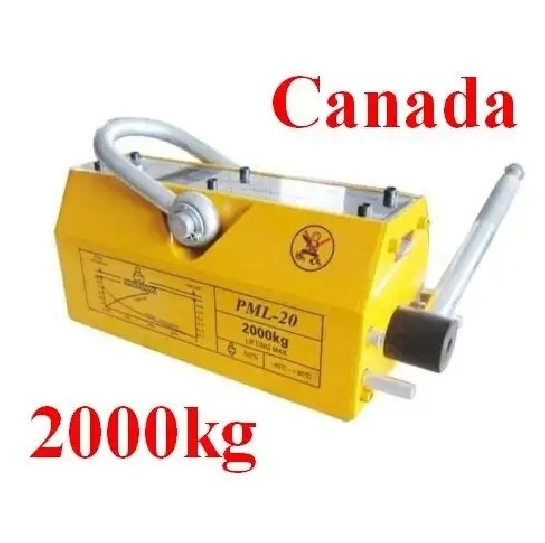

*** Model: 2000 KG Magnetic Lifter
Item Number 170452

Parameters:
1.Model: PML-20
2.Item net weight: 68kg(150 lb)
3.Operating temperature: <=80 Degrees Celsius
4.Maximum weight capacity: 2000kg(4409 lb)
5.Maximum weight for curved surface/vertical lift:600-700kg (1323-1543lb)

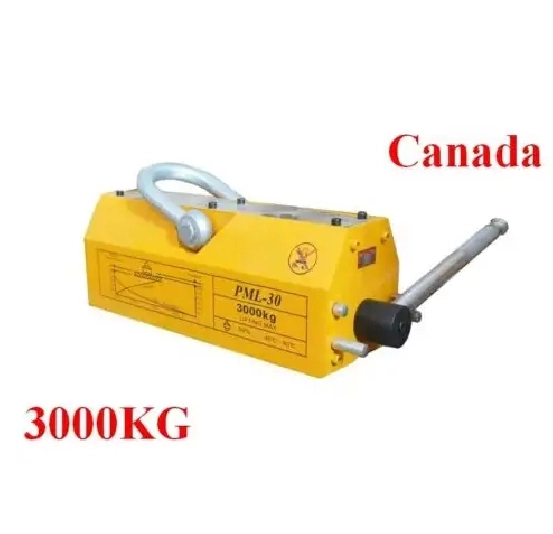

*** Model: 3000 KG Magnetic Lifter
Item Number 170453

Parameter:
1.Model: PML-30
2.Item net weight: 90kg(198 lb)
3.Operating temperature: <=80 Degrees Celsius
4.Maximum weight capacity: 3000kg(6614 lb)
5.Maximum weight for curved surface/vertical lift:1050-1100kg(2314-2425 lb)
-
Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
-
