RC-210E 8'32' 2Head 2Chuck Electronic Pulse Metal Lathe 028364

Scarborough, ON M1P 3E6
$2,499
Please contact
  • Scarborough, ON M1P 3E6
  • 2,499

Description

Item number: 028364
-
Product Overview
Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used inch thread.
The design of this new lathe is a great innovation, it solves many disadvantages of other lathes in the past, High precision concentricity can help you better complete the shaft and tube processing! choose it you will not regret!!

Product Parameters
Model: RC-210E
Voltage: AC110V 50/60Hz(Brushless Motor)
Power: 1100W(1.5HP)
Length of center: 31.50"(800mm)
Swing Over Bed: 8.27"(210mm)
Concentricity tolerance: 0.03mm-0.05mm
Rotary diameter of tool rest: 5.51"(140mm)
Spindle bore: Right side: 1.50"(38mm)
Left side: 1.26"(32mm)
Max clamping diameter of right chuck: 4.92"(125mm)
Max clamping diameter of left chuck: 3.54"(90mm)
Width of lathe bed: 3.94"(100mm)
Thread standard: Metric/imperial/customized
Turning delay start time: 1s-30s
Number of Spindle Speeds: Infinitely variable speeds
Range of Inch Threads: 10-44T.P.I
Range of metric threads: 0.5mm-3mm
Spindle taper: MT5
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of the spindle: 0.01mm
Automatic feed range: 0.01mm-0.4mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.16"(55mm)
Maximum stroke of middle plate: 2.95"(75mm)
Maximum stroke of bottom plate: 26.77"(680mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)

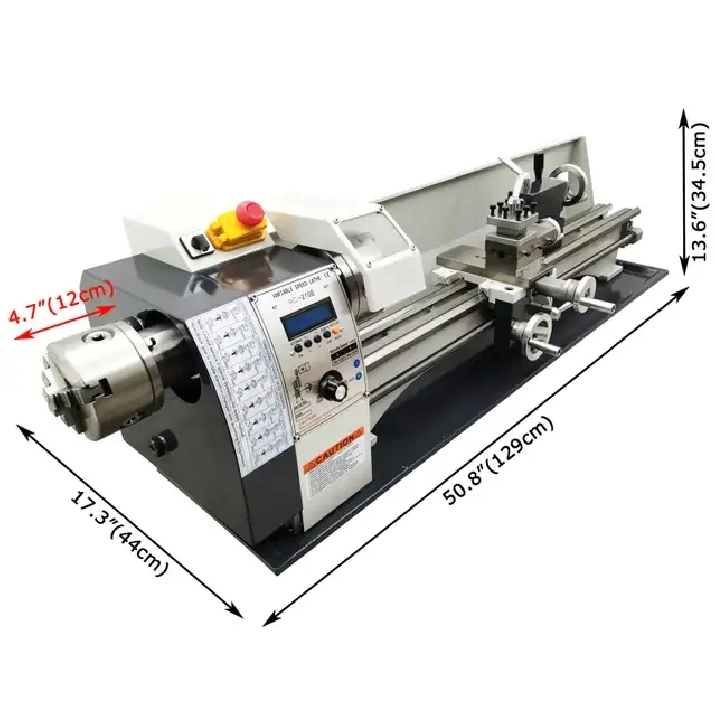

Package size: 55.1"*18.5"*20.1"(140cm*47cm*51cm)
Net weight/Gross weight: 178.5LB(81kg)/220.5LB(100kg)
Note: The yellow on the lathe bed and chuck is antirust oil, Belong to normal phenomenon,which can be wiped off with oil or gasoline before use.Be sure to clean the anti-rust oil on the chuck before starting and turn the chuck by hand to prevent the chuck from jamming and causing the circuit board to burn out!!

Product Features & Advantages

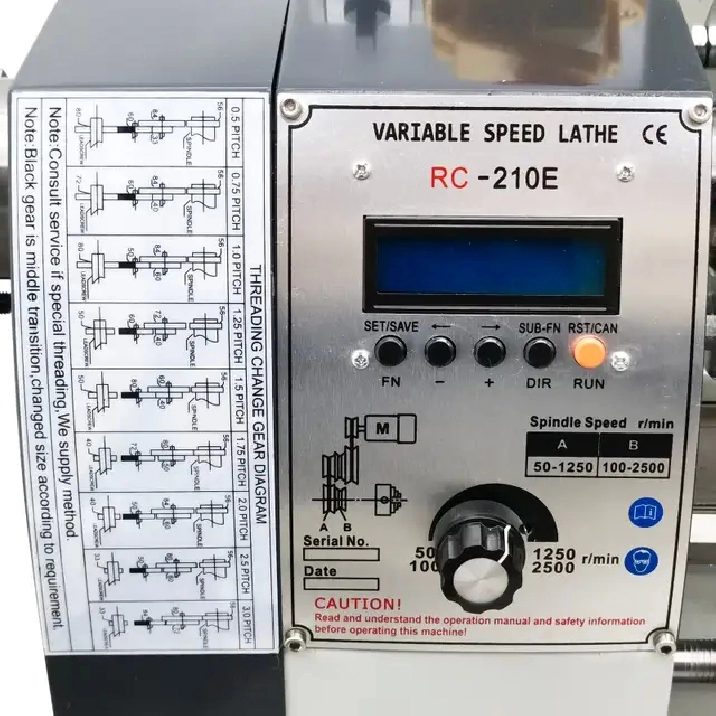

1. Control panel:
Spindle rotation speed is divided into two adjustable gears:50-1250 rpm and 1250-2500rpm. Panel can observe the rotation speed in real time,which is convenient and flexible.
Switching between metric and imperial is no longer required by changing gears! Only need to operate through the panel, save
a lot of time!

2. Accurate Tailstock:
Tailstock is movable and fixed, with a maximum center distance of 31.5" at the far right. With the MT#2 taper in tailstock spindle, this lathe is capable of adjusting set screws for accurate operation.

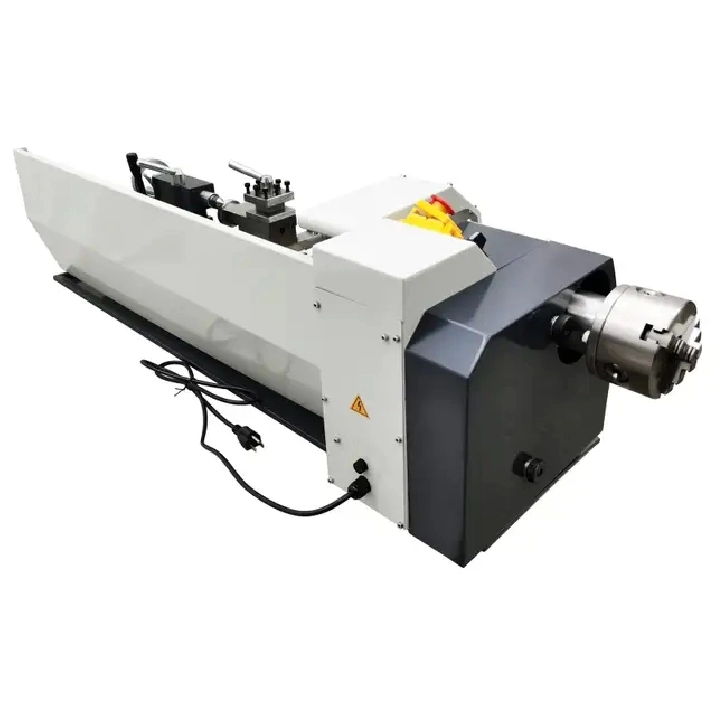

3. Two Chucks:
The left side of the lathe with two chucks, the concentricity of 0.03-0.05mm, can be processed longer objects, especially in the processing of shaft and pipe part processing accuracy is higher!

4. Switch:
Lathe above the design of forward and reverse switch and start & emergency stop switch, easy to operate, in case of emergency can immediately cut off the power supply, to ensure personal safety.

5. 4-way Tool Post:
The adjustable 4-way tool post on the lathe allows you to easily change your cutting tools. The 8 screws allow you to better grip the tool and finish the machining efficiently.

6. Belt & Gear:
Belt drives the spindle to rotate, and the speed is adjusted more accurately. Powder metallurgy gear, not easy to break teeth, low noise, replacement gear can process different threads.

7. Metric Scale:
Precise metric are provided on the saddle handle,the tailstock handle and the movable center, allowing for more accurate and professional work.

8. Self-acting Feed:
Self-acting feed design solves many disadvantages of manual feeding, and can set self-acting feed speed through the panel, greatly improve the machining accuracy and efficiency.

9. Wide Application:
This lathe can be used for turning end face, internal and external thread, Buddha beads, as well as drilling, chamfering, cutting and other processing. Can meet most of your DIY processing needs.

- It can automatically switch between metric and inch systems without changing gears.
- In the X axis direction can be automatic feed, no manual; Automatic feed speed can be adjusted; Automatic feed range reached 0.01mm-0.4mm!

- There are three ways to start turning: manual start, automatic start, delay automatic start.

- Indexing function: you can switch the direction of turning tool through "DIR" button; Angles can be cleared with one click.

- Control panel set parameters after saving and start, can realize reciprocating turning function and turning thread.

Item Included(028364)
RC-210E lathe *1 Base oil pan *1 English manual *1
Oil can *1 Hexagon wrench *5 Open spanner *2
The screwdriver *2 Chuck jaw *3 Chuck spanner *1
