Item number: 027330
-
Description:

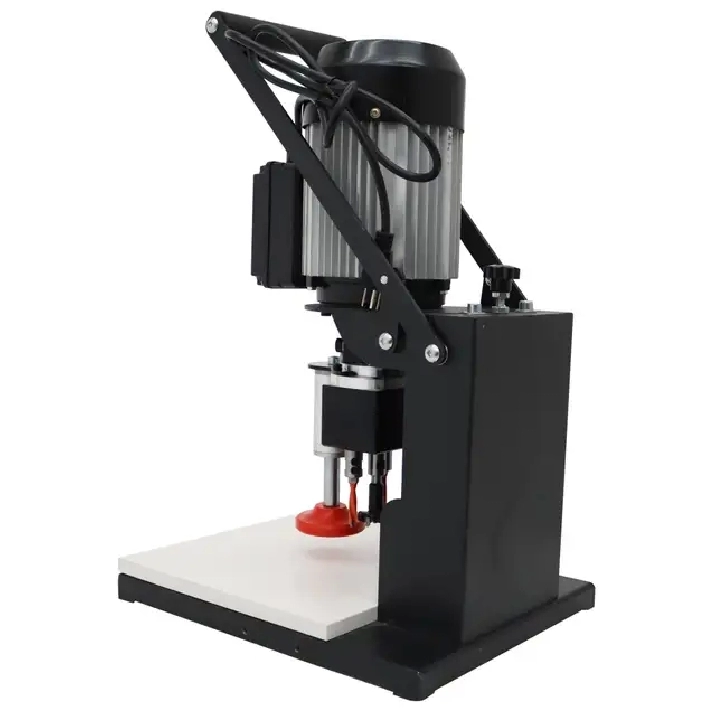

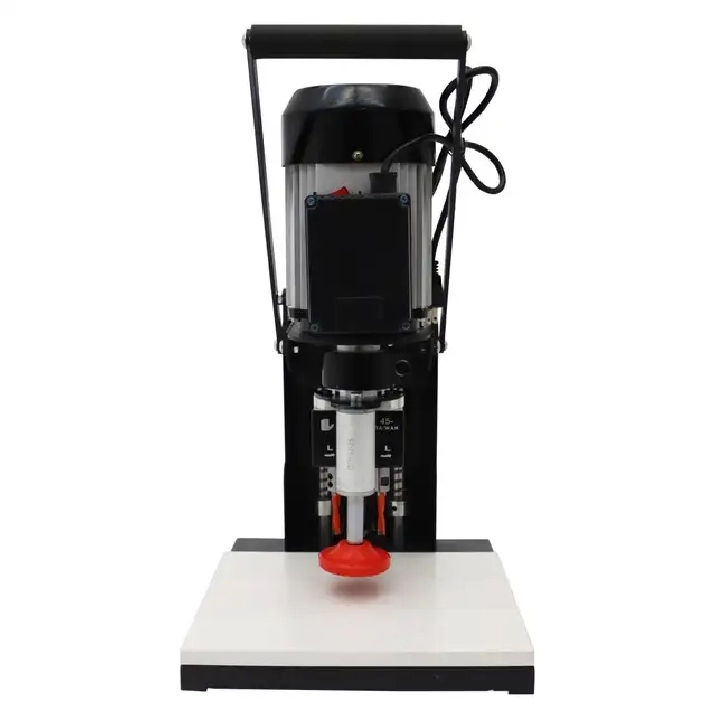

This machine is mainly used for drilling processing of
cabinets, wardrobes, door processing and manufacturing, and
can adjust the drilling position vertically and horizontally,
which is convenient and fast, and the switch control is
accurate and in place.

One - time completion of hinge hinge hole and screw holes on
both sides of the hole, greatly improve the work efficiency.

This machine adopts pure copper motor, high quality drilling
package, thickened iron body, thickened waterproof working
surface. The compact body is easy to carry, is a good helper
of home decoration.

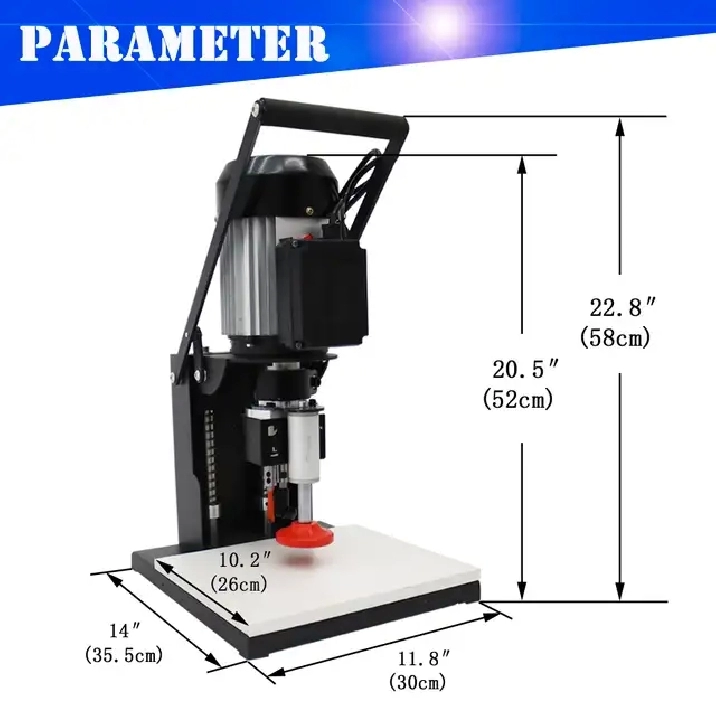

Parameters:
Voltage: 110V
Power: 1100W
Punching Depth: 0-40mm
Speed: 2840r/min
Drill: φ35mm*1,φ8mm*2
Combined Drill Model: 45-9.5
Scale: 19.6 "(50cm)
Net Weight: 40.7LBS (18.5kg)
Gross Weight: 48.4LBS (22kg)
Package Size: 15.94 "*15.16" *24.41"
(40.5 * 38.5 * 62 cm)

Advantage:
1.Portable hinge drilling machine, small body, easy to carry
and move.

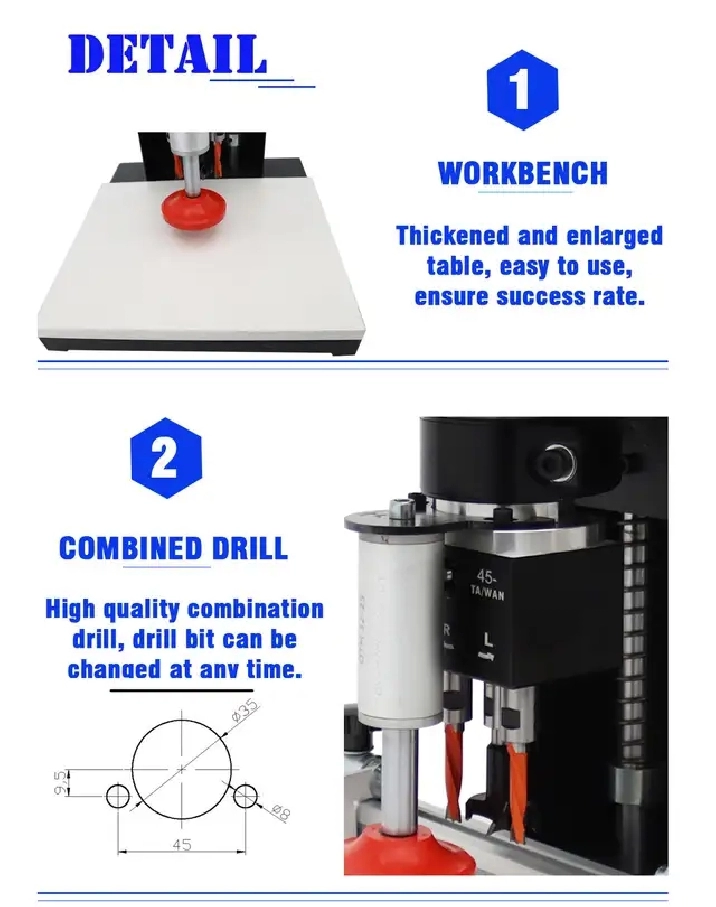

2.Thickened and enlarged table, easy to use, ensure success
rate.
3.High quality combination drill, drill bit can be changed at
any time.

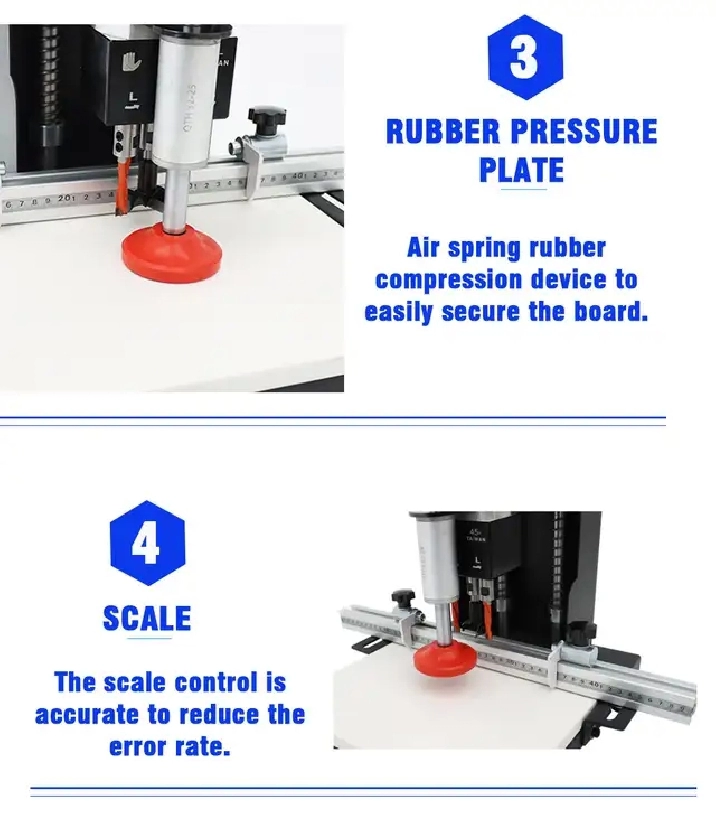

4.Air spring rubber compression device to easily secure the
board.
5.The scale control is accurate to reduce the error rate.

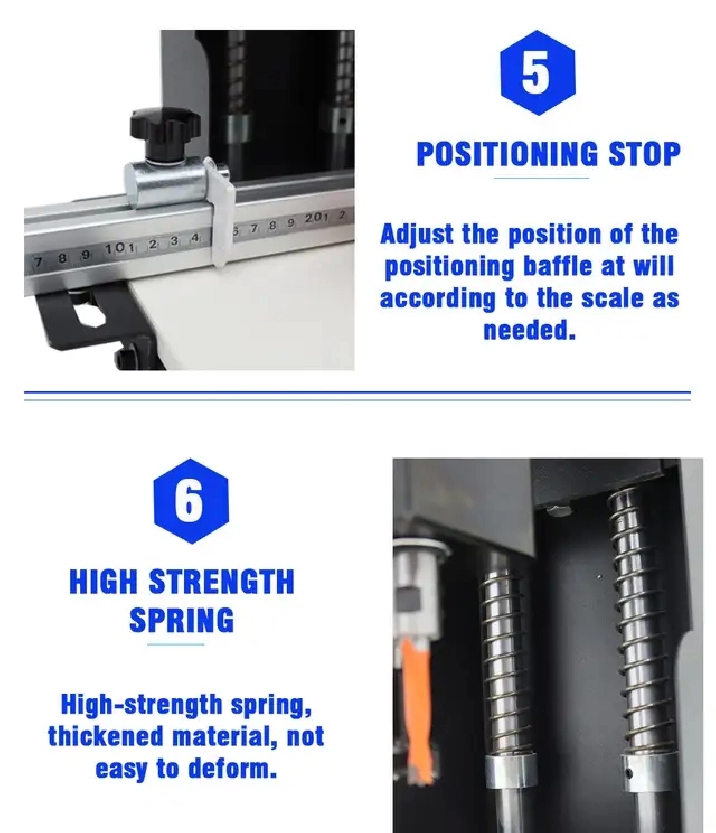

6.Adjust the position of the positioning baffle at will
according to the scale as needed.
7.High-strength spring, thickened material, not easy to deform.

Precautions For Use:
1.Before operation, check whether the power cable is properly
connected, whether the protective device and the pressing device
are complete, and whether the components are normal.

2.The operating position should be bright and without shadow.

3.The drill should be centered, balanced and sharp.

4.This machine is mainly used for wood punching processing
(thin aluminum can also be), and the selection of materials
can not have nails, screws and other tools damaged or blunt
foreign bodies.

5.Hands should not touch the rotating parts of the machine
tool during operation, and the wood chips should not be
removed during operation. The power supply must be cut off
before adjusting or removing the wood chips, and can only be
carried out after the machine tool stops working.

6.Stop the machine immediately if anything abnormal is found.

NOTE: Confirm drill hole size before purchase.

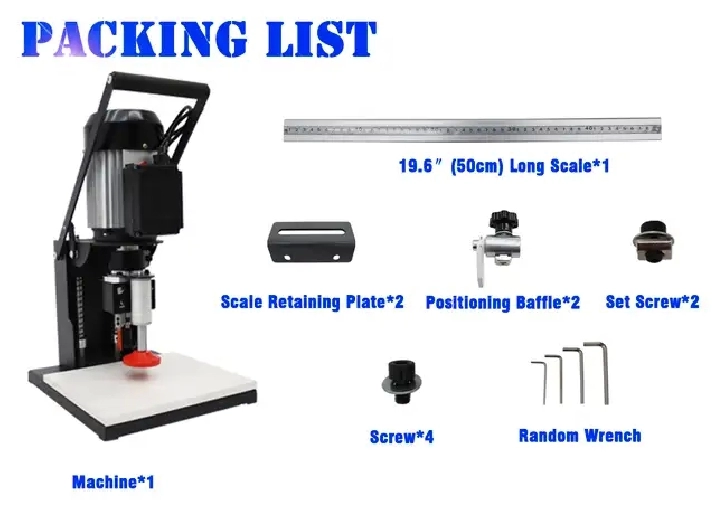

Item Included: 027330
1*Portable electric hinge drill
