Item number: 022733

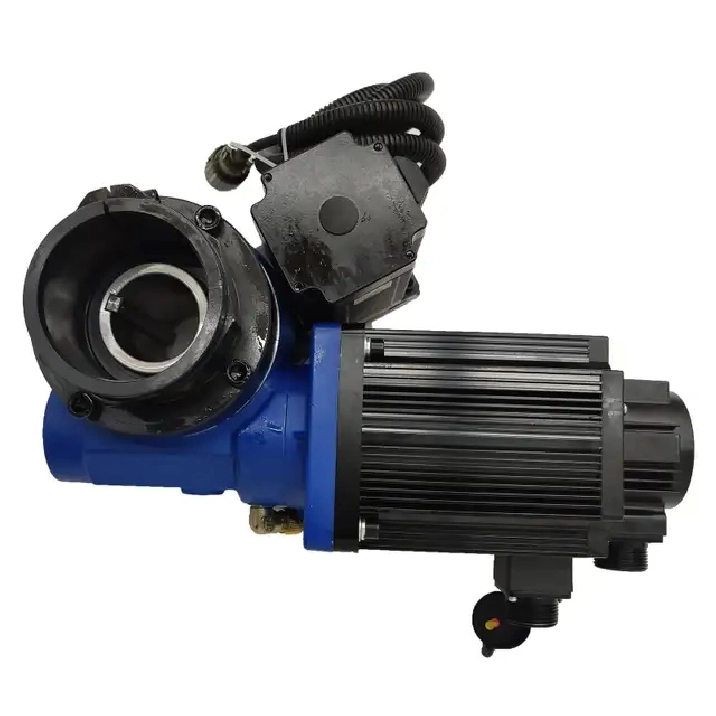

The boring and welding integrated machine is a piece of mechanical equipment that integrates boring and welding functions. It mainly comprises a machine frame, a workbench, a transmission system, fixtures, a boring head and a welding device. Its working principle is that holes are processed through the boring head, and welding can also be conducted through the welding device. The specific process comprises the steps of fixing the workpiece on the workbench, driving the boring head through the transmission system to process the holes, and using the welding device to weld at the position that needs to be welded.

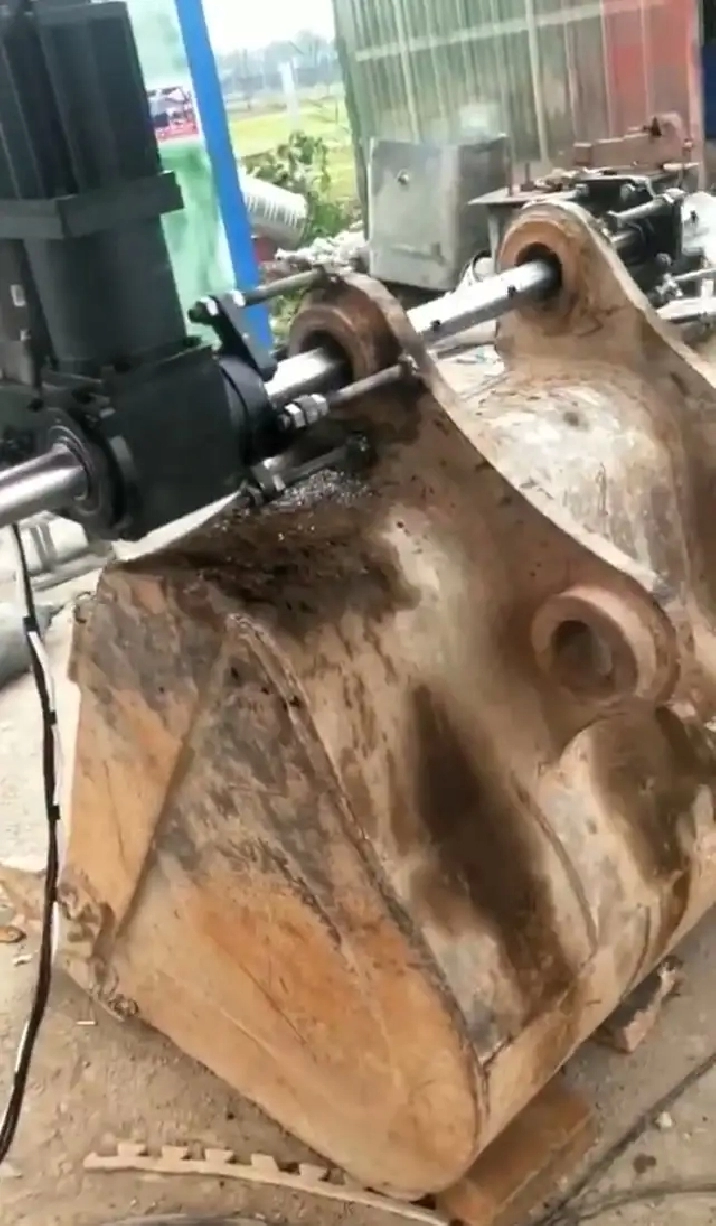

The boring and welding integrated machine is used for post-welding processing of shaft pin holes, rotary holes and hinged holes on various construction machinery structures, or sleeve insertion after reaming is accomplished, or repair and machining of concentric holes in excavators, loaders, presses, cranes, etc.

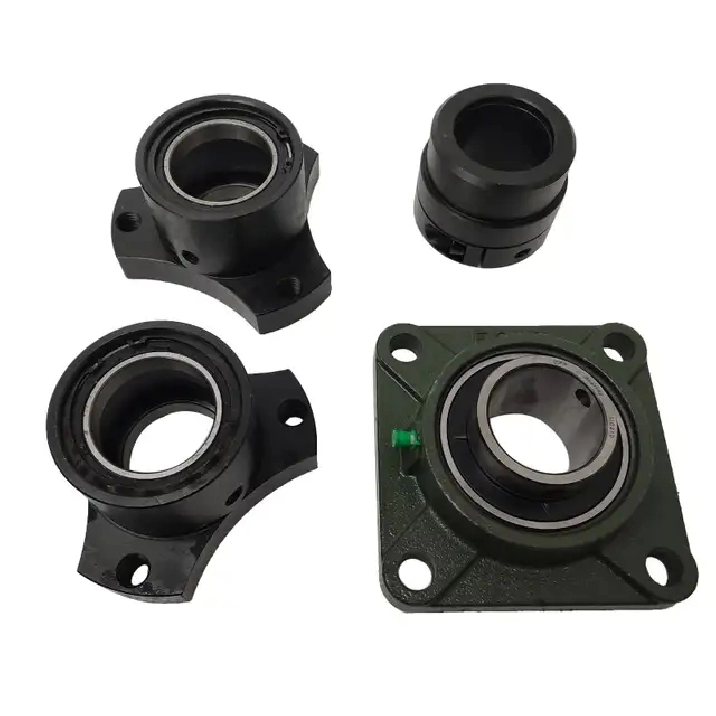

The boring machine is installed by welding and bolt connection, which is convenient for disassembly and transportation. The boring machine is suitable for the processing of various concentric holes and side-by-side holes. The work is continuous cutting, with high production efficiency and high machining accuracy.

Features
The boring and welding integrated machine has the advantages of integration and high efficiency. One machine can fulfill two functions, so that the equipment switching and transporting time in the production process is shortened, and the production efficiency is improved.
1. Multi-function integration: The boring and welding integrated machine integrates the boring function and the welding function, multiple purposes of one machine can be achieved, and the production efficiency is greatly improved.
2. Non-contact machining: The non-contact processing technology is adopted, so that the problems of heat affected zones and poor fusion caused by traditional contact welding methods are avoided, and the stability and consistency of the processing quality are guaranteed.
3. High machining accuracy: It has high machining accuracy and high precision and is suitable for machining and maintenance of various complex workpieces.
4. Easy to operate: The fixture design is reasonable, the operation is easy, and the labor cost is reduced. The size is relatively small, and the machine is suitable for various production scenarios.
5. High stability and reliability: The rigidity and accuracy of the equipment are guaranteed, so that the processing and welding quality is more stable and reliable.
6. Wide application range: The machine is widely used in the machinery manufacturing field, the metal processing field and other fields including the fields of agricultural machinery, automobiles and energy equipment.

Because of these features, the boring and welding integrated machine can have significant advantages in industrial production, meet various processing demands and ensure the processing quality.

Parameters
Control mode: manual/automatic
Application: Boring and repair welding of inner holes
Main motor power: 2.35KW
Feed motor: torque 40Nm (gear transmission) torque 8.5Nm (worm gear)
Voltage: 110V 50/60HZ
Working stroke: 260mm
Main engine speed: 0-390r/min
Boring diameter: 55-300mm
Feeding speed: stepless speed regulation
The maximum amount of knife cutting on one side: 3mm
Repair welding diameter: 50-300mm
Machining roughness: Ra3.2
Machining hole roundness: ≤0.02mm

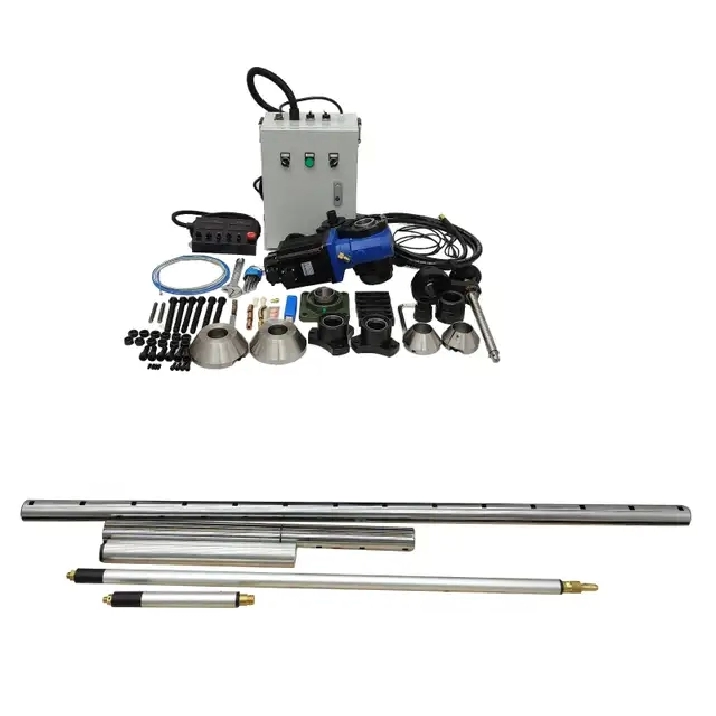

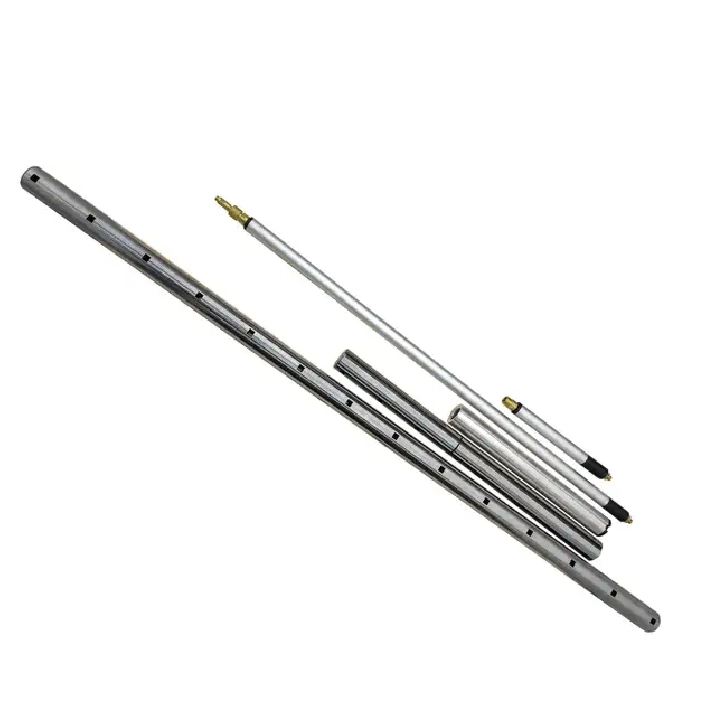

2 boring bars: 1600 * 50mm/700 * 50mm
Two welding rods: 1200 * 30mm/360 * 30mm
One hollow sleeve rod: 435mm (outer diameter 50mm, inner diameter 30mm)

Item Number: 022733
