Specifications:

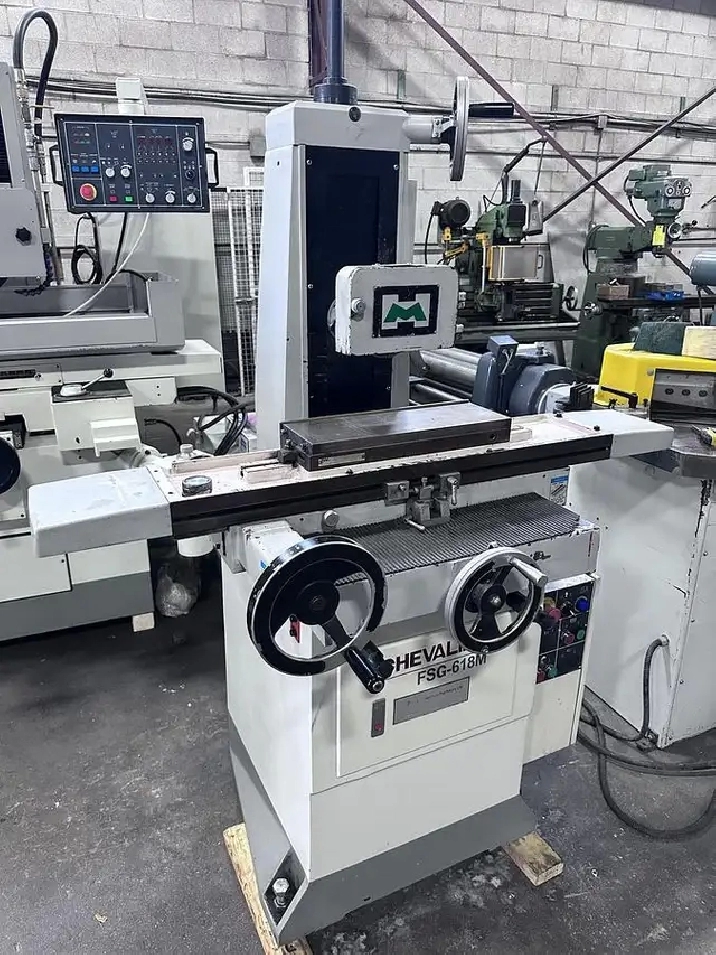

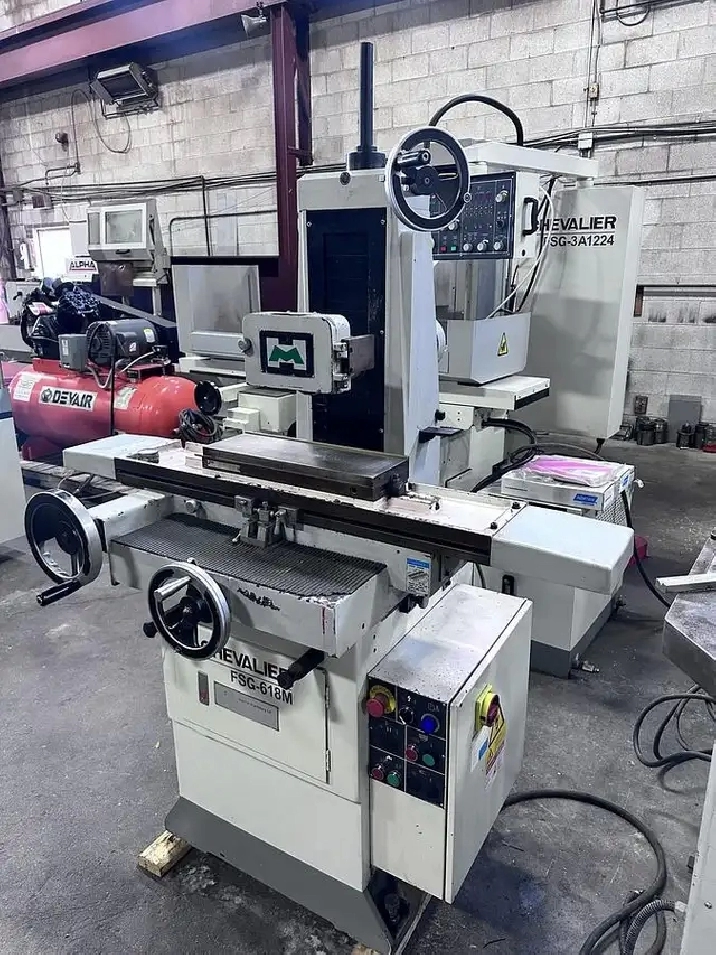

Manufacturer CHEVALIER
Model FSG-618M
Year 2014
Stock Number 4811
Table size 5.75" x 18"

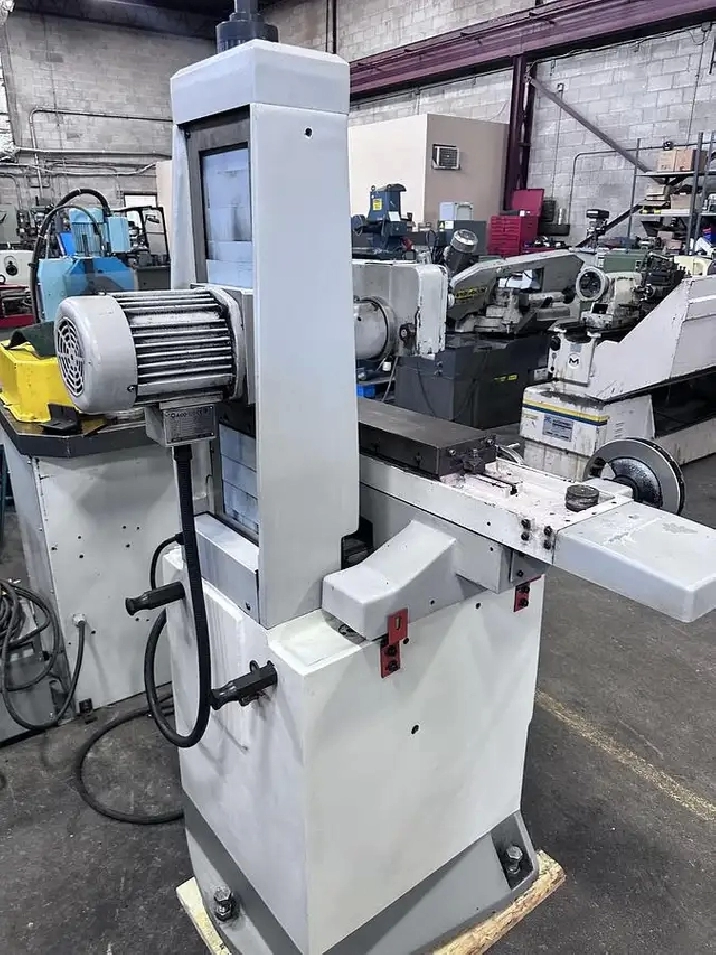

Spindle motor 2 HP
Spindle speed 3450 RPM
Max grinding width 6"
Grinding wheel bore 1.25"
Max grinding length 18"
Grinding wheel width 0.5"
Max workpiece weight 462 LBS
Approx machine weight 1480 LBS
Dimensions (l x w x h) 53" x 36" x 67"
Grinding wheel diameter 8"
Crossfeed travel (y axis) 7"
Longitudinal travel (x axis) 19"
Max distance (table surface-spindle) 18"
ELECTRICS 575V/3/60

Equipped With:
6" X 18" MANUAL MAGNETIC CHUCK
