Item number: 028401
-
Product Overview
Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread.
The design of this new lathe is a great innovation, it solves many disadvantages of other lathes in the past, greatly improves the processing accuracy and processing efficiency, can save a lot of precious time for you, choose it you will not regret!!
-
Product Parameters

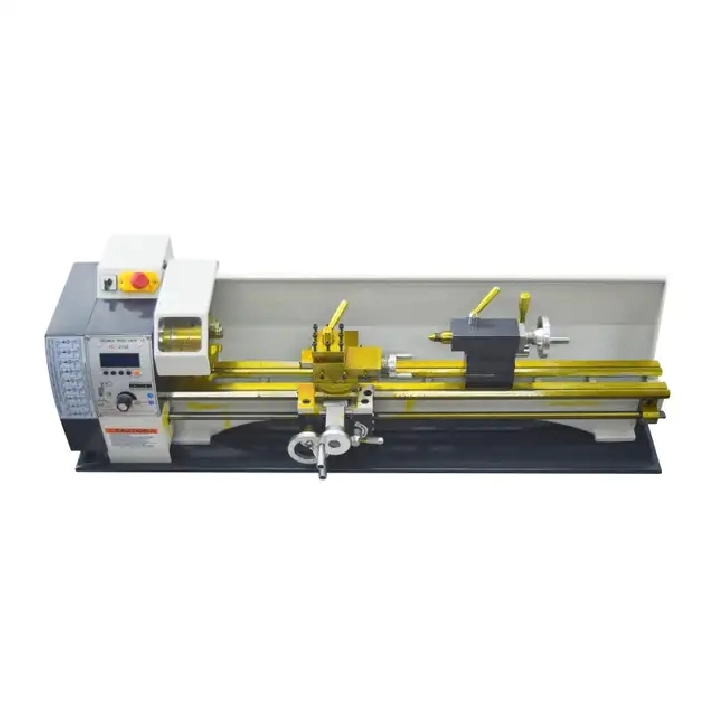

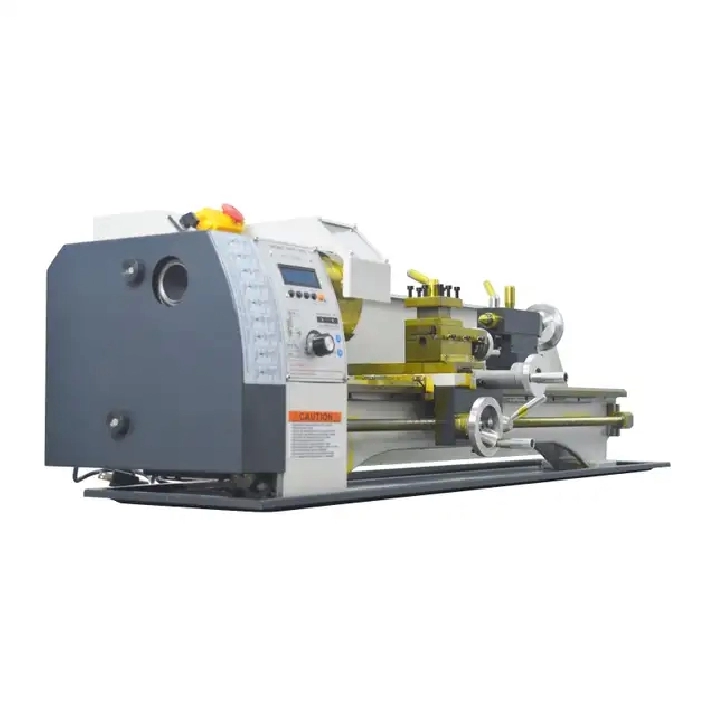

Model: RC-210E
Voltage: AC110V 50/60Hz(Brushless Motor)
Power: 900W(1.2HP)
Length of center: 31.50"(800mm)
Swing Over Bed: 8.27"(210mm)
Rotary diameter of tool rest: 5.51"(140mm)
Spindle bore: 1.50"(38mm)
Diameter of chuck: 4.92"(125mm)
Width of lathe bed: 3.94"(100mm)
Thread standard: Metric/imperial/customized
Turning delay start time: 1s-30s
Number of Spindle Speeds: Infinitely variable speeds
Range of Inch Threads: 10-44T.P.I
Range of metric threads: 0.5mm-3mm
Spindle taper: MT5

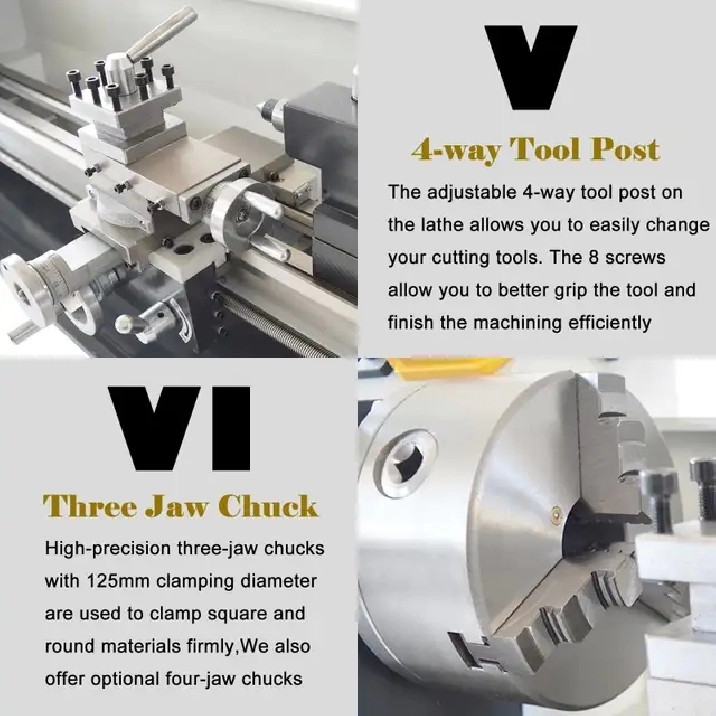

Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of the spindle: 0.01mm
Automatic feed range: 0.01mm-0.4mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.16"(55mm)
Maximum stroke of middle plate: 2.95"(75mm)
Maximum stroke of bottom plate: 26.77"(680mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)

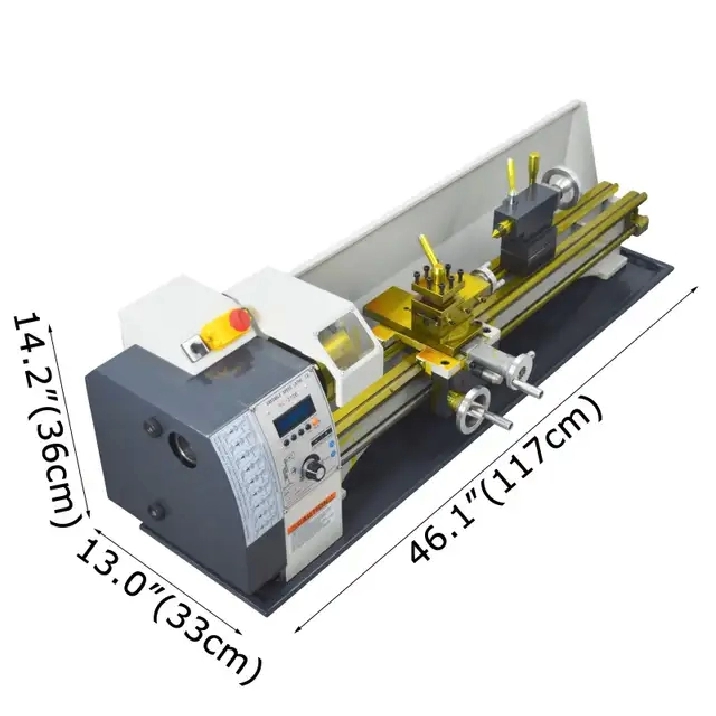

Package size: 49.2"*18.9"*18.1"(125cm*48cm*46cm)
Net weight/Gross weight: 152LB(69kg)/187LB(85kg)
Note:The yellow on the lathe bed and chuck is antirust oil, Belong to normal phenomenon,which can be wiped off with oil or gasoline before use.Be sure to clean the anti-rust oil on the chuck before starting and turn the chuck by hand to prevent the chuck from jamming and causing the circuit board to burn out!!
-

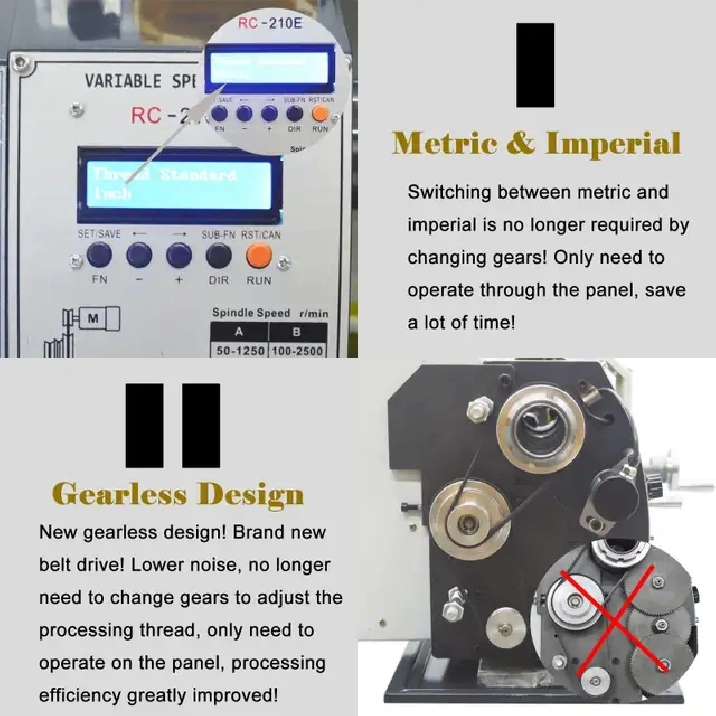

- It can automatically switch between metric and inch systems without changing gears.

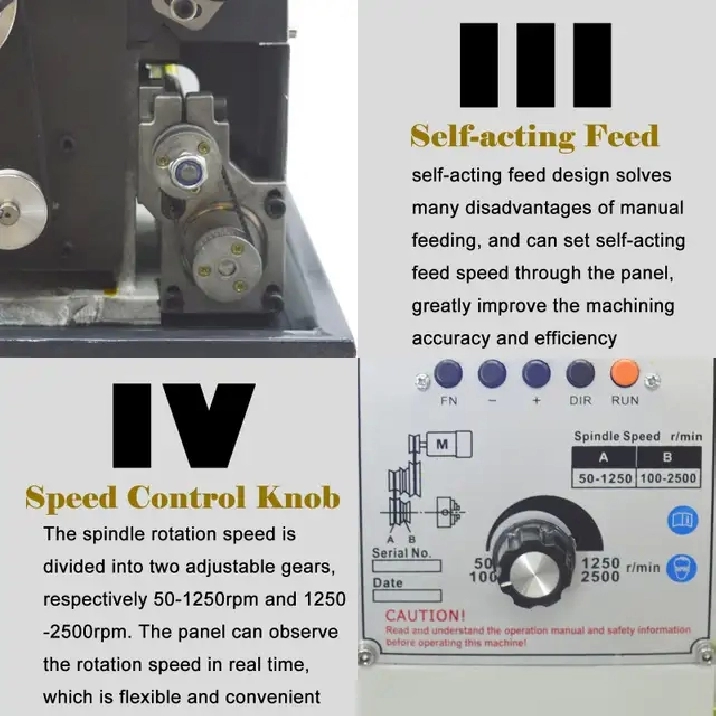

- In the X axis direction can be automatic feed, no manual; Automatic feed speed can be adjusted; Automatic feed range reached 0.01mm-0.4mm!
- There are three ways to start turning: manual start, automatic start, delay automatic start.
- Indexing function: you can switch the direction of turning tool through "DIR" button; Angles can be cleared with one click.
- Control panel set parameters after saving and start, can realize reciprocating turning function and turning thread.
-

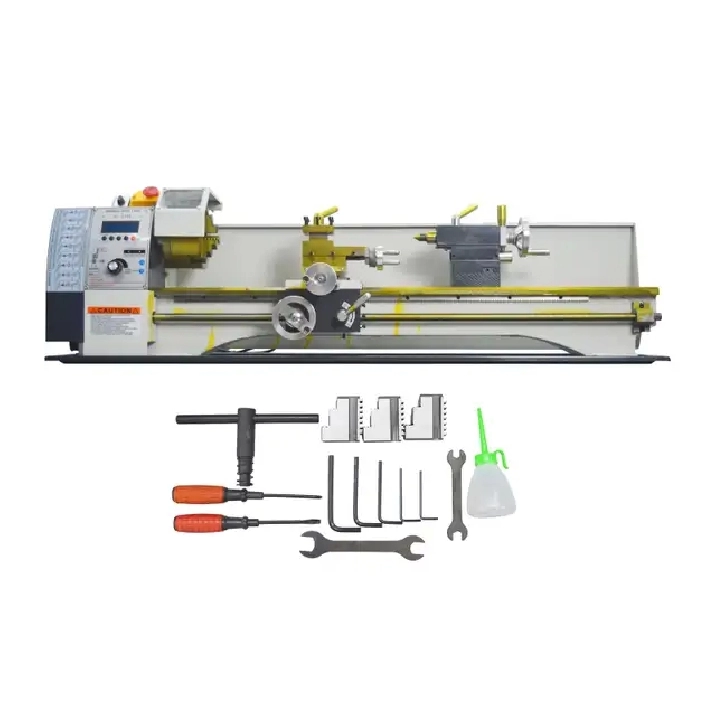

Item Included(028401)
RC-210E lathe *1 Base oil pan *1 English manual *1
Oil can *1 Hexagon wrench *5 Open spanner *2
The screwdriver *2 Chuck jaw *3 Chuck spanner *1
-
