Item number: 025443
-
Melt flow indexer is a kind of instrument testing the melt flow rate of plastic polymer at high temperature based on GB3682-2000 ISO 1133,ASTM D1238 test method. It is not only suitable for high melting temperature engineering plastics such as polycarbonate, polyarylsulfone, fluorine plastic and nylon but also suitable for some other low temperature plastic products which are made up of polyethylene (PE), polystyrene(PS), polypropylene(PP), ABS resin, and polyoxymethylene. So it is widely used in the plastic production, petroleum and chemical industry and the scientific research institutes.

Parameters:

Measuring method: Mass method
Extruding and discharging part:
Outlet diameter: Φ2.095±0.005mm
2.Outlet length: 8.000±0.025mm
3.Charging cylinder diameter: Φ9.550±0.025mm
4.Charging cylinder length: 152±0.1mm
5. Youdaoplaceholder0 rod diameter: 9.475±0.015mm
6. Youdaoplaceholder0 rod length: 6.350±0.100mm

Temperature Range: 50℃ - 400℃

Temperature precision: ±0.2℃

Ambient temperature: 10℃-40℃

Relative humidity of environment: 30%-80%
Used in an environment without corrosive media, strong air convection, vibration, or strong interference.

Correct installation on a solid foundation

There is no strong magnetic field in the use environment, and no strong convection in the air

Power supply: AC110V±10%, 60Hz
Power: 0.5KW

Working conditions:

Ambient temperature: 10 ℃ - 40 ℃

Ambient relative humidity: 30% - 80%

In an environment free of vibration and corrosive media.

Correctly installed on a solid foundation

There is no strong magnetic field in the operating environment, and there is no strong convection in the air

Product Features:

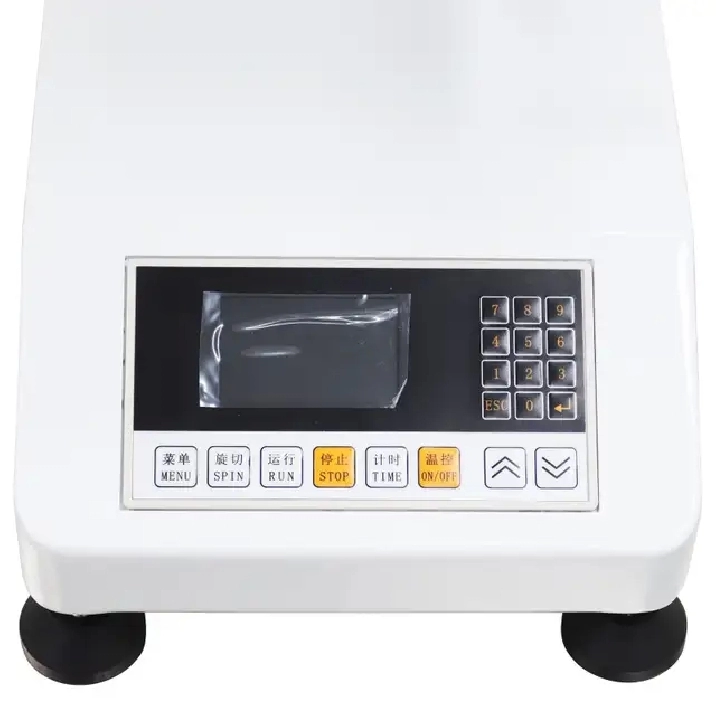

Button screen, convenient and practical.

Testing methods
This model only supports mass testing.
MFR: mass method
Automatic cutting
Hand automatic cutting integrated, with cutting time and interval set by customers at will.

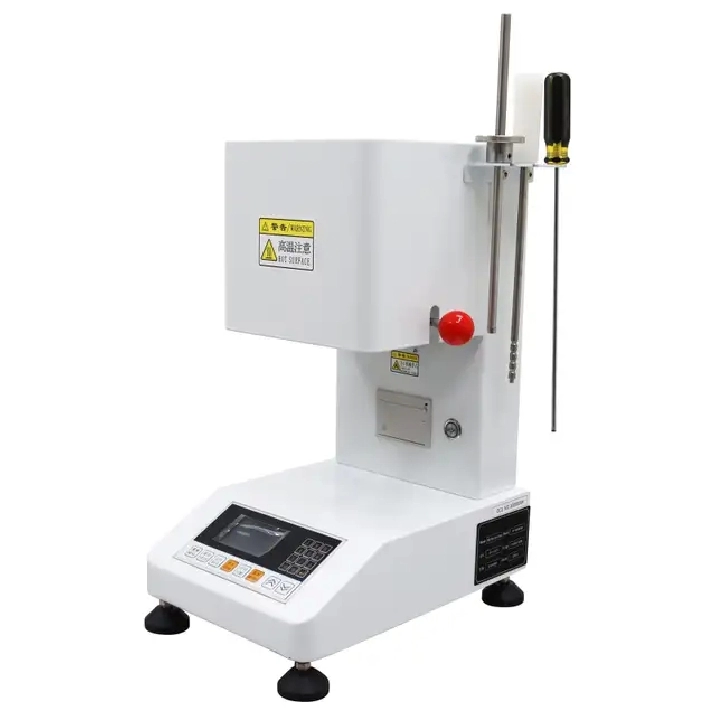

Equipped with a tool rack
The machine is equipped with a tool rack for easy storage and flexible operation.

Automatic calculation and printing
Built in dedicated software, automatically calculates results, and data can be directly printed.


Item Included: 025443
1*Automatic Melt Index Meter*1
