Item number: 056361
-

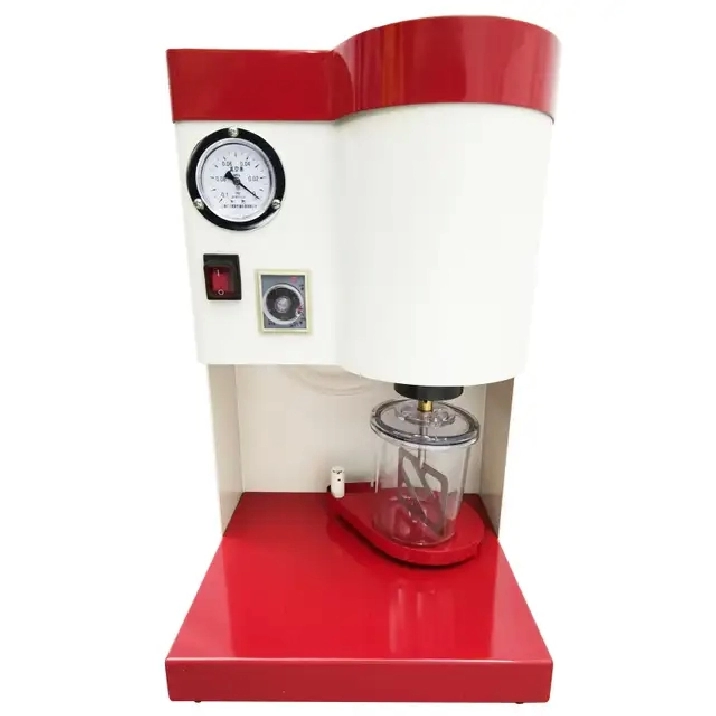

This negative pressure vacuum mixer is the main device used by dental technicians to blend embedded materials (phosphate, etc.) into horizontal materials (AGAR, gypsum, etc.). It is done in a vacuum and is completely free of bubbles, thus improving the fillability of the material and the density of the model.

Parameters
Voltage: AC110V
Power: 150W
Sub pressure: ≤0.07Mpa
Effective volume: 500ml

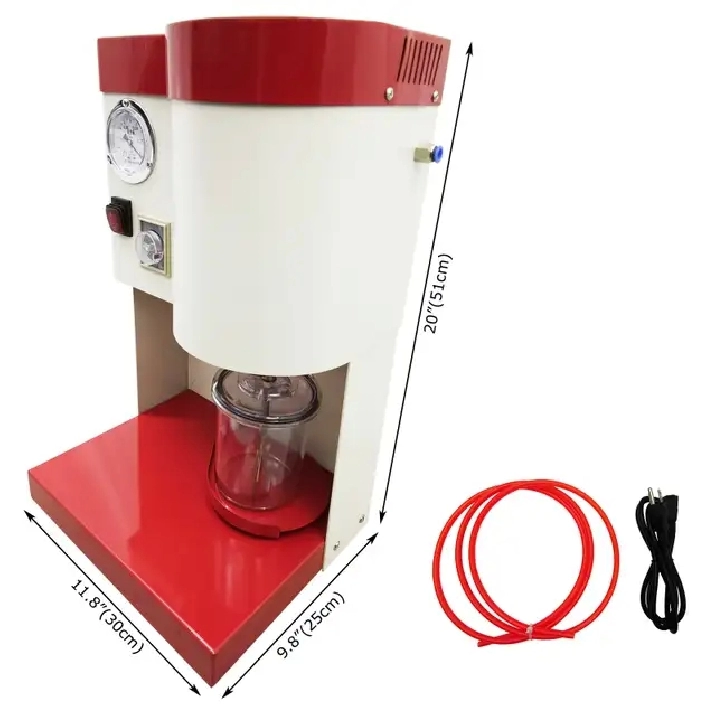

Package size: 15.6 * 12.8 * 22.4 "(39.5 cm * 32.5 cm * 57 cm)
Net weight/Gross weight: 26.7lbs(12.1kg)/33.1lbs(15kg)
Caution: In addition to the power supply, this product also needs to be connected to the air pump or air compressor.

Product Feature & Advantage

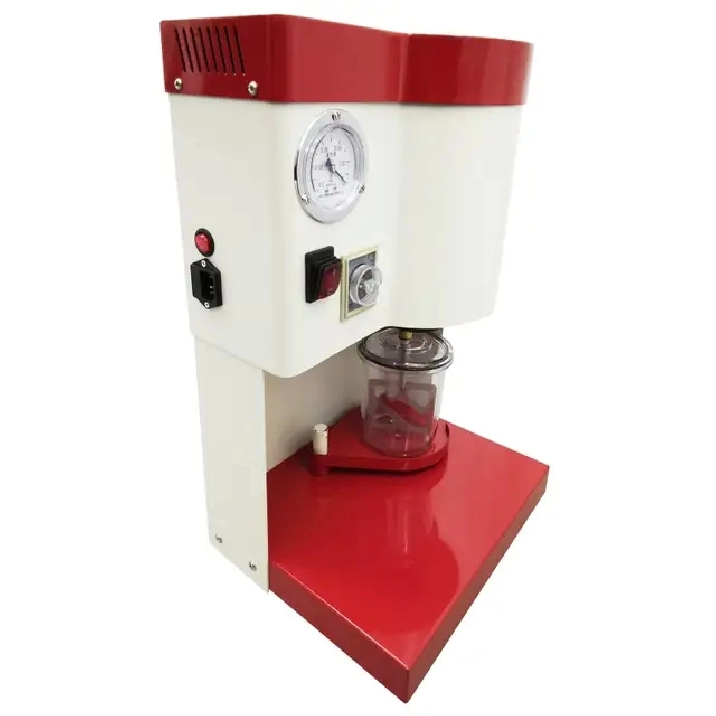

a. Pressure Gauge
The pressure gauge on the panel can monitor pressure changes at any time, with timing function, easy to operate.

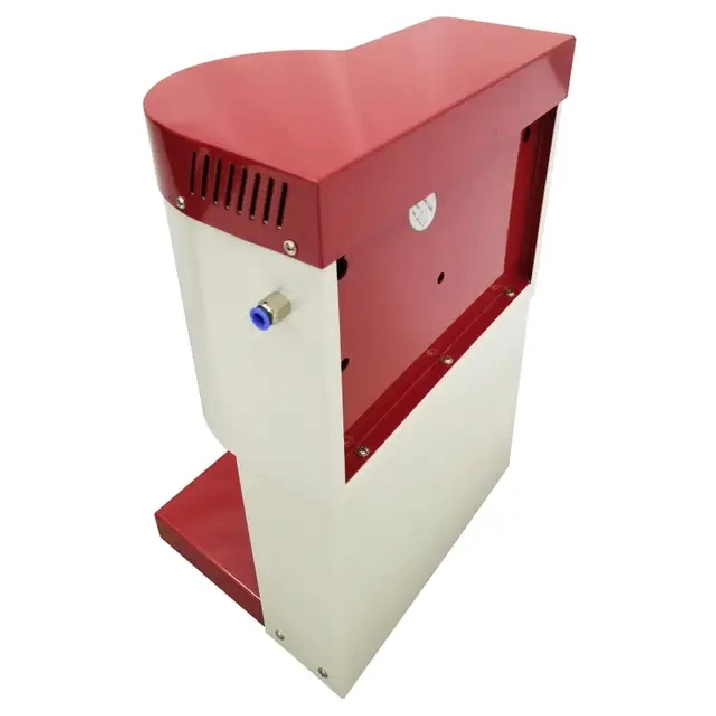

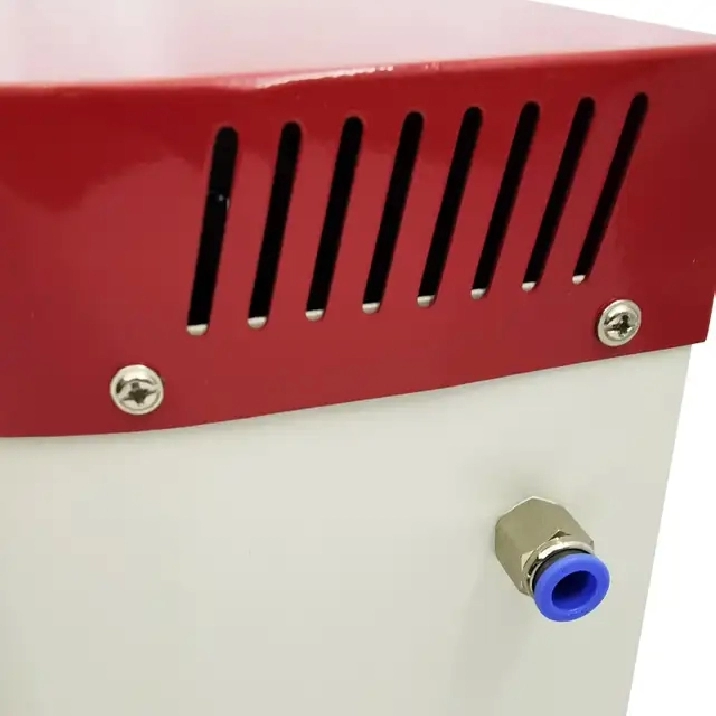

b. Vent Hole
There are some vents on the mixer, which can timely discharge the excess heat generated by the mixer, prevent the temperature from being too high, and protect the mixer.

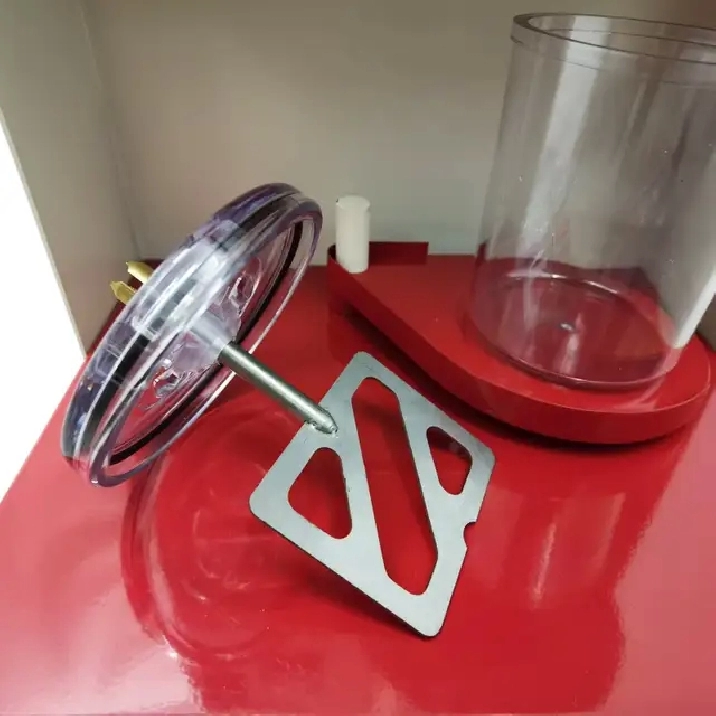

c. Mixing Cup
The mixing cup comes with a sealing ring to ensure that the liquid will not flow out during the mixing process, increasing safety and sealing. It is placed on a removable coaster for easier use.

d. Supporting Leg
Four rubber supporting legs at the bottom, which are non-slip, wear-resistant, good silence, can ensure the stability of the mixer, and can prevent water from entering the mixer from the bottom.

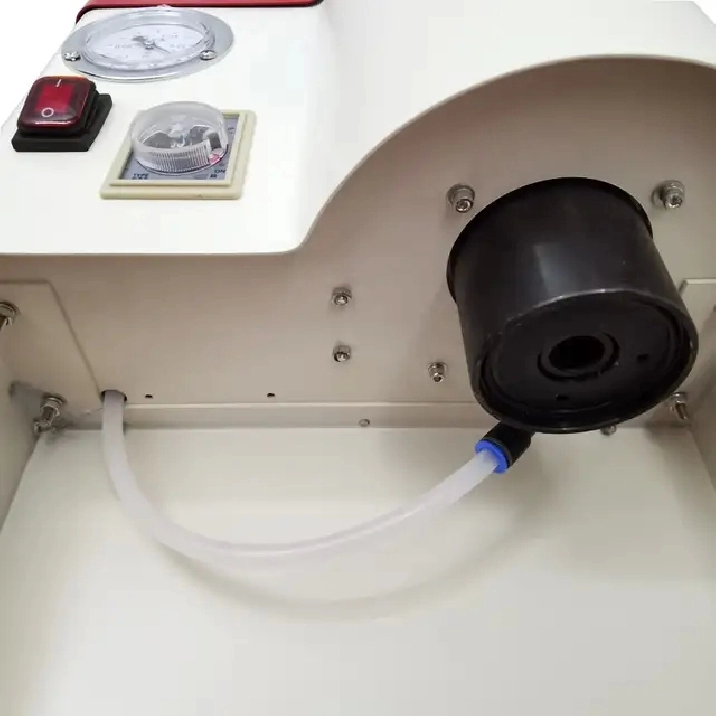

e. Vacuum Mixer
The tube is used to vacuum, as the mixing process is done in a vacuum state, the workpiece is free of bubbles, and firmness and compactness of the mold has also been improved.

- Vacuum mixer is an essential equipment for mixing and vibrating investment materials and molded materials in dental laboratory.
- It has the characteristics of high vacuum, strong mixing force, no bubbles, uniform mixing material and high density.
- Gypsum vacuum mixer adopts high-quality precision components, stable operation and long service life.
- Pressure gauge can monitor pressure changes at any time, simple operation and timing function.
- Note: the embedded material in the mixing tank should not exceed half of the volume, so as not to inhale the embedded material into the gas path, causing the gas path to be blocked.


Item Included: 056361
Gypsum Vacuum Mixer *1
American Standard Plug *1
Tracheal *1
Stirring Cup *1
Stirring Spade *1
