Item number: 160903
-
Bag making, filling, sealing, cutting and bags counting can be done automatically.
The paste liquid filling machine adopts microcomputer control, set by an induction signal processed by a microcomputer, and, simultaneously.the cursor positioning, automatic detection and automatic fault diagnosis and display on the screen.

1.This product is suitable for all kinds of sauces, pastes, chili sauce,oils and liquids with tiny particles. It can help you fill the product well.

2.The filling volume range is between 10ml - 100ml. And the machine should connect air compressor for working. First time when you use the machine , you should weigh the weight of output by adjusting and make sure the volume you want.
3.This series of models need to be equipped with external air compressor, air compressor exhaust should not be less than 0.1m3/min, equipped with pressure should be able to adjust to a range of 0.4-0.9Mpa.

(Note1:We only sell machines, do not match air compressors, customers need to buy their own.)

(Note2: If you are not sure whether the material can be filled with this
machine, please consult before placing an order)


Product parameter:
Voltage: 110V
Power: 0.5KW

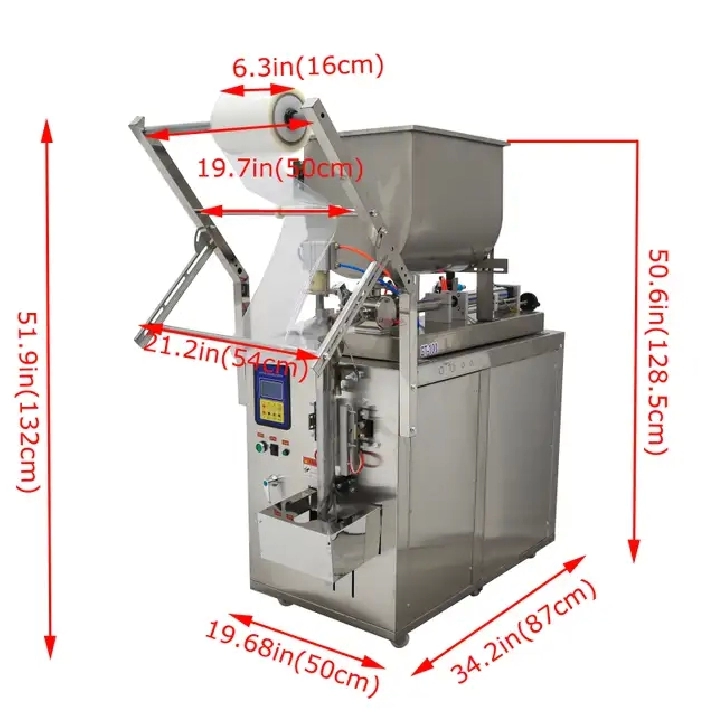

Size: 87*50*132CM(34.25 "*19.68" *51.9 ")
Filling and packaging speed: 20-30 bags per minute
Material: stainless steel
Packaging: export wooden box
Applicable packaging consumables film width: 6.3in (16CM)

Feature:
This molding machine is replaceable. If customers need to replace packaging with different specifications, they need to replace this molding machine. We standard it as a molding machine suitable for 16CM width film. If you have any needs, you can purchase it from us or purchase it yourself.

Stainless steel hopper

Equipped with a horizontal mixing funnel, it is aesthetically pleasing and practical, effectively preventing corrosion and wear, ensuring safety and hygiene.

The barometer and the air inlet, the air inlet is connected with the air compressor, easy to operate, stable.

Magnetic switch, the use of hand wheel rotation to adjust the filling amount, easy to operate.

Adjust the rocker filling precision
Hand handle, you can adjust the amount of filling, easy to operate.

High quality cylinder
This machine is equipped with high-quality air cylinder, which can change the filling speed by adjusting the inlet and outlet flow through the regulating valve.



Detachable clasp, one button cleaning, no screws. Easy to clean, save time and effort.

High quality piston, PTFE piston, wear resistance, good sealing, durable.

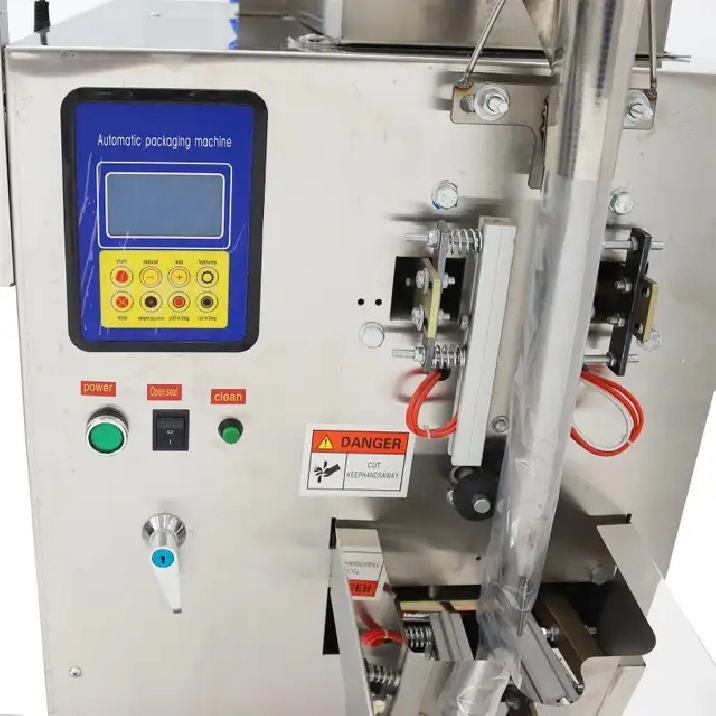

Intelligent control panel (panel color random)
The operation is simpler, the measurement is more accurate, and the upgrade and maintenance are more convenient. Equipped with counting function, convenient for work counting.

One click cleaning
The machine is equipped with a one click cleaning function to automatically clean the internal channels, making it suitable for switching between multiple material packaging in one machine.

The machine is equipped with wheels, making it more convenient to move. (The color of the wheels is random)

Packaging consumables must pass through black wheels, otherwise they cannot function properly.

This machine is equipped with a protective cover to prevent accidental injury after heating the heating block.

Adjust the speed of the cylinder moving piston rod:
The end near the moving rod (away from the handwheel) is the outlet control valve (Adjust the speed of the cylinder moving rod to push out the material);
The end away from the moving rod (near the handwheel) is the intake control valve (Adjust the speed of cylinder moving rod recovery).

Clockwise downward, the discharge speed becomes slower;
Counterclockwise upward, the discharge speed becomes faster.

Product safety precautions:
To ensure safe production, please read the following precautions carefully:
1. Use a power supply and air source that conforms to the requirements of this machine . The stability of the air source must be maintained under continuous working conditions.
2. Before disassembling, washing or repairing this machine, please be sure to turn off the air source and power supply first.
3. Under no circumstances should the entire machine be directly washed with water, as there is a risk of electric shock and damage to electrical control components.
4. After the power switch is turned off, there is still voltage in some circuits in the electrical control of this machine. When repairing the control circuit, please be sure to unplug the power cord.
5. Do not approach the vertical and horizontal seals when the machine is working to prevent burns.
6. Do not put your hand on the central axis of the cylinder during the work process, pay attention to pinching your hands.
7. Before using materials for filling, it is best to clean the machine with detergent first, and then clean it with clean water, so as to avoid oil stains or foreign materials and materials mixing, which will lead to waste of materials and damage to the machine.


Item Included: 160903
1*110V 10-100ml Automatic quantitative filling machine with horizontal mixing hopper
