Item number: 006015
-
YouTube video: https://www.youtube.com/watch?v=8ovjKmG7gsg

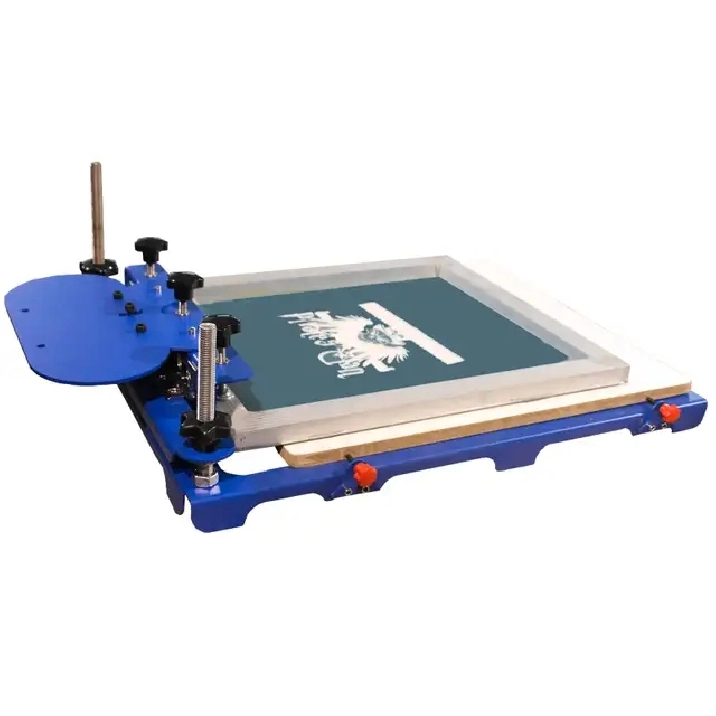

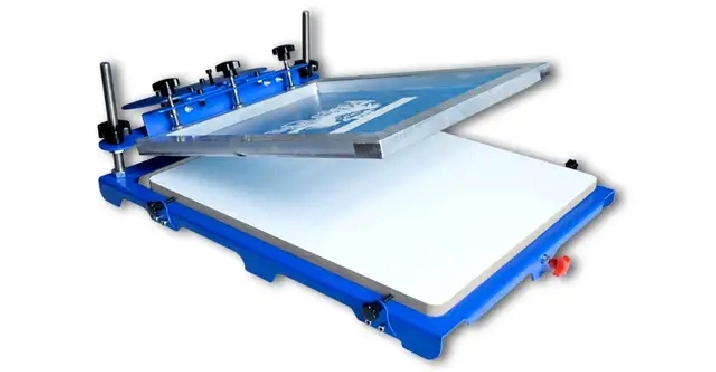

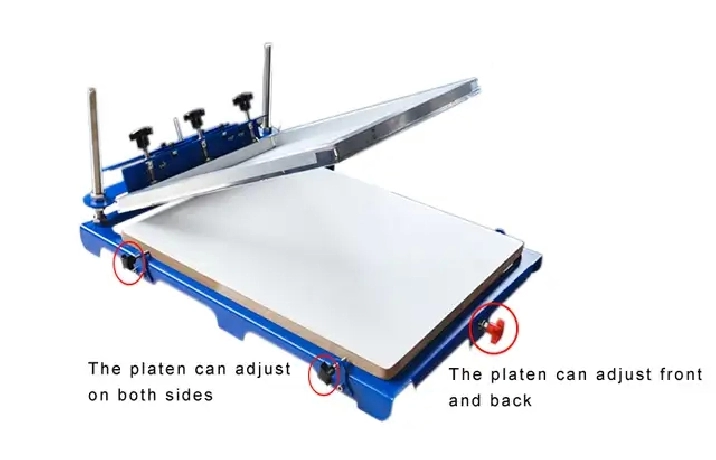

ASC2420 micro-adjustable screen press with large printing platen is one of our newest model. It has kept functions of traditional one, such as adjusting platen right and left, back and forth; adjusting height of screen chucks for suiting different substrates, etc. In addition, it has several special features.

Please pay attention to the pallet size!

Based on the need of the consumers and market, our company R&D the simplyeasy screen presses with delicate and unique design, easy detachability and installation, simple operation, low cost but also having the similar working principles and functions as other screen printing equipments , which is the best choices for new hand to start a screen printing business.

Parameters

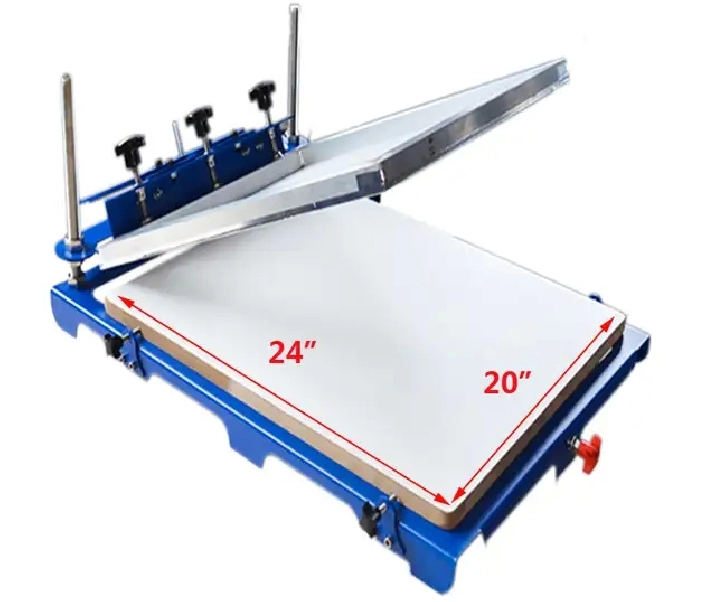

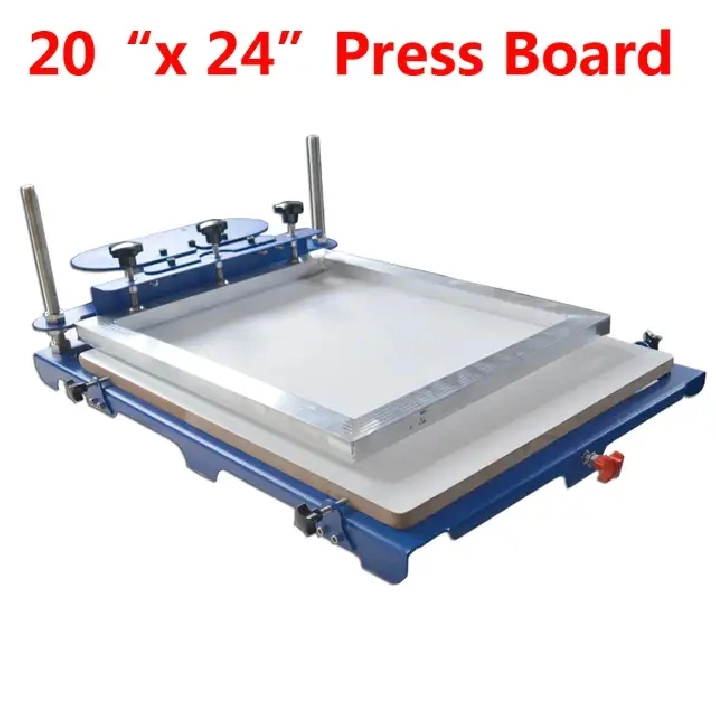

Platen sizes: 24"x20"x0.7" (620x520x18mm)
The Length of screen clamps is 14.5" (370mm).

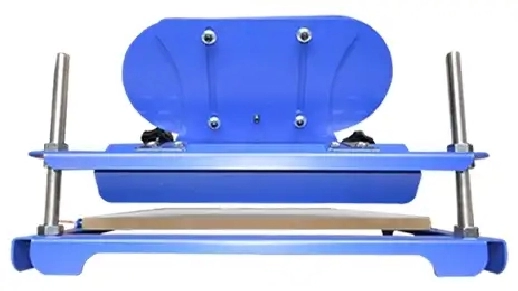

Adjustable range of up-and-down screw bar is 4.3" (110mm).
Net Weight: 40Lb (18kg)
Shipping Weight: 46Lb (21kg)
Machine sizes: 30"x22"x10" (76x56x26cm)
Package sizes: 32"x24"x6" (83x62x14cm)

Main Features

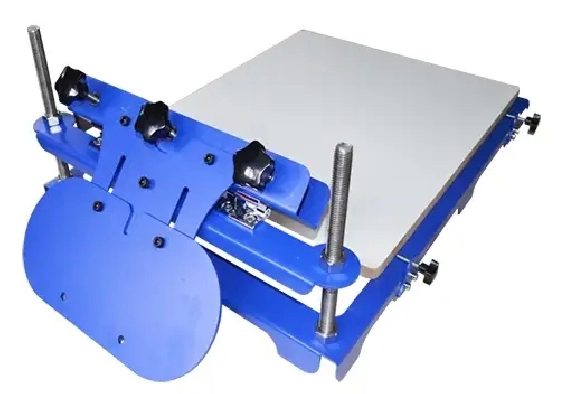

1.Specially designed sliding-adjustable disc gravity and gravity hole devices for extra heavy frames.
2.The equipped platens are much bigger than the normal ones, which is especially suitable for signboard and spa signage printing.
3.The platens are environmental and made of high density melamine materials, anti-distortion, water proofing, corrosion resistance and easy to clear.
4.Extendibility: if need larger printing area, only remove several bolts to change another bigger platen.
5.Advanced electrostatic spraying and electroplating, durable, easy clear and no rust.
6.Excellent packaging

Item include: 006015
1 *screen printer with oversize pallet

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
