Item number: 010034
-

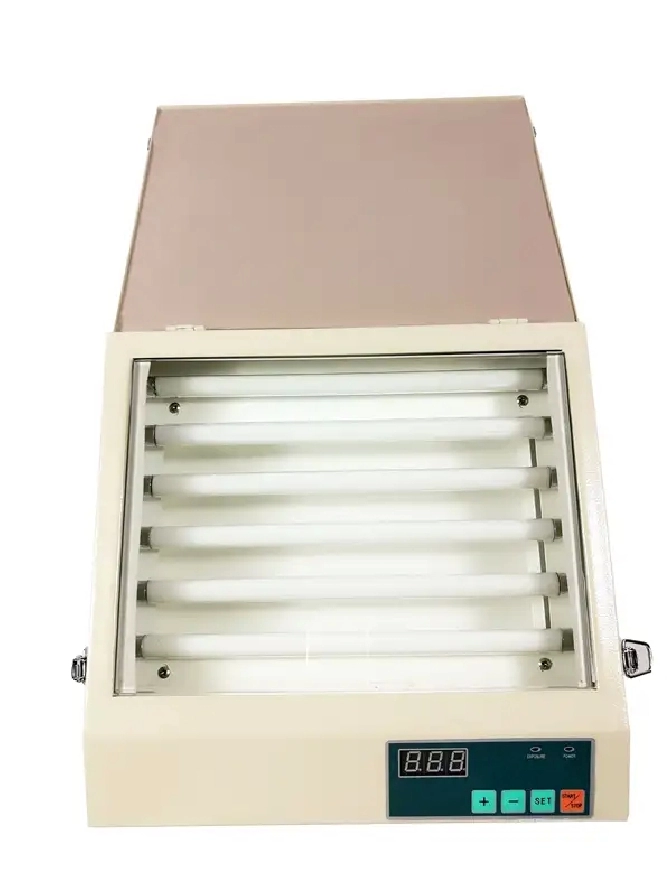

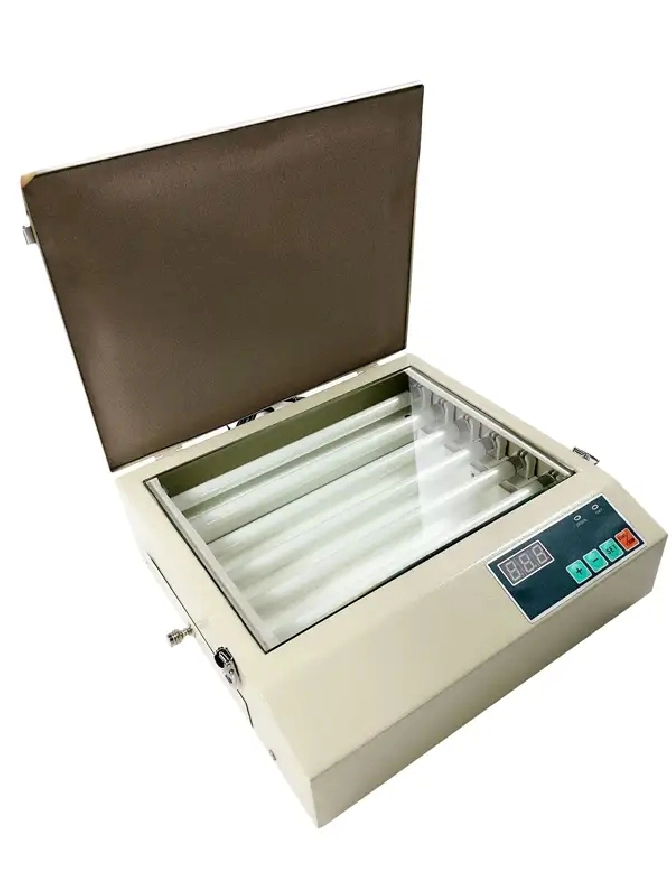

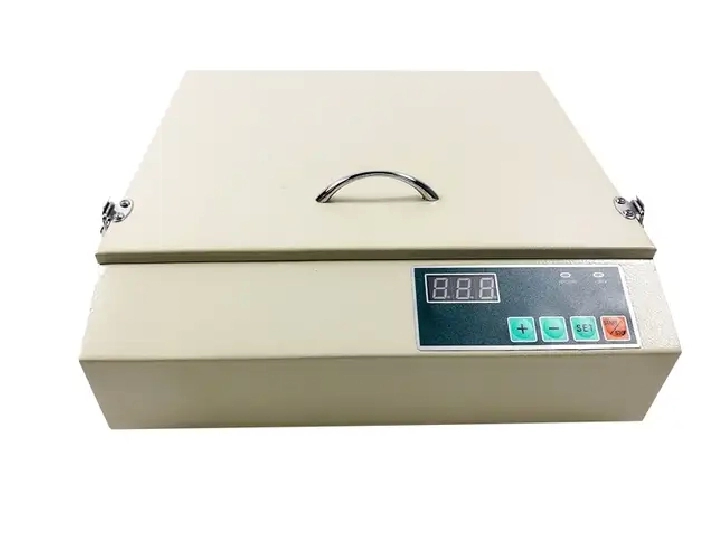

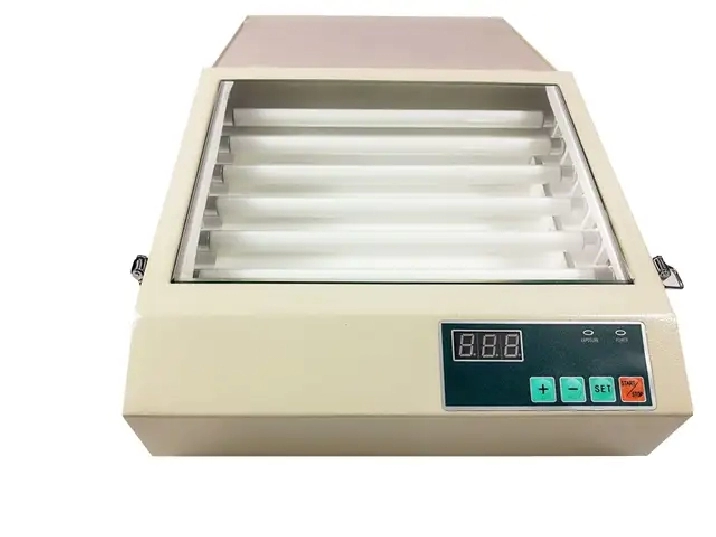

10.2"x8.3" exposure unit is an equipment used for small area exposure, 10.2"x8.3" Exposure unit is an equipment used for small area exposure, especially suitable for exposure of small size plates.

Scope of Applications:
PCB's
Hot Foil Polymer Plates making
Letterpress Polymer Plates making
Pad Printing Plates making
Sandblasting plate making
Glass etching Stencils making
Rubber Stamps plate making
Screen printing plate making

Main features:
Voltage: 110 V
Exposing area: 10.2"x8.3"(260x210mm)
Digital Auto-Off timer with Auto-Repetition
6 UV fluorescent tubes
10.2"x8.3" exposure capacity
Heavy duty extruded steel frame
User-friendly desktop design with long-term life span

Parameters:
Time Range: 0-330 seconds
Light power: 48W (six 8W UV fluorescent bulbs)
Machine size: 12.6"x12.5"x4.3"(320x317x108mm)
Package dimensions: 14.6"x14.6"x5.5"(370x370x140mm)
Net weight: 8.4Lb(3.8kg)
Shipping weight: 10.6Lb(4.8kg)

Item included: 010034
1 set of 10.2"X8.3" 110V Digital Drawer Exposure Unit
