Item number: 056364
-
Product Overview
This product is based on servo motor as power electric tapping machine, widely used in all walks of life all kinds of large and small machine and all kinds of materials, parts of molds and wood tap wire processing, the product is well-made, quality first-class, was deeply loved by the masses of customers and praise, are you tapping processing of choice.

Product Parameters
Bearing scope of thread: M3-M20
Voltage: AC220V
Power: 1.6HP (1200W)
Chuck type: GT12
Working radius: 39.37" (1m)
Speed: 1-500RPM
Torque: 40N.m
Collet: M3,M4,M5,M6-8,M10,M12,M14,M16,M18,M20
Color: White

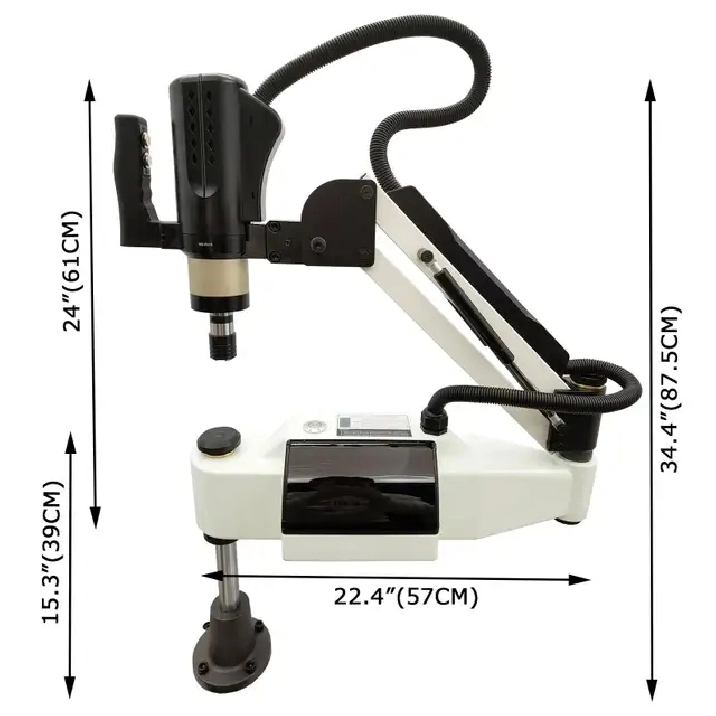

Package size: 29"*28"*10" (74CM*71CM*26CM)
Net weight/Gross weight: 56LB(25.3KG) / 75LB(34KG)
This product does not include workbench, if you need workbench, please contact us.

Product Features & Advantages
1.Heat Emission
The mechine is designed with heat dissipation holes, which can timely discharge the excess of work, generated in the process of work, prevent overheating and protect the machine.
2.Limit Slider
A limit slider is designed on the support rod, which can flexibly adjust the vertical height of the tapping machine from the horizontal table, and has strong adaptability.
3.Forward and Reverse
The handle of the machine head is designed with forward and reverse buttons, which is comfortable to hold, and can be tapped during forward rotation. After tapping is completed, press the reverse button to exit the tap.
4.Planetary Reducer
The planetary reducer is oil-proof, anti-collision and dust-proof, wihch can effectively support the long-term operation of the motor, reduce the motor speed and increase the torque, thereby reducing energy consumption.
5.Smart Touch Screen
The newly upgraded smart touch screen is easy to set and responsive, with two languages, Chinese and English, and can display the torque in real time; the protective cover design can protect the touch screen.
6.Direction Adjustment
By adjusting the screws on both sides, the tapping direction of the machine head can be adjusted, which can realize vertical tapping and horizontal tapping, and can rotate 360° in the vertical plane, with high efficiency.
7.Anti-slip
The bottom is equipped with anti-slip foot pads, which maintain stability during work, reduce vibration and sound, and will not slide, which is safer.
8.Stable Support
Advanced mechanical design, a variety of processes using mold castings,the overall rigidity is strong, durable, non deformation, beautiful appearance. It can realize thevertical and horizontal work of complex and heavy workpiece, locate quickly, and process accurately.

- New upgrade 1200W High power, high speed 1-500rpm.

- Stepless speed change, manual, automatic, linkage three modes of work, whatever you choose.

- Automatic mode can effectively control the depth of tapping, without theoperation button, automatic control by depth controller.

- Repeated positioning fast, tapping speed, high production efficiency.

- The preset torque of the machine plus the double protection of the torque chuck can prevent the tap from breaking.

- The rotating parts are made of graphite copper sleeves and bearings, which are flexible in rotation, more wear-resistant, and have high tapping accuracy.

- Wide range of processing materials, can process aluminum, copper, A3 steel, 45 steel, cast iron, pig iron, Q235, S136, mold steel, 718H,40Cr, stainless steel and other materials.

- A limit slider is designed on the support rod, which can flexibly adjust the vertical height of the tapping machine from the horizontal table, and has strong adaptability.

- By adjusting the screws on both sides, the tapping direction of the machine head can be adjusted, which can realize vertical tapping and horizontal tapping, and can rotote 360° in the vertical plane, with high effciency.


Item Included: 056364

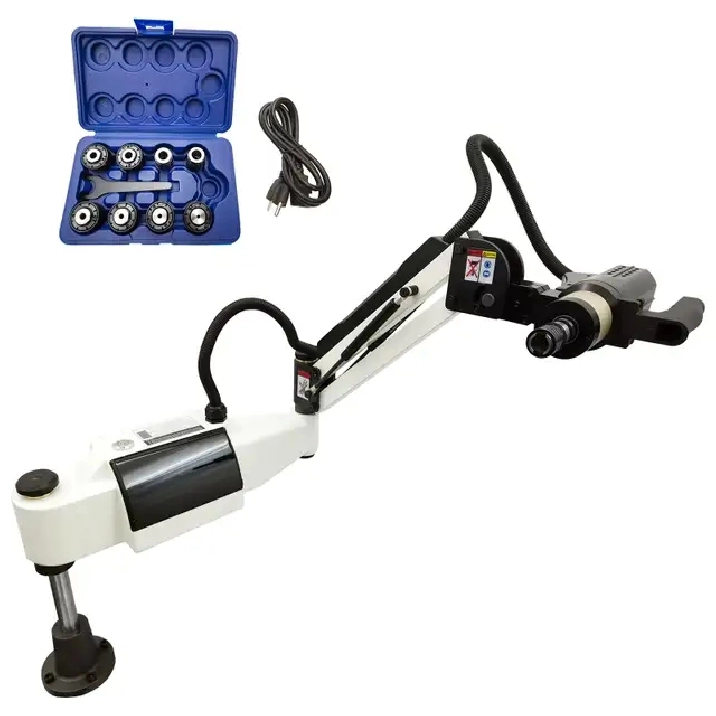

Tapping machine *1 Support bar *1 Tap chuck *8
Collet wrench *1 Fixing screw *4 English manual *1
