Item number: 006580
-
Application:

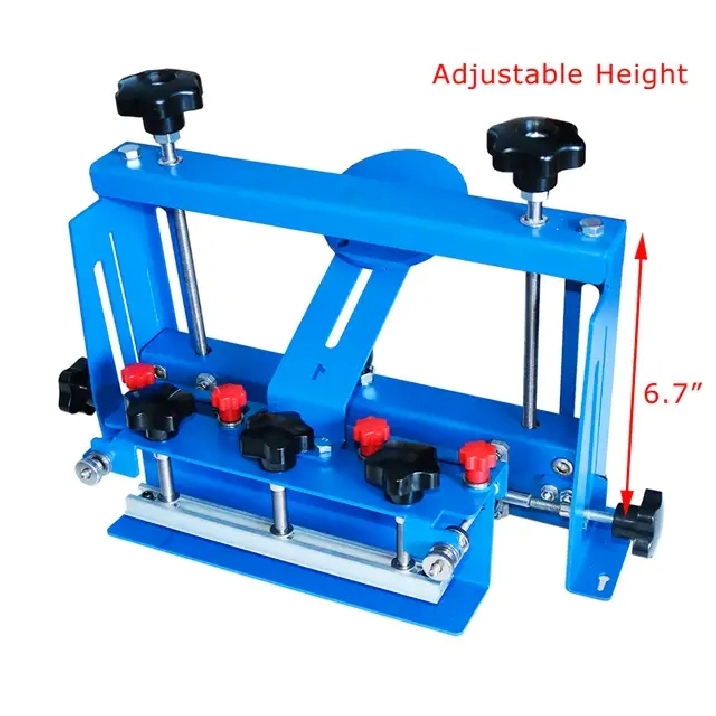

This item is a three-directions micro adjustable screen printing head; It can be adjusted through the knob up and down  in 6.7 inch , forward and back within 1 inch, left and right in  1 inch.
Features:
With the screws under the balance frame, the lifting angle and height of the screen frame can be adjusted as required.

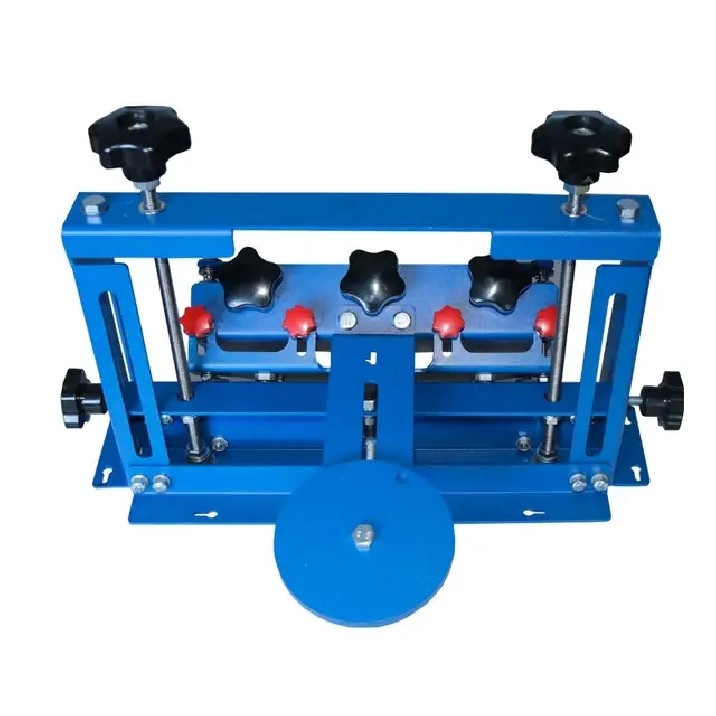

This machine is equipped with 2 gravity balance plates, which can be installed individually or together according to the request. The gravity balance plate can move forward and backward in 4 inch.

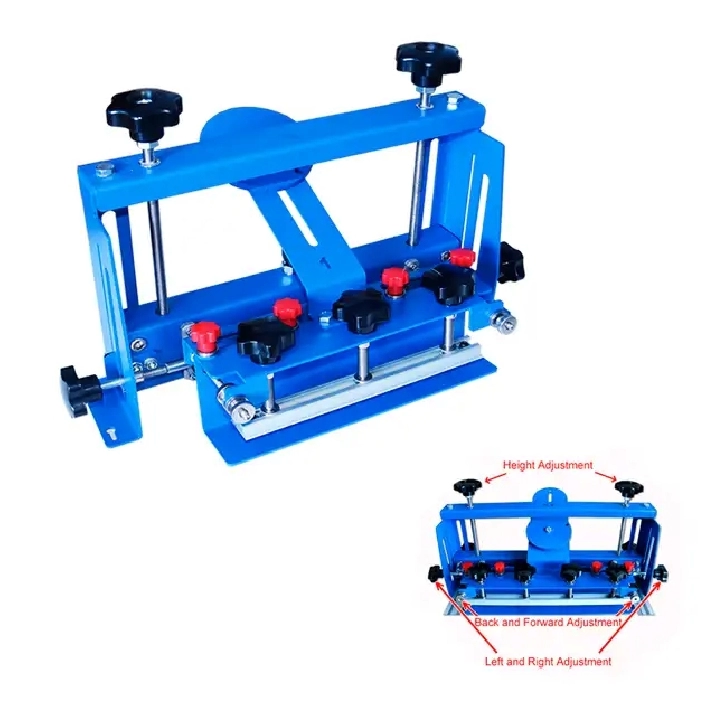

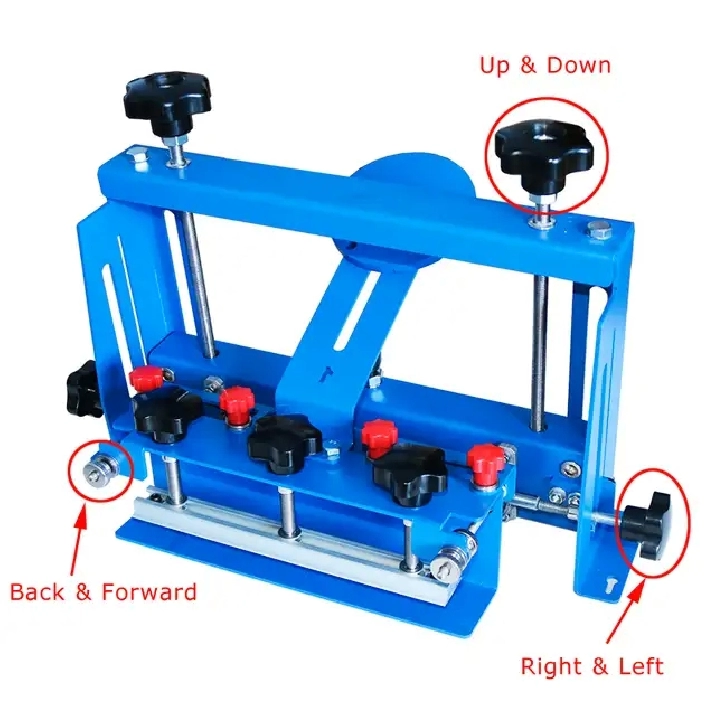

Micro adjustment operation:
Height adjustment:  Place the screen frame flat on the platform. According to the substrate height or printing requirements, rotate the handle up & down to reach an appropriate height, then lock the height with the two rear positioning handles.
Left and right adjustment:  loosen the handle on both sides of the press, and rotate the handle to move slightly left and right as required, after adjustment tighten both handles.

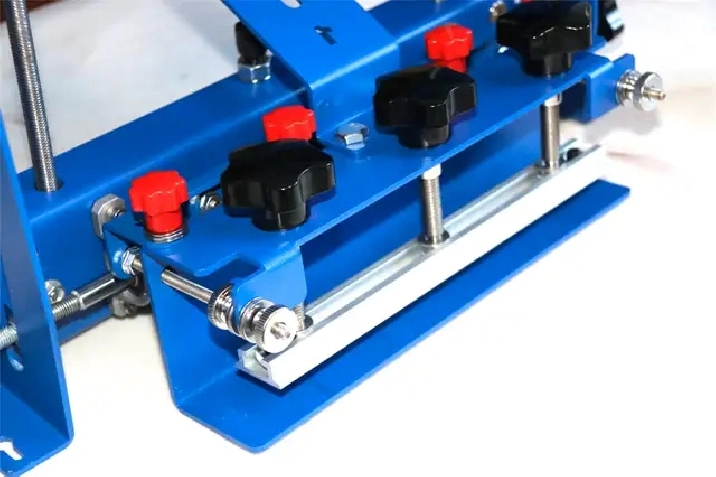

Back and forward adjustment:  First, slightly loosen that four red knobs overhead the clamp, then loosen the metal knobs on both sides of the clamp and move front and rear as required. After adjusting, tighten the metal knobs and four red knobs on the top.
Product Parameter:
Clamp size: 11" x 3" (width x height)
Suggest max screen frame size: 13" x17" x 2"
Packing: wooden case
Item included: 006580
1 Set of Precision Micro-registration Screen Printing Clamp
