Item NO.#022083

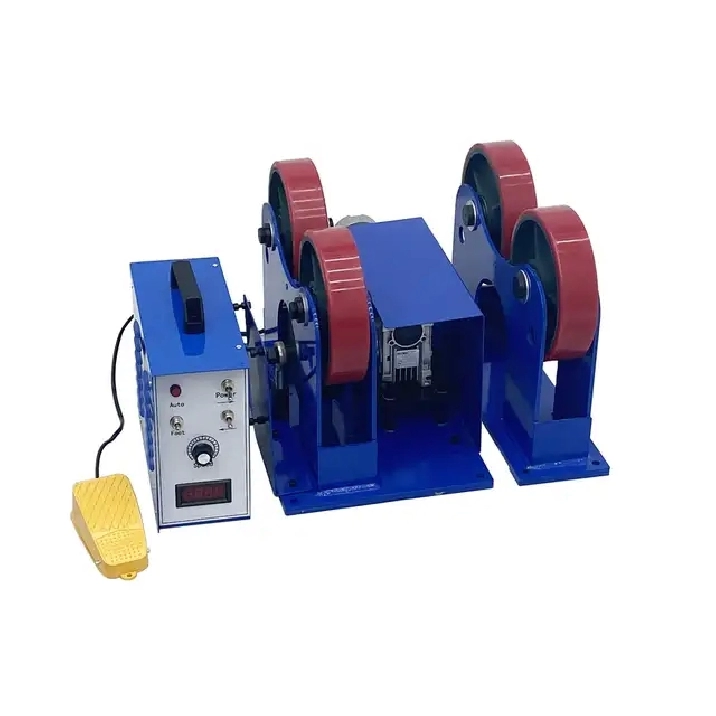

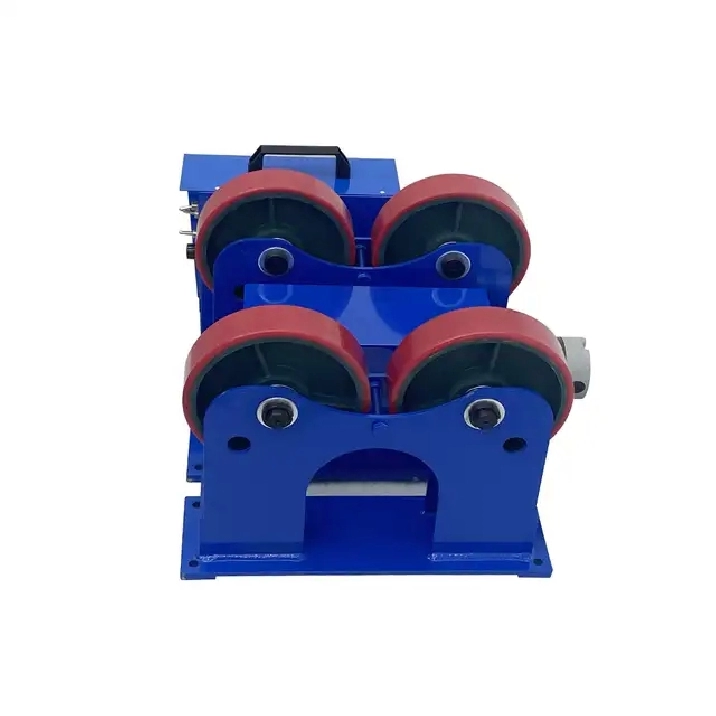

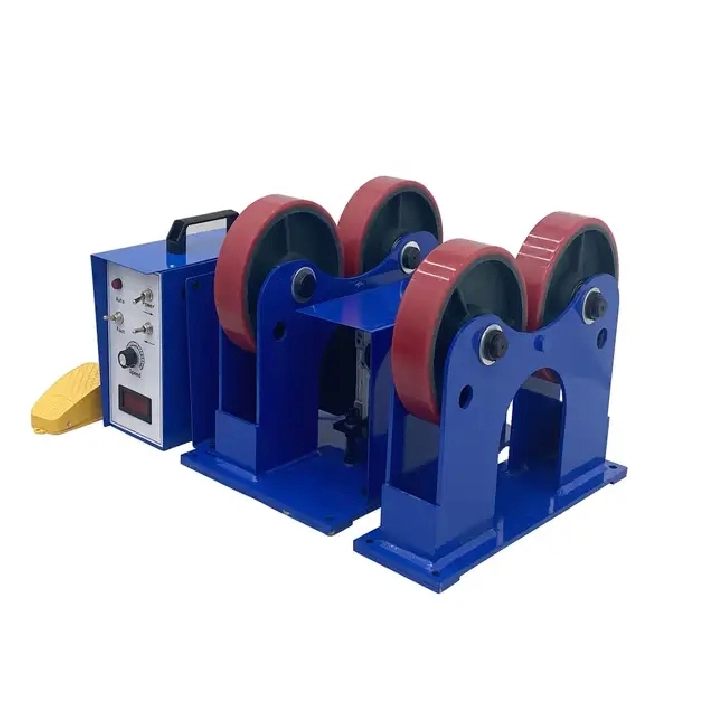

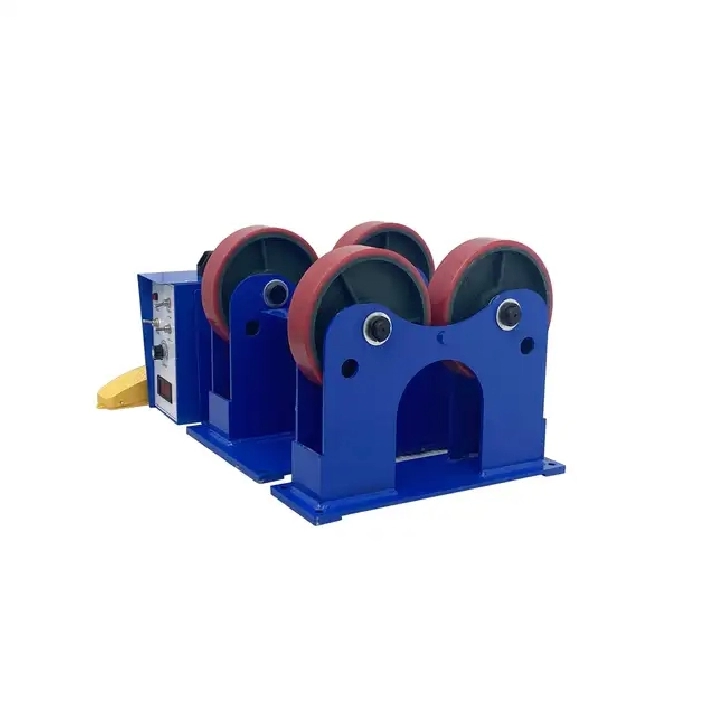

Connected Welding Roller Rack is professional welding assistant equipment, can be matched with a welding operation machine,a submerged arc welding machine, etc. The machine is mainly applied to welding of a pipeline including inside and outside of the pipe.

Parameter
Model XH-1T-A
Working Voltage AC 110V 60Hz
Power 120W
Load Capacity 2200 LBS
Speed Range 100～1000 mm/min
Diameter Range 50～600mm
Roller Type 50mm(W)×200mm(D)
Operation Method Control Box Operation

Features
Digital Display Control System
　
A control box and a pedal pump for speed control. And they can save you a lot of time and energy because you can control the machine with several simple steps.

The control box adopts digital display and it can be hung on the left side of the machine for easy operation.

It can show the speed of the wheel.

Adjustable Roller
You can adjust the roller distance to suit different sizes of pipes.
Range: 50～600mm.
50-260mm Inner Hole
260-600mm Outside Hole

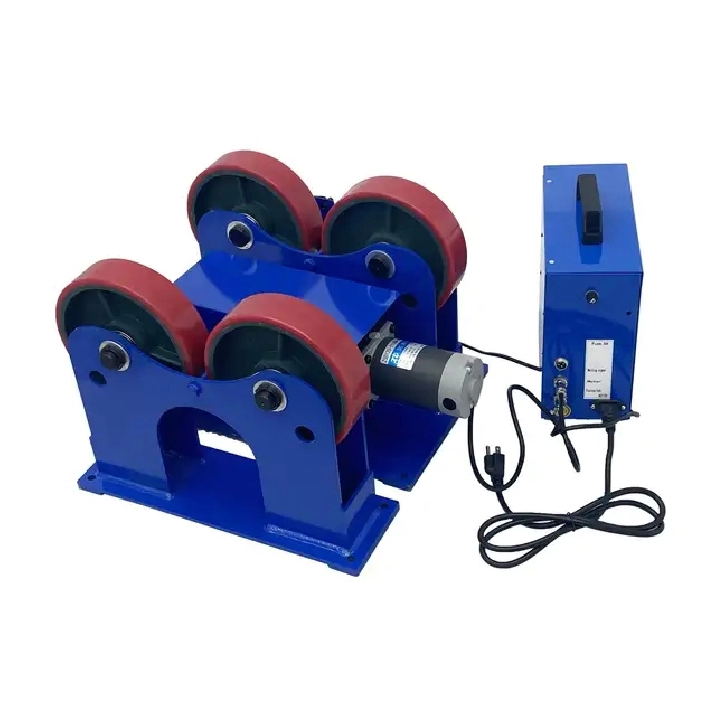

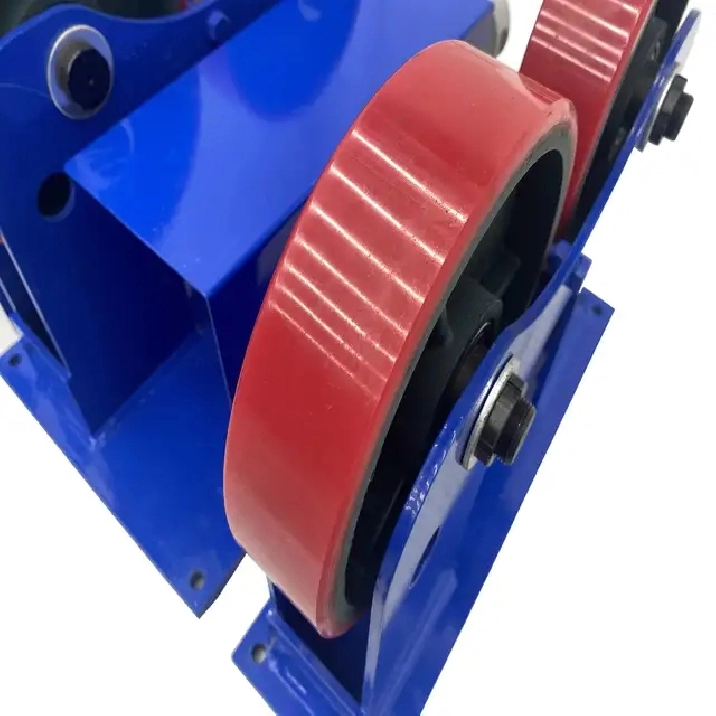

Motor & Polyurethane Wheels

Equipped with a powerful motor providing a large driving force, stable and reliable operation. And no shock during startup.
The wheels are coated with a layer of polyurethane to increase friction. Strong and reliable.
It can powerfully grasp the workpiece and make it turn with the wheel.

Wide Application
The Turning Rolls Linkage Roller can be matched with a welding operation machine ,a submerged arc welding machine, etc.

The machine is mainly applied to welding of the pipeline including inside and outside of the pipe.

Package Content(022083)
Welding Turning Rolls 2200LBS*1 Set

Foot Switch*1 Set

Control Box*1 Set
-
