Item number: 053389
-
Product Overview
Energy Efficient - Saves up to 70% Electricity. 1.1HP, 800 Watts Powerful Heavy-Duty electric servo motor for any type of industrial sewing machines for light to heavy duty work including straight stitch machines, overlocks, zigzag stitching machines, blindstitch machines, heavy duty walking foot and heavy duty upholstery machines.

Product Parameters
Voltage: AC110V
Power: 750W(1.1HP)
Torque: 10N.m
Speed adjustment range: 0-3500rpm
Current: 8.0A
Insulation grade: E
Package size: 13.0"*9.8"*6.7"(33cm*25cm*17cm)
Net weight/Gross weight: 7.9LB(3.3KG)/9.0LB(4.1KG)


Product Features & Advantages
Adjustable Bolt
The Angle adjustment bolt can flexibly adjust the tilt Angle of the motor according to your installation conditions, so that it can flexibly adapt to various machining angles.

Baseplate
The baseplate of the motor is made of strengthening and thickening, and it will hardly break. Four screws bi-directional fixed motor, more firm.

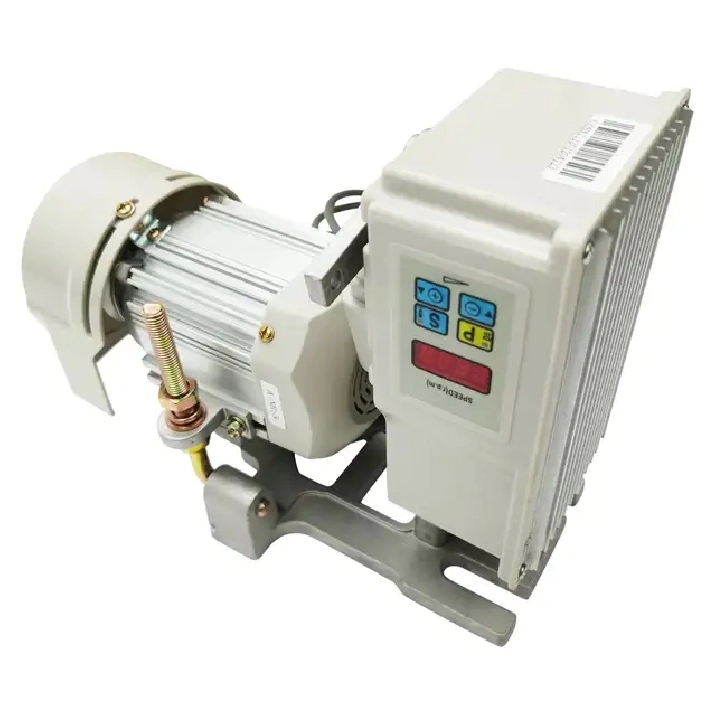

Control Panel
The control panel integrates various functions such as speed display, speed setting adjustment, pin setting control (optional), parameter setting and LED lighting (optional).Easy to operate at a glance.

Fuse
Motor built-in fuse, once encountered special circumstances lead to overload can quickly fuse to protect the machine circuit from damage, only need to replace the fuse can be.


- Support needle positioner Function, motor will run with or without the synchronizer. (the Needle Positioner need to buy extra)
- Pure copper brushless motor with copper content up to 99.5%, low vibration and noise.
- Spring multigear infinitely variable speed adjustment, brake sensitive. Adjustable belt tightener.
- Strengthen the thickened motor base, three screws bi-directional fixed motor, more firm and not easy to loose.
- Small size, light weight, simple and quick installation

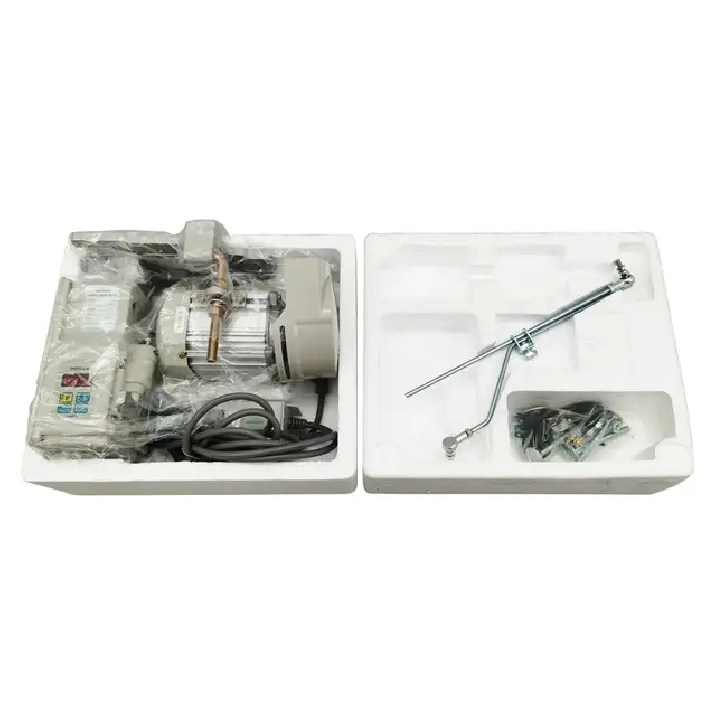

Item Included(053389)
Sewing machine servo *1 Pull rod *1 Gasket *3
Fixing screw *3 Nut *3 Flat pad *3
Self-tapping screw *3 Cushion *3 Line buckle *3
English manual *1

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
