Item number: 141156
-
Product overview

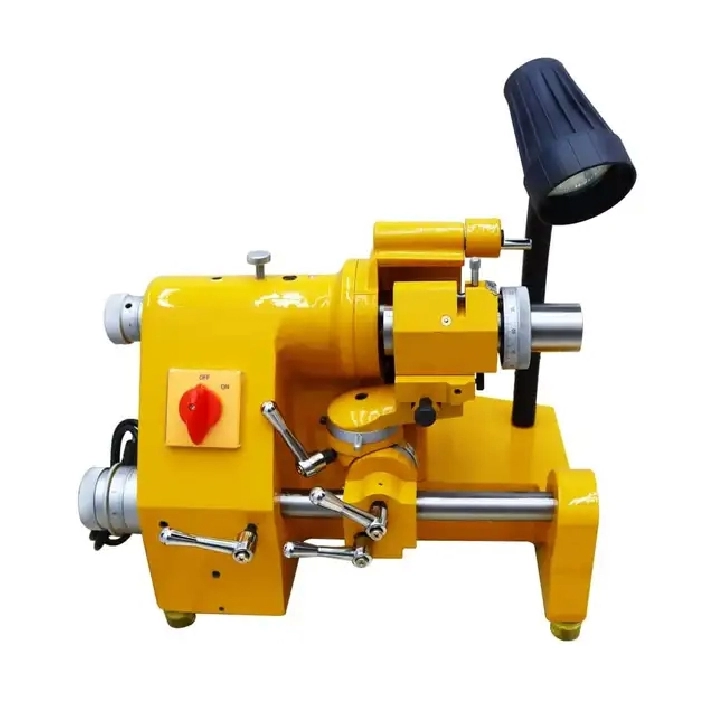

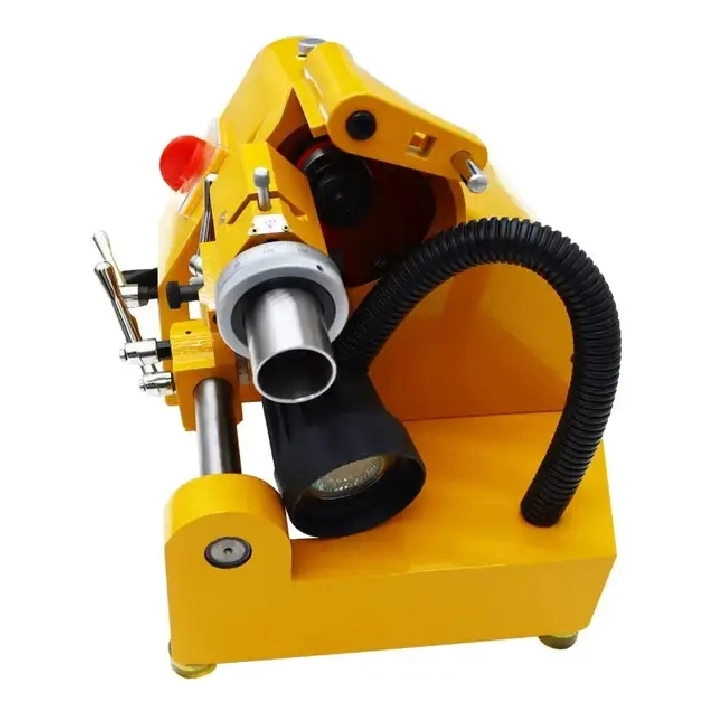

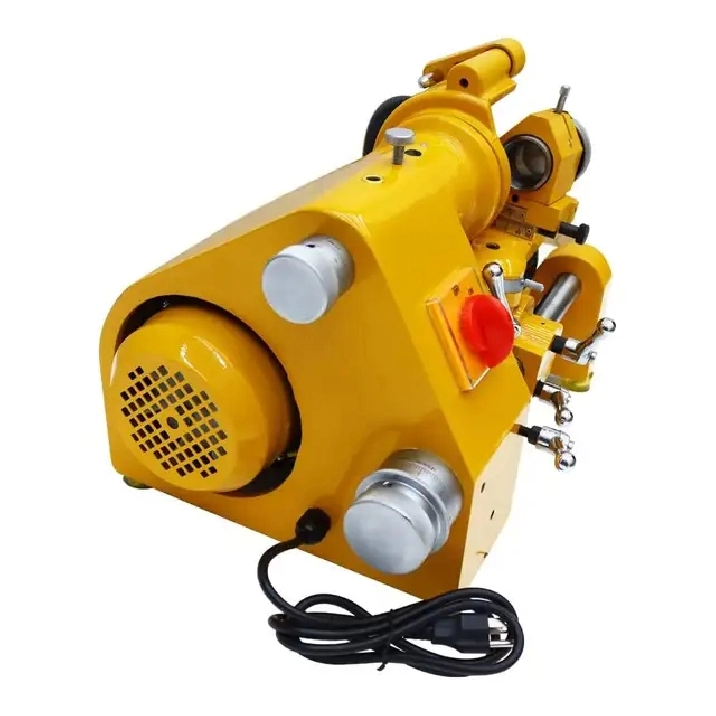

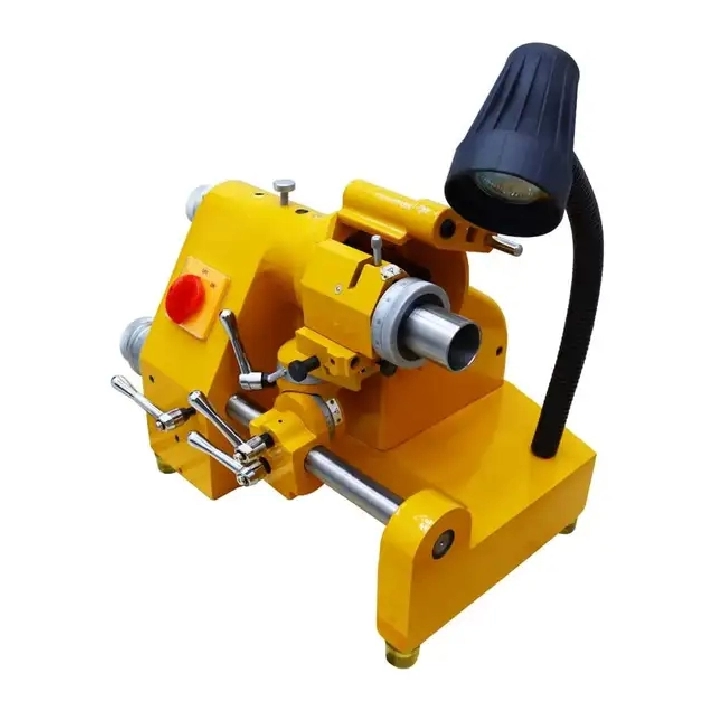

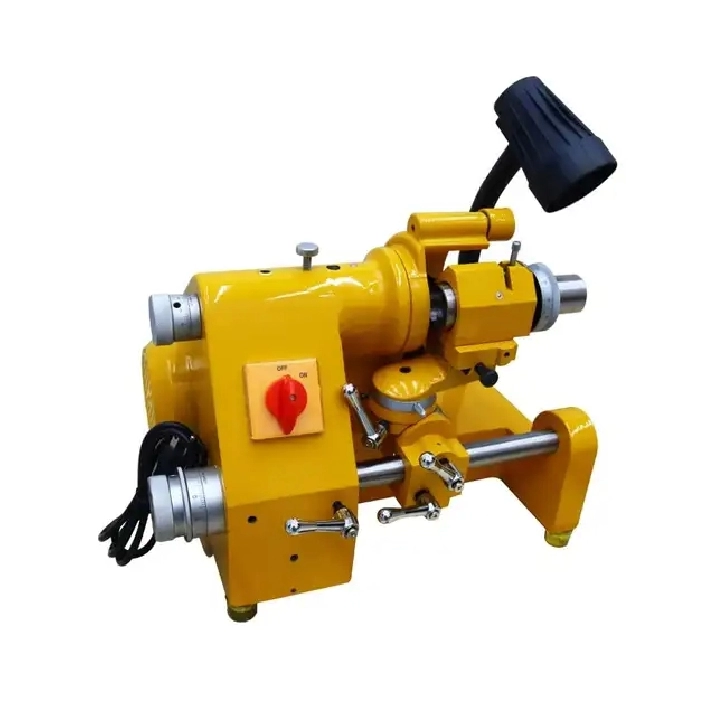

It is a machine used for grinding operation. Suitable for different kind of cutters, such as bits and lathe bits,lathe bit by using different accessories.

Parameter:
5 types C5 Collections: 0.15''=4mm, 0.2''=6mm, 0.3''=8mm, 0.4''=10mm, 0.5''=12mm...
Longitudinal travel of Spindle: 6mm
Cross travel of cutter index: 18mm
Longitudinal travel of cutter index: 140mm
Motor: 110V/60HZ
Grinding cone angle range: 0°-180°
Grinding negative angle range: 0°-52°
Grinding back angle range: 0°-44°
Grinding Spindle: 5200r.p.m.
Cup grinding wheel: 100x50x20mm(3.9*2.0*0.8")
Net Weight: 143LB(65kg)
Packing dim.: 55x49x51cm(22*20*20"

Features:
1. Concise and simple, and grind out in a straight line.
2. Increase the strength, prolong the service life of a blade and improve the processing capacity.
3.low noise, small vibration, tool post part bearing, durable, wear-resistant.
4. Carving knives with different diameters, shapes and angles are correspondingly ground according to the proportion of engraving.

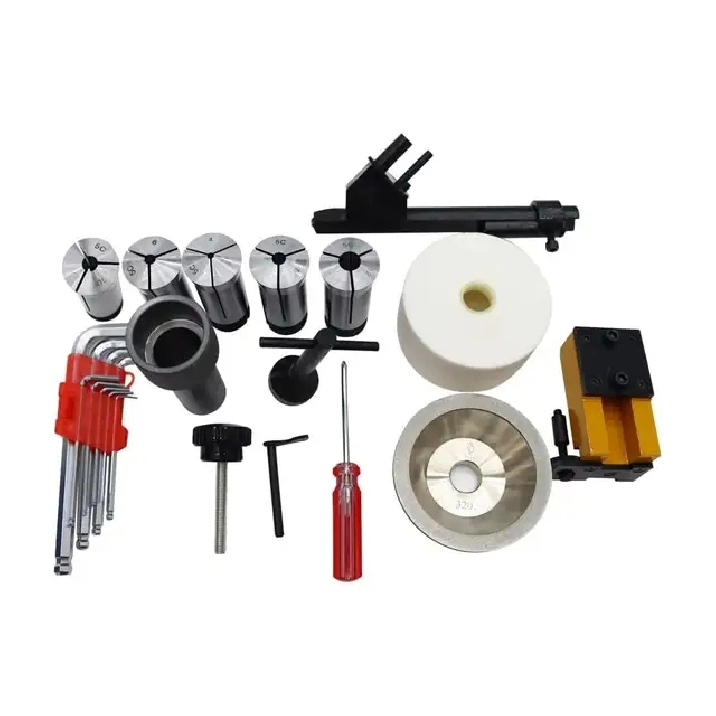

Item Included:(141156)
1*machine and accessories


Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
