Item Number: 130052
Brand New, High Quality And Extra Long Life
It can be applicable to 50W laser tube of a number of manufacturers.
-
Parameters:
Input--------
Input Voltage  AC110V
AC frequency 47-440HZ
Cold Surge Current <=60A(AC220V Input) <=30A(AC110 Input)
Current Leakage <=0.7mA (AC220V Input) <=0.4mA(AC110V Input)
Output---------
Maximum Input Voltage DC 30KV DC 5V DC 24
Maximum Output Current DC 25mA 1A 1A
Efficiency:>=90% (full load)
Mean Time Between Failure (MTBF):>=20000H
Response Speed: <=1ms (from the switch Signal is given to the output current up to 90% of the setting current)
Control Interface:TTL level switch control (details refer to the control terminal specification)
Pressure-proof:Input-Output, Input-Shell: AC1500V 10MA 60S
Protection:can work in open-circuit condition for a short time (Require a good protective earthing and avoid arc between the positive and the machine shell)
Environmental :Operating Temperature: -30~65 Degrees Celsius), Relative Humidity (RH) : <=90%
Cooling Way:Natural air cooling
-
Item include

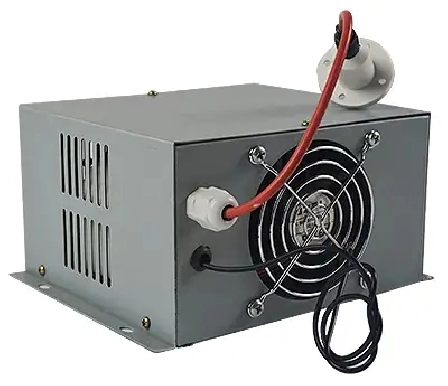

One set of 50w power supply #130052
