Item number: 230018
-
Specifications:

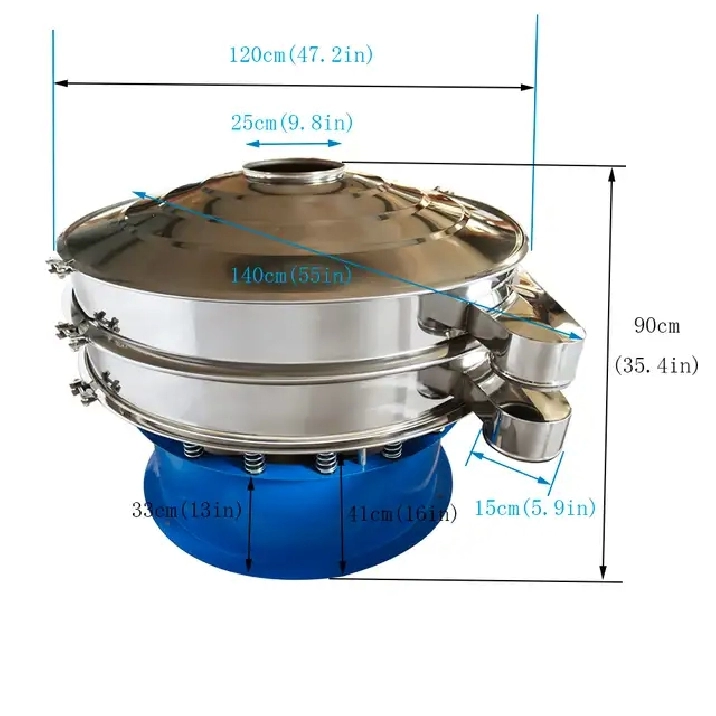

1.The height of the machine (contain the screen) is 35.4inch.
2.The machine is 47.2 inches in diameter.It is suitable to universal market
3.The machine motor is the whole copper motor,shock resistance, the hourly production is about 1100 pounds(E.g:Aluminum powder, lead powder, copper powder etc.)
4.We could supply three different screens,One is 840um(micron size) 20 mesh.One is 180um(micron size),80 mesh.The other is 150um(micron size),100mesh.
5.Voltage:208V 60HZ Triphase
6. Power: 1.5 KW
7.Material:Stainless Steel


Usage:
1.Chemical industry: resin, paint, industrial drugs, cosmetics, paint and so on.
2.Food industry: sugar powder, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice and so on.
3.Metal, metallurgy and mining: aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic materials, grinding powder, refractory materials, kaolin, lime, alumina, Calcium, quartz sand and so on.
4.Pollution treatment: waste oil, waste water, dyeing and finishing wastewater, additives, activated carbon and so on.

Advantage:
1. Ultra-high efficiency of filtering and the compact and durable design are adopted, and all types of powder and liquid can be processed.

2. The unique grid design is adopted, the time for screen is shortened, it solves the problems of mesh blockage and sinkage, and it is easily cleaned.

3. The sealing is good, powder does not fly, and the machine is impermeable and is suitable for separation of all powder and liquid.

4. The material is discharged automatically, and the machine can operate continuously.

5. The machine uses a vertical vibration motor and is free of mechanical transmission, so that the force transfer process is free of loss and effectively transmitted to the screen surface.

6. The machine can continue working for eight hours, is high in output and saves time and manpower.

7. The machine is of a new screen structure and is long in service life and easy to operate, and the screen can be replaced in a few minutes.

8. It can be used in a single-layer and multi-screen mode, and the parts are not fixed so that the machine can be cleaned and disinfected easily.

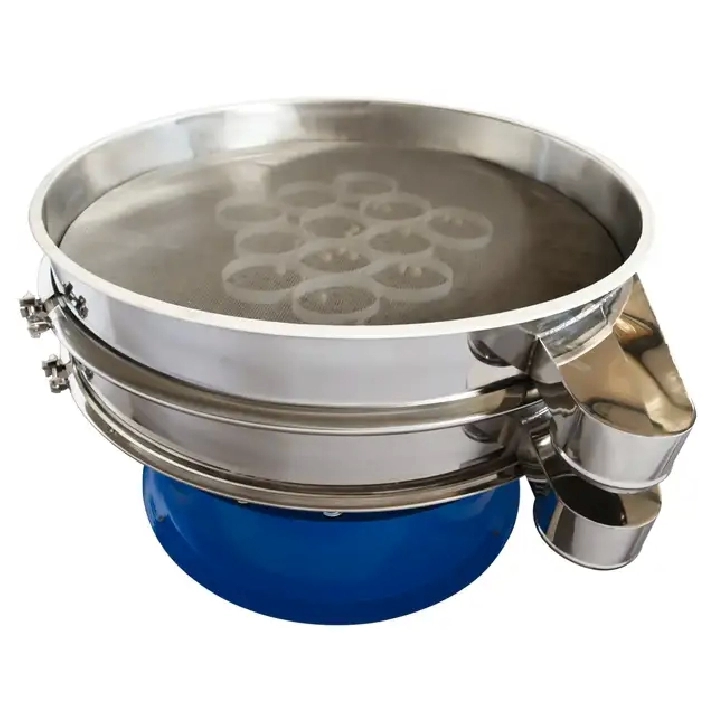

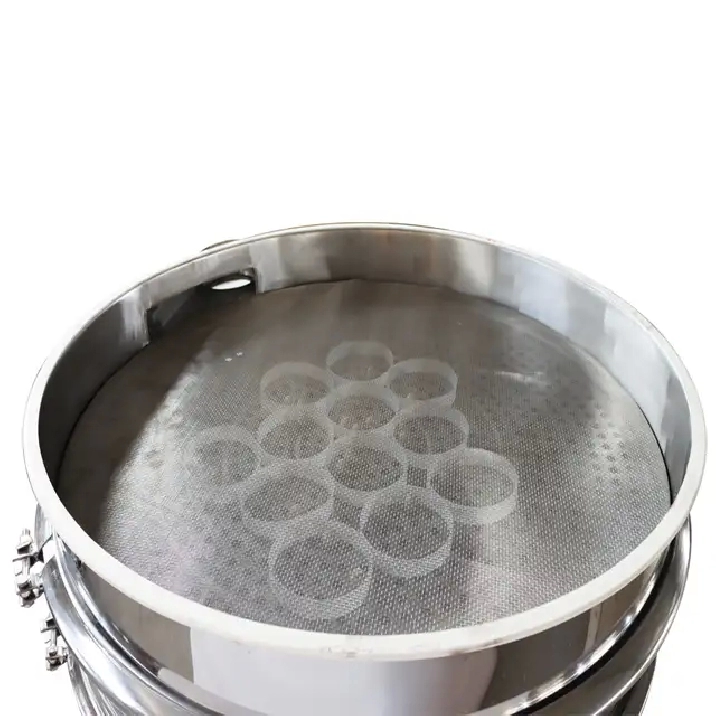

9.The screen is composed of stainless steel mesh parts.

Note: This machine does not come with a plug and requires an air switch (to be provided by the customer).

The transportation support must be removed before the machine is powered on and used.

Item Included: 230018
1 pcs of Vibrating Screen Big Screen Machine
.
