Item number: 056201
-
Product overview
The vertical color mixing machine adopts the vertical blade vortex type low-speed or high-speed operation, which makes the raw materials roll at high speed and collide with friction to generate heat, so that the material can be mixed with water and the water can be quickly evaporated to achieve the purpose of drying; it can also be used for mixing wet materials. It is widely used in plastics, powder, metallurgy, ceramics and other industries.

Product parameter
Voltage: AC220V 60Hz
Power: 7.5KW(10HP)
Phase number: Three phase
Rotational speed: 48rpm
Mixing tank capacity: 441LB(200kg)
Thickness of mixing barrel: 0.06"(1.5mm)
Material of mixing barrel: 430 stainless steel

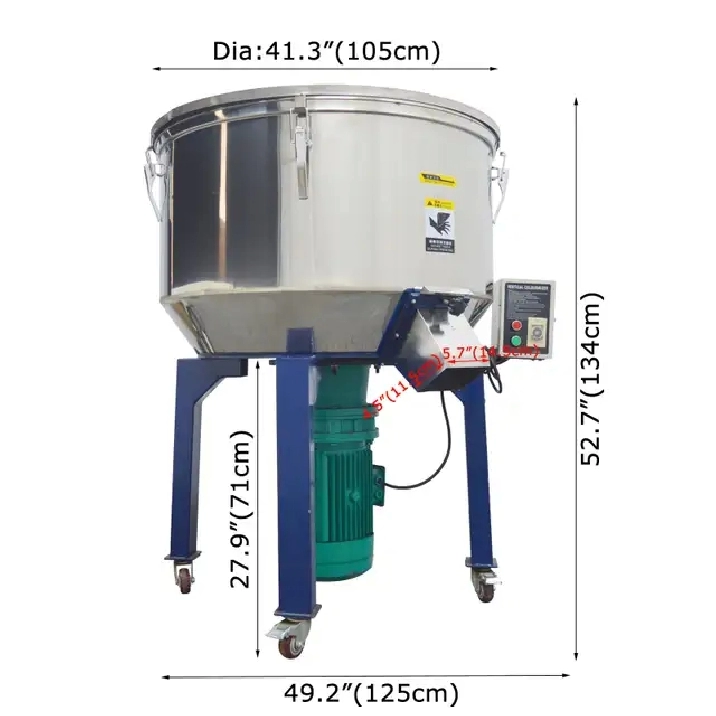

Packing size: 47.6"*46.5"*59.8"(121cm*118cm*152cm)
Net weight/Gross weight: 474LB(215kg)/617LB(280kg)

Product features
- The mixing barrel is polished, with high finish and easy to clean.
-Complete uniform mixing in a short time, low energy consumption and high efficiency.
- The bracket and the fuselage are all welded, and the structure is firm.
- The bucket cover adopts a two-stage folding design and is equipped with a handle, which is convenient to open and observe at any time.
- The lid and the bottom of the barrel are stamped and formed at one time, which is more durable.

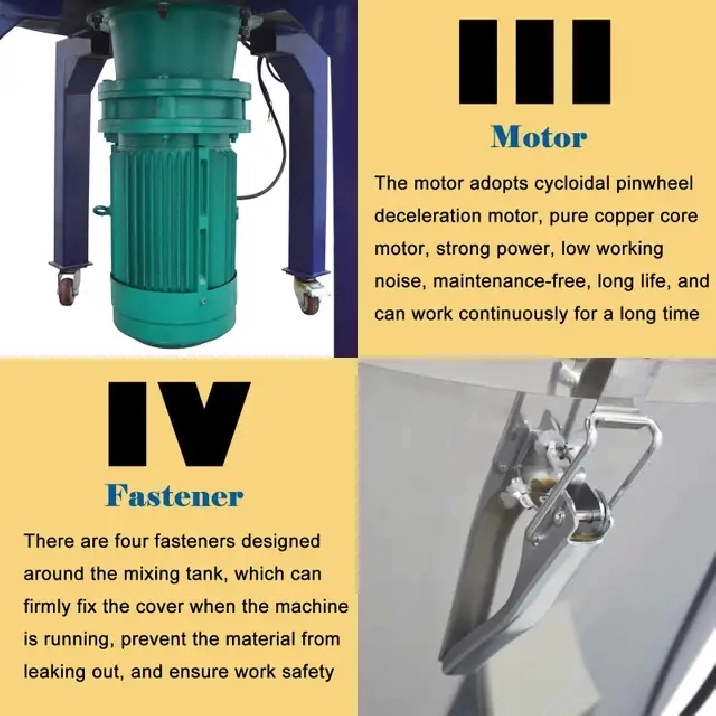

- The motor has an overload protection function, which will disconnect the circuit when overloaded to protect the motor.

Item included : 056201
Blender Mixer *1
