Specifications:

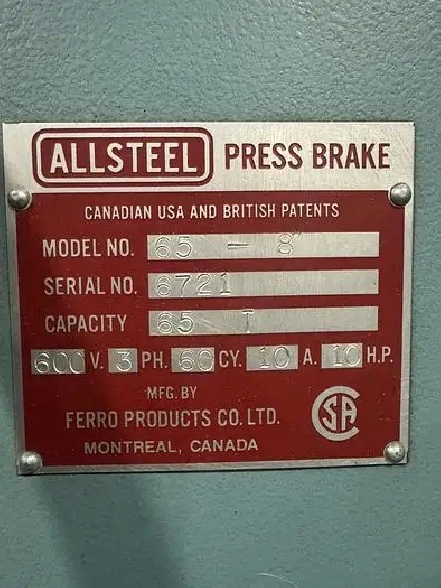

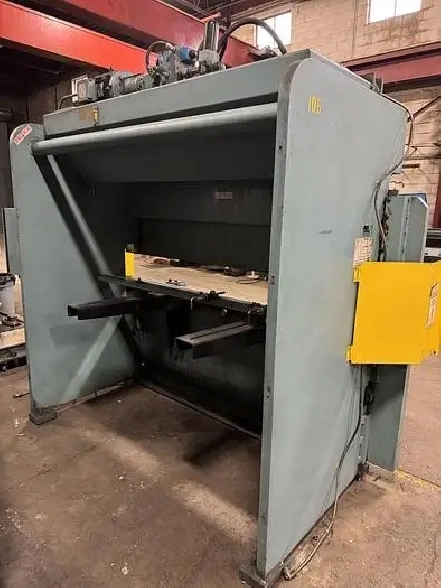

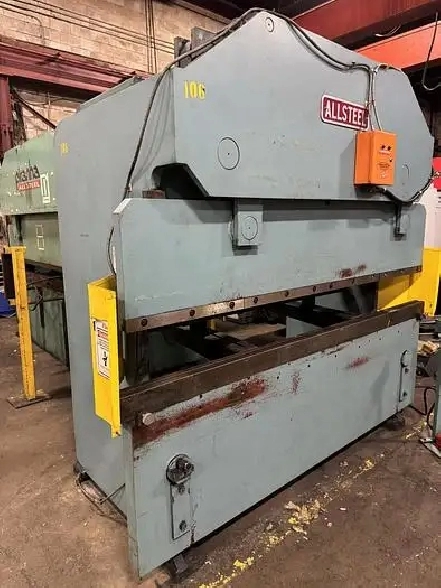

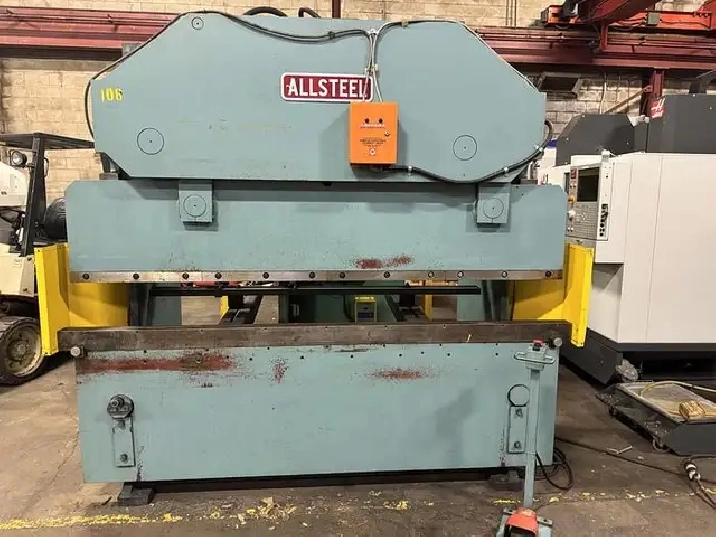

Manufacturer 65 TON X 8', ALLSTEEL, HYDRAULIC PRESS BRAKE
Model 65-8
Stock Number 4701
CAPACITY 65 TONS
OVERALL BED LENGTH 8'
DISTANCE BETWEEN UPRIGHTS 78"
THROAT DEPTH 8"
VARIABLE STROKE 0 - 6"
OPEN HEIGHT 15"
APPROACH SPEED 2.6" / SEC.
RETURN SPEED 190 IPM
VARIABLE PRESSING SPEED .28 - .6" / SEC.
APP. OIL CAP. 65 US GAL.
MAIN MOTOR 10 HP
ELECTRICS 600V/3/60
APPROX. WEIGHT 10,000 LBS.

Equipped With:

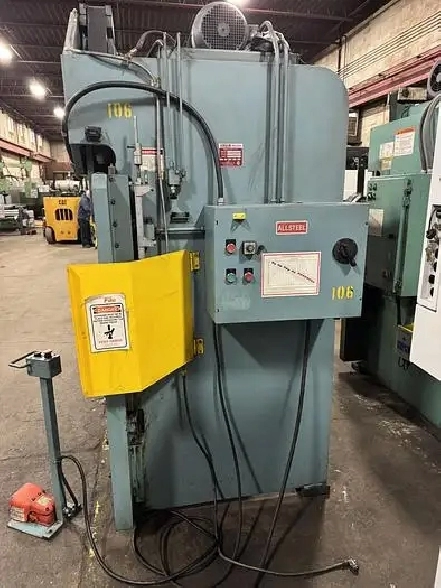

FOOT PEDAL CONTROL
OFF/SET/JOG/RUN/SINGLE MODE SELECTOR SWITCH
PUSH BUTTON RAM RETURN
