Item number: 056660
-
Product Overview
Our rebar cutter has a wide range of applications, it is widely used in construction engineering for cutting rebar, steel bar, steel rod, screw thread steel, carbon steel, round steel, etc. This machine adopts powerful 3kW pure copper motor, strong power, low energy consumption, low noise, using high-quality steel body material blade, cutting speed is extremely fast, within 1-2 seconds can cutoff the steel bar, 300% efficiency increase for rebar installers!

Product Parameters
Model: GQ40-H
Voltage: 220V
Motor Power: 3kW
Motor revolving speed: 2870r/min
Cutting Specification: Plain carbon steel≤Φ1.42"(Φ36mm)
Thread steel(grade II)≤Φ1.26"(Φ32mm)
Cut-off Speed: 1-2 seconds
Working Speed: 28r/min
Cutting frequency: 32times/min
Package size: 53.54"*22.05"*32.68" (136cm*56cm*83cm)
Net weight/Gross weight: 821.22lbs(372.5kg)/888.46lbs(403kg)
Tips: Please add dilute oil once every FOUR hours! (10mL/4h)

Product Features & Advantages
a. Powerful Motor
Equipped with a 3kW 100% pure copper motor, strong power, high efficiency, simple structure, able to work stably for a long time, high reliability, low maintenance cost, low energy consumption, low noise, durable, good heat dissipation.

b. Foot Pedal
The heavy-duty rebar cutter comes with a standard foot pedal control switch for hands-free cutting, 1-2 seconds cut off, which can greatly improve the work efficiency and save worry and effort.

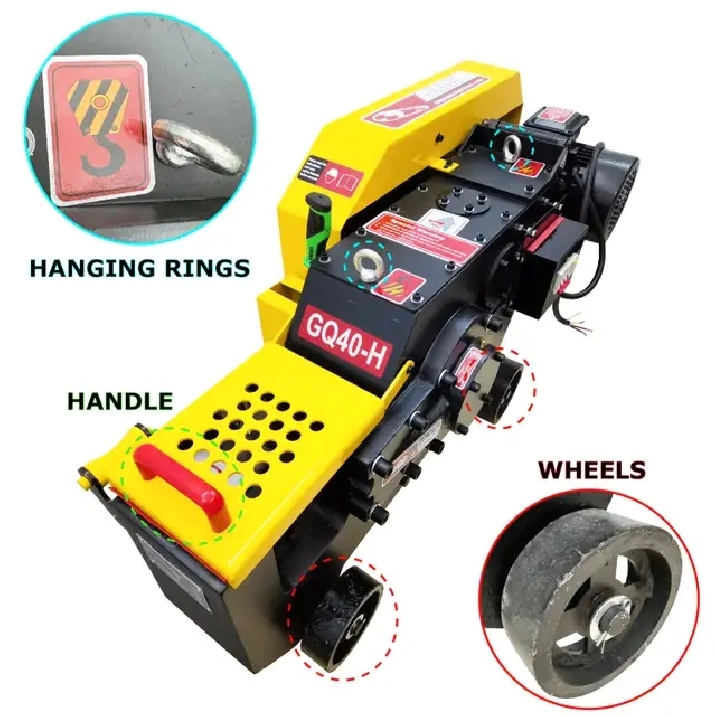

c. Easy to Use and Transport
Equipped with four iron wheels ,which make you to move the cutter smoothly and easily to where you need. Two hanging rings and one handle on the top make it easy to lift it up and transport.

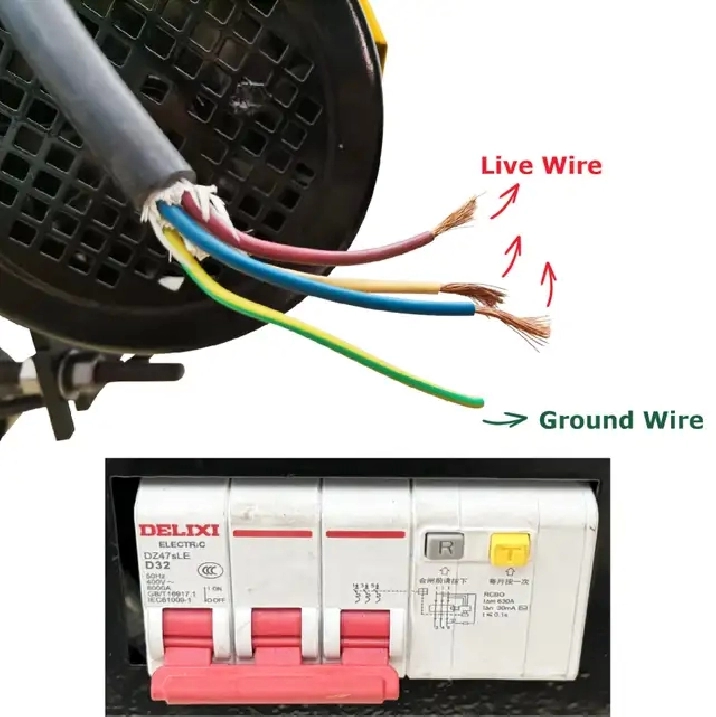

d. Air Switch
The rebar cutter has no plug, and is directly connected to the air switch, more convenient, does not require constant maintenance, and has a long service life. At the same time, it comes with an air switch, that is, an open circuit protector, safe and reliable.

e. Clutch Lever
Clutch is also a key technology when using the steel bar cutting machine, which realizes the purpose of cutting steel bar by combining and disconnecting the transmission device. It is characterized by smooth clutching, good viscosity, strong bearing capacity, small volume, compact structure, rarely maintenance, prolonged service life of the equipment and good heat dissipation.

f. Blade
High quality forged head frame and blade, the blade is made of high-quality steel material, ultra-sharp, high cutting precision, strong and wear-resistant, efficient and fast cutting in 1-2 seconds.

g. Feed Roller
It's used to transport rebar, and has the characteristics of high efficiency, ‌ durable and reliable, ‌ thus improving the work efficiency and production quality of the whole steel bar cutting machine. Kindly reminder that be careful of your hands when using it!!!

The Control Principle of the Clutch Switch
The control principle of the clutch switch is to control the opening and closing of the clutch through the circuit, the specific steps are as follows:
1. Push the joystick forward
When the joystick is pushed forward, the circuit opens, transmitting the current to the clutch. The clutch starts to disengage and the cutting machine starts to work.
2. Pull the joystick back
When the lever is pulled back, the circuit is disconnected, the clutch is reconnected, and the cutting machine stops working.


Item Included: 056660
1*Rebar Cutter
