Product Overview
The high frequency induction heating machine is a special heating device for metal materials by means of the induction heating technology. When the high-frequency alternating current passes through the induction coil, the alternating magnetic field can be generated, and the eddy current and the magnetic hysteresis loss are generated inside the workpiece, so that quick and accurate heating is achieved. The induction heating machine can be widely applied to fields of industrial heat treatment, smelting, welding, forging and so on.

Attention
1. Before operating the machine, please read the instruction book thoroughly, and retain it for future reference. Before you purchase it, please clearly understand the voltage and the power of the machine (220V, 15KW).
2. This machine can't be used with a plug directly, it needs a power wire to connect the machine and power supply directly. (The cross-sectional area of power line must be larger than 6 square millimeters.)
3. This machine needs to be matched with a cooling water machine or water tank to be used, and the cooling water machine and water tank need to be prepared by customers.

Product Parameters
Model LH-15AB
Work Power 220V 50Hz/60Hz
Operating voltage Range 180-250V
Output Power 15KW
Fluctuating Frequency 30-100KHZ
Output Current 200-600A
Heating Time 1-99s (auto)
Flow rate of cooling water 0.06-0.12Mpa 7.5L/Min
Water temperature protection point 40℃
Net Weight 28KG (62LB)
Package Size 24.6’x24.8’x29.3’

Product Features

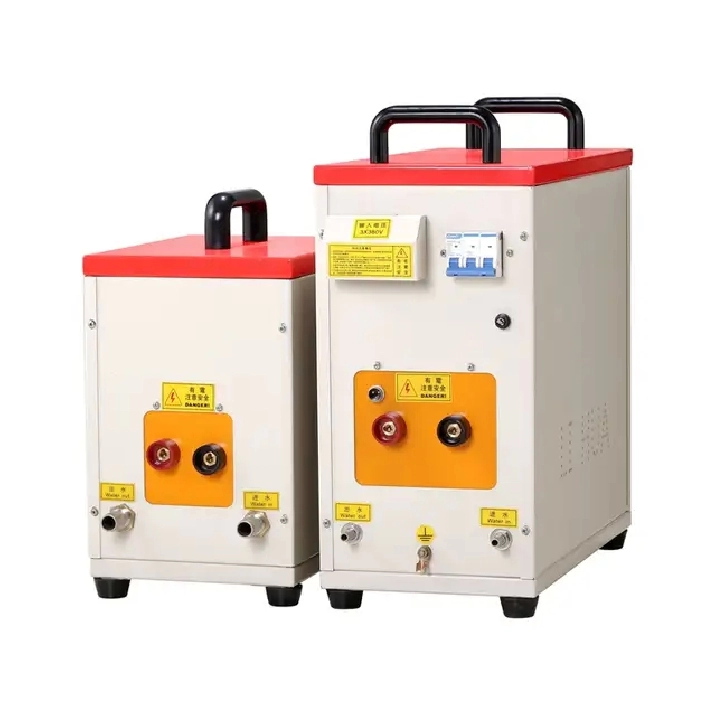

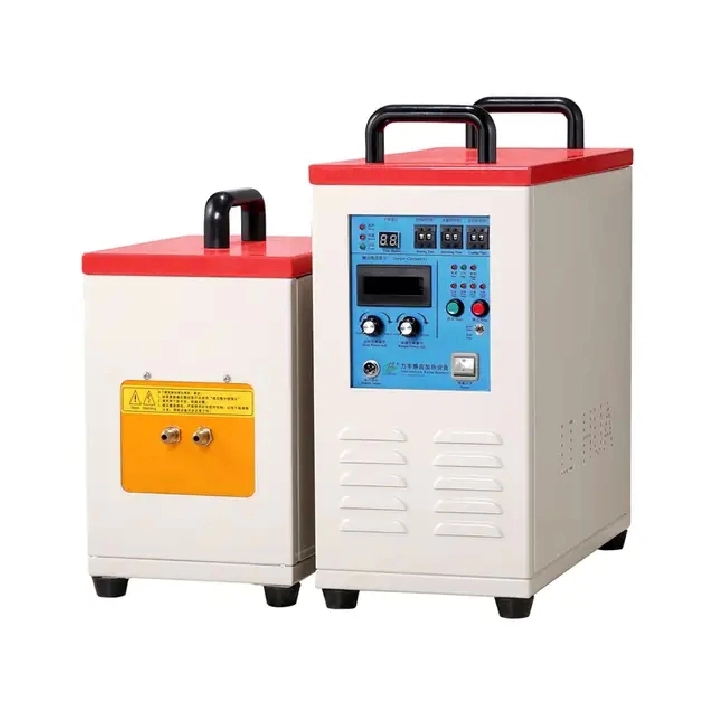

Split type design, easy to connect and disconnect, compact in structure, small in size and occupied space, light in weight and convenient to move and store.
　

Full load, long working time and high efficiency. The machine can continuously work for 24 hours in a full-load state and can achieve quick heating, quenching and cooling in a short period of time.
　
Automatic production, intelligent control and one-button type operation for bearings, gears, auto parts and precision hardware. The machine has the heating-insulation-cooling three-period time function setting, thereby improving the heating quality and the heating circularity and simplifying the manual operation.
　

Low power consumption and energy saving. The power consumption of this machine is only a half that of traditional electronic tube high frequency heating equipment under the same condition.

Exquisite workmanship and high quality. MOSFET and IGBT power devices and the unique frequency conversion technology are adopted by the high frequency induction heating power supply, thereby providing the higher reliability and durability, achieving stable and efficient operation, saving energy and having the higher output power.
Safety protection. The machine is equipped with a power protective cover, the power line can be connected and protected safely and reliably.

Application

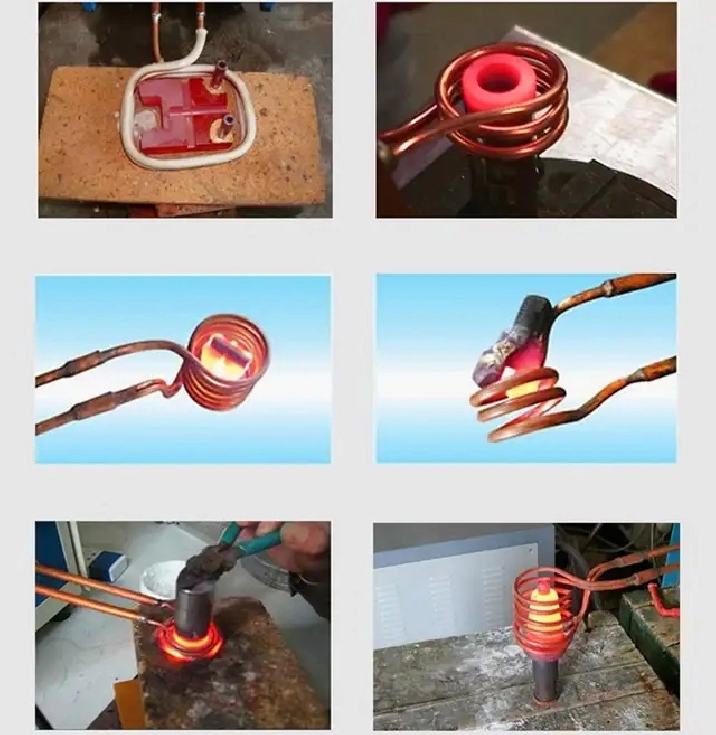

As a special heating device, the high frequency induction heating machine can be widely applied to the fields of heating, smelting, quenching, annealing and braze welding of gears, shafts, bearings, auto parts, precision hardware parts and other metal parts.

Item Number (022060): 1 x Induction Heating Machine 220V 15KW

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
-
