Item number: 056264
-
Product Overview

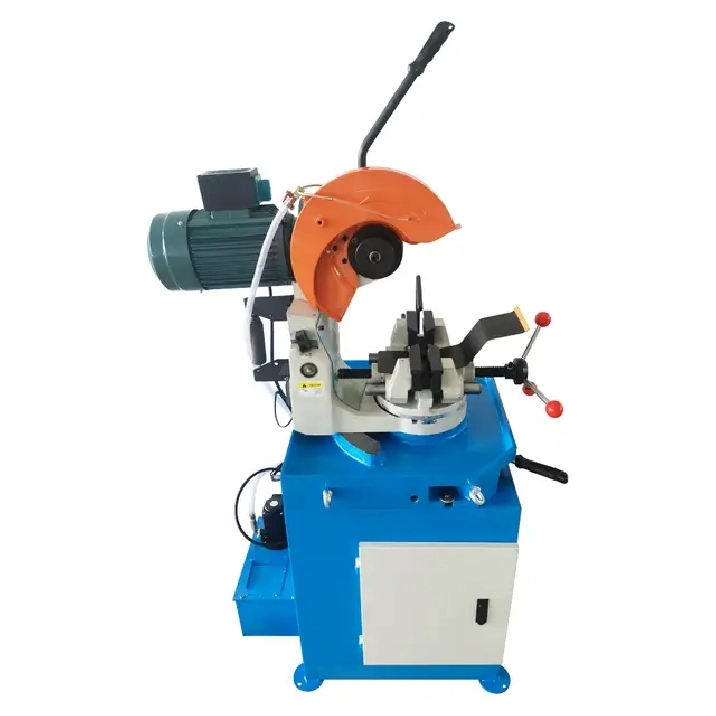

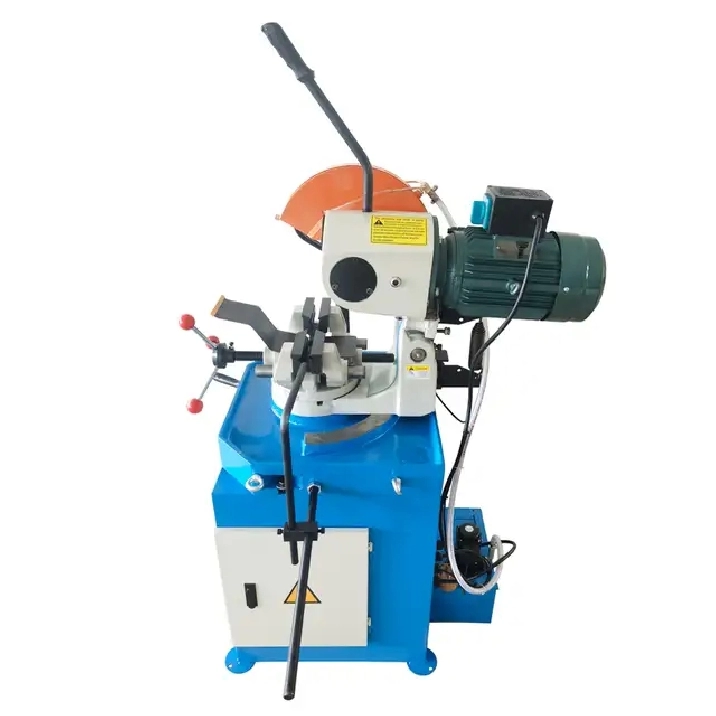

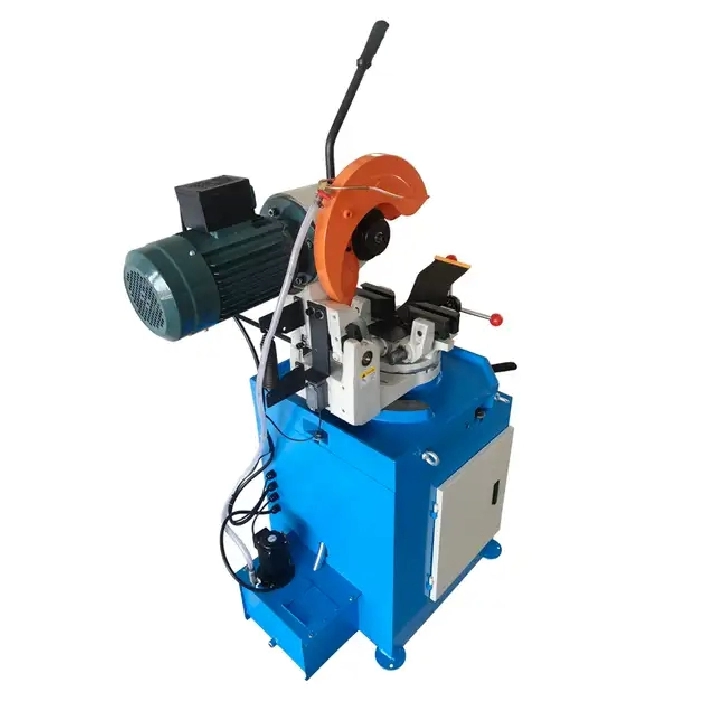

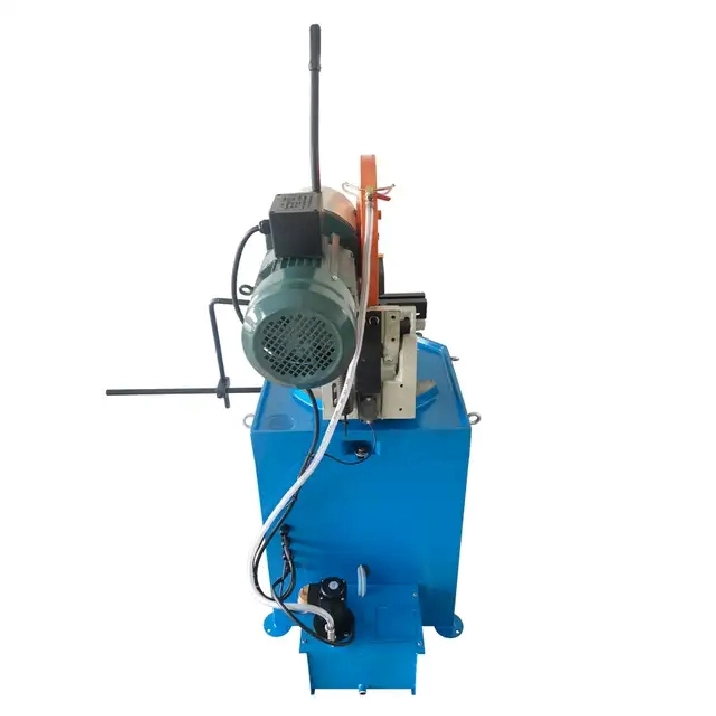

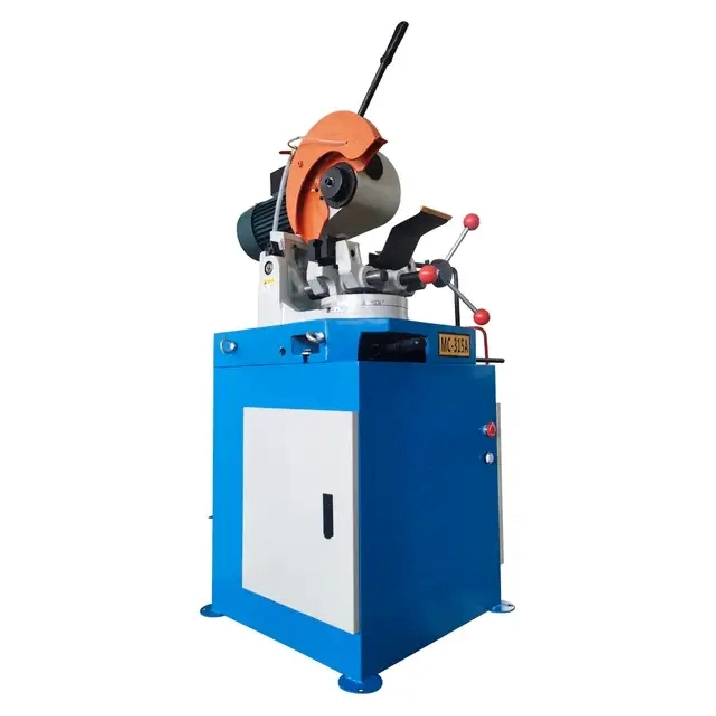

This semi-automatic manual circular saw & pipe cutter can cut a variety of solid and hollow pipes within a certain range of sizes, and can also cut a variety of Angle steel and metal plates; Suitable for structural steel, tool steel, bearing steel, stainless steel, copper and copper alloy, aluminum and aluminum alloy, plastic and other materials; Simple and convenient operation, widely used in all walks of life material processing.

Product Parameters
Voltage: AC220V 60Hz
Power: 4HP(3KW)
Phase number: 3 Phase

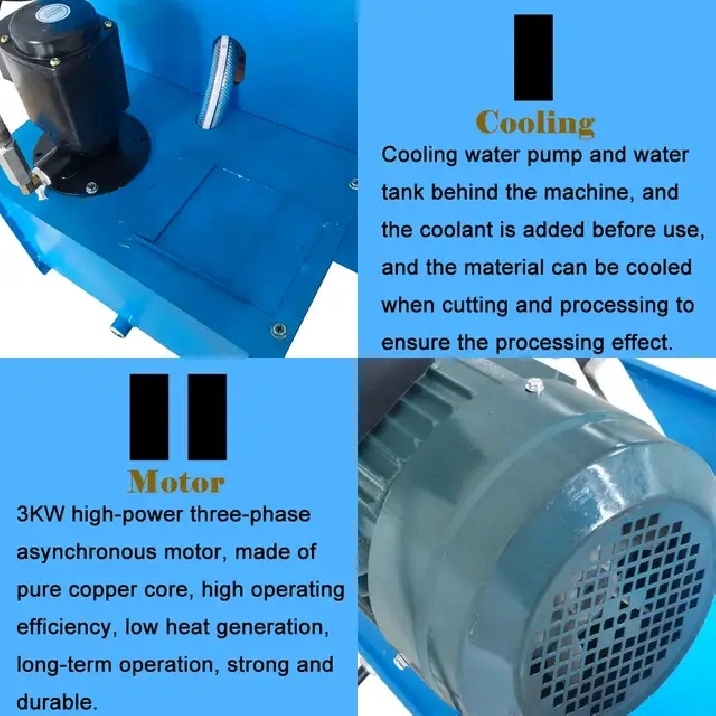

Cooling pump motor power: 40W
Cut pipe wall thickness: 0.6mm-5mm
Blade speed: 40rpm/80rpm(Low/High)

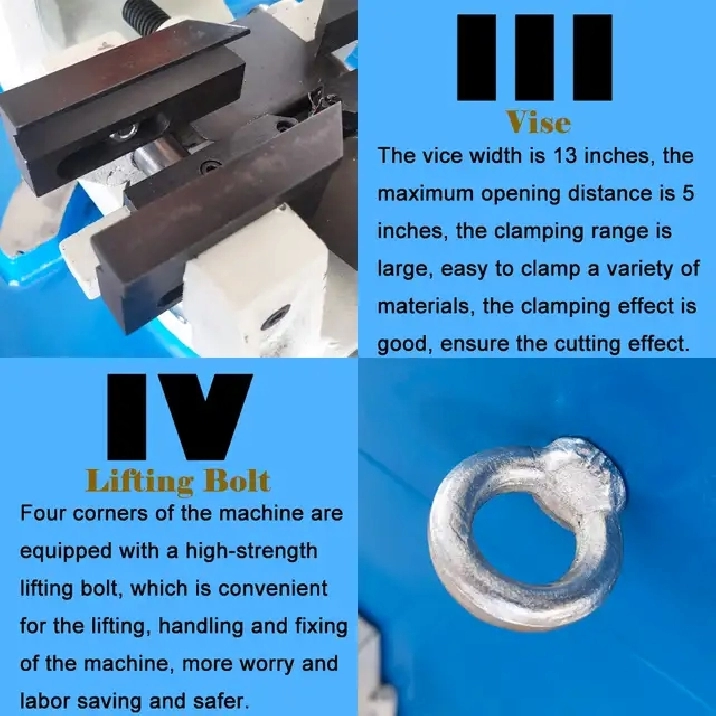

Max vise opening: 4.92"(125mm)

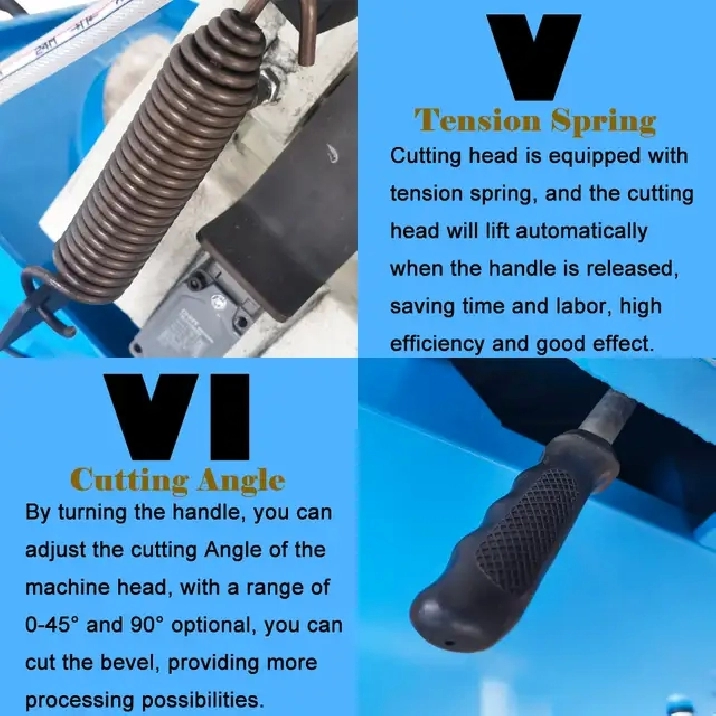

Cutting Angle: 0-45°and 90°
Applicable to saw blade specifications: 315mm(OD)*2mm(Thickness)*32mm(ID)

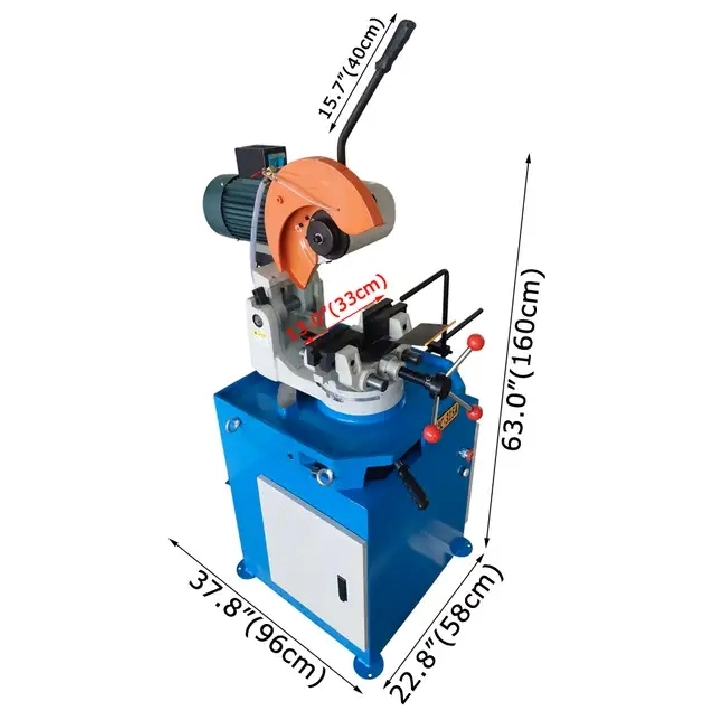

Package size: 38.2"*26.4"*59.4"(97cm*67cm*151cm)
Net weight/Gross weight: 469.6LB(213kg)/566.6LB(257kg)


Cutting Parameter
45° 90°
Max capacity round(hollow) 3.15"(80mm) 3.54"(90mm)
Max capacity rectangular(hollow) 2.36"*2.36"(60mm*60mm) 3.15"*3.54"(80mm*90mm)
Max capacity square(hollow) 2.36"*2.36"(60mm*60mm) 2.75"*2.75"(70mm*70mm)
Max capacity round(solid) 1.77"(45mm) 2.16"(55mm)
Max capacity square(solid) 1.57"*1.57"(40mm*40mm) 1.97"*1.97"(50mm*50mm)


Item Included(056264)
Pipe Cutting Machine *1 Screwdriver *2 Hex Wrench *9
