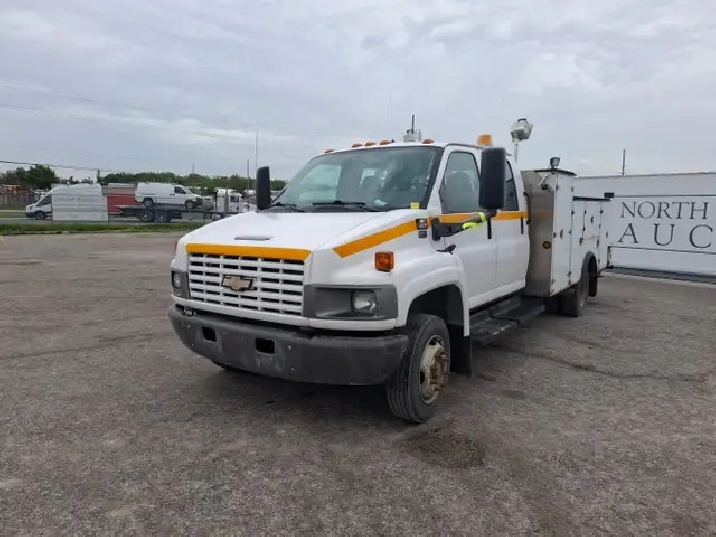

2005 Chevrolet Kodiak C4500

This is for sale in the September 25 - 26, 2026 - Unreserved Equipment, Trucks, Trailers, Light Vehicles & RV Live 2 Day Auction - Toronto, find it here: https://www.northtorontoauction.com/auctions/25082/lot/243140-2005-chevrolet-kodiak-c4500-4x4

2005 Chevrolet Kodiak C4500

Engine: 8 Cylinder Engine 6.6L/403CI
Safety Equipment
Daytime running lights
4-wheel disc, 4-channel ABS
Air bags, Supplemental Inflatable Restraints not included.
This vehicle does not include any air bags
Interior Equipment
Rear bench seat
Cloth headliner
Seat trim, vinyl, Very Dark Pewter
Trim console - located next to driver's seat, and two cupholder
Molded vinyl floor covering
Headlamp warning buzzer
Warning tone, key-in-ignition
Tachometer with automatic and manual transmissions
Electronic engine hour meter
Engine "Check Gauges" telltale light and buzzer, oil pressure gauge
Gauges, low oil pressure and coolant level, high coolant and engine oil temperature
Vinyl door trim panels - with storage pocket on front doors, beverage holders, and reflector on all doors
Coat hooks (2) located on cab back panel
Air conditioning not desired - this option should be ordered only when a customer does not require air conditioning
Underhood bodybuilder connections accessory power supply - Provides 12V power supply from the battery with two separate 30 amp fused circuits
Steering wheel, simulated leather
Sunshades, passenger side and driver side, vinyl-covered
Seat belt warning indicator
Steering, power - ZF variable ratio power
Powerpoints - one in-cab power source (in addition to optional cigarette lighter) for electrical plug-in accessories
Radio, Delco AM-FM stereo radio - with coaxial speakers in all door panels
Seat, driver, high-back bucket, Fixed height, manual adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
Seat, passenger, high-back bucket, Fixed height, manual back angle adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
Interior trim, Very Dark Pewter (Requires 69V Very Dark Pewter Vinyl or 69C Very Dark Pewter Cloth)
Exterior Equipment
Daytime running lights
Paint scheme, solid, upper color, Summit White
Paint scheme, solid, lower color, Summit White
Exterior roof drip moldings
Bumper, front, steel, 96" (243.8 cm) wide - styled to minimized wall to wall turn diameter painted argent
Steps under cab doors
Integral grille and fenders - The grille is the same color as hood with single halogen headlamps.
Provisions for mounting front license plate
Windshield wipers, intermittent, with pulse washers
Mirror, manual, 102" (259 cm) wide load, integral arm, integral convex mirror - black molded composite 12" x 7" (30.5 cm x 17.8 cm) with 6" x 7" (15.2 cm x 17.8 cm) convex section
Windows, Solar-Ray tinted - front windows only; excluding rearside and rear windows
Mechanical Equipment
Rear wheel drive
Air cleaner, dry type
Cooling, anti-freeze protection temperature - -40 degrees F (-40 degrees C)
Front shock absorber, diameter 1.375" (35mm)
Front tire manufacturer code, Goodyear (Requires S4A Goodyear)
Rear tire manufacturer code, Goodyear (Requires R4A Goodyear)
Frame, 8mm - 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63
Fuel sender assembly. Robust fuel pump
Tethered fuel cap
Brakes, rear, power, 4-wheel disc, 4 channel ABS 2-piston - (See Rear Axle options for more detail)
Option PTO not required - This option should only be ordered when a customer specifically does not require an electric hand throttle for use with power-take-off provisions. (Note: may delete transmission PTO gear.)
Front stabilizer bar, 2" x 2" square tube (5 cm x 5 cm)
Rear shock absorber, 1.375" (35mm)
Front wheels, 19.5" x 6.75" (49.5 cm x 17.1 cm), steel disc - 8-hole. 10,000 lbs. (4536 kg) capacity, (Requires Q83 steel rear wheel)
Brakes, front, power, 4-wheel disc, 4 channel ABS 4-piston - (See Front Axle options for more detail)
Front tread, premium, highway (Requires R4A Goodyear or R4L Michelin)
Rear wheels, 19.5" x 6.75" (49.5 cm x 17.1 cm), steel disc - 8-hole, 20,000 lbs. (9072 kg) capacity, (Requires Q82 steel front wheel)
Rear tire size, 225/70R19.5F - 13,660 lbs. (6196 kg) capacity, (With S4A Goodyear, requires S3C rear premium highway tread or S3H rear traction tread; with S4L Michelin, requires S3C rear premium highway tread or S3J rear highway traction tread; with S4N Bridgestone requires S3M rear all season tread)
Rear tread, premium, highway (Requires S4A Goodyear or S4L Michelin)
Road speed governor, controlled by the speed rating of the tires ordered which will be less than or equal to 85 mph (137 kph)
Front suspension, tapered leaf, 7000 lbs. (3175 kg) capacity (includes stabilizer)
Rear axle, single speed, 11,000 lbs. (4990 kg) capacity - full floating, Includes 2-piston brake applied calipers
Wheelbase, 169" (429.3 cm) - with 60" (152.4) CA and 121" (307.3 cm) CE. Includes a 8 mm 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 824,800 section Modulus 10.31
Parking brake, hand lever operated transmission mounted drum brake
Front tire size, 225/70R19.5F - 7280 lbs. (3802 kg) capacity, (With R4A Goodyear or R4L Michelin, requires R3C front premium highway tread; with R4N Bridgestone requires R3M front all season tread)
Rear axle ratio, 5.13:1 - Not recommended for most applications, (Requires gasoline engines only)

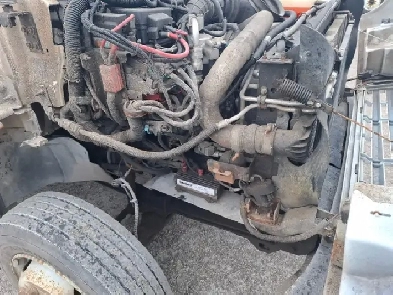

Engine, Vortec 8100MD gasoline V8, 225 hp (167 kw) @ 3600 rpm and 350 lb-ft torque (473 N-m) @ 1,200 rpm. - Maximum engine speed 5000 rpm
Alternator, AD230 Delco Remy 105-amp maximum (N/A with YW2 wrecker package)
Exhaust, single horizontal - passenger side mounted inside frame rail, stainless-steel with gasoline engines, aluminized steel with diesel engines
GVWR, 16,500 lbs. (7484 kg) capacity - GCWR limited to 24,000 lb. (10,866 kg)
Battery, single 600CCA Delphi Freedom 12V - 115-minute reserve capacity @ 27 degrees C, 600 CCA @ -18 degrees C grounded directly to starter, (Requires LQR gasoline engine) (N/A with YW2 wrecker packages)
Transmission, Allison 1000 Series automatic - with 0.71 overdrive. Torque Rating: 520 lb-ft (705 N-m). Column shift. Base model does not include power take-off gear. To include PTO gear please order with RPO "PTO". Includes transmission-oil cooler located inside radiator and an air-to-oil auxiliary cooler. PTO mounting location on the driver's side. With Option PTX, the truck will be equipped with the Allison 1000HS Highway Series transmission. When ordered with option PTO, the truck will be equipped with the Allison 1000RDS Rugged Duty Series transmission.
Front axle, 7000 lbs. (3175 kg) capacity - I-beam Wide-trac. Up to 53 degree turn angle, (Includes 4-piston brake apply calipers)
Rear suspension, tapered leaf, 11,000 lbs. (4990 kg) capacity (Requires GN1 rear stabilizer bar)
Rear stabilizer bar, provides increased load stabilization - improves handling and reduces vehicle roll. Does not adversely affect ride. Diameter 44mm, (Required with taper leaf springs) (Available with multi leaf springs)
Fuel tank, single, 40-gallon (151L) fuel capacity - gas or diesel, located behind rear axle with fuel fill neck through frame rail, DRIVER SIDE FILL NECK ONLY. NO AUXILIARY FUEL PORTS (N/A with YW2 Wrecker Package) MINIMUM OVERHANG = 60" (5 FEET)
