Item number: 021511
-

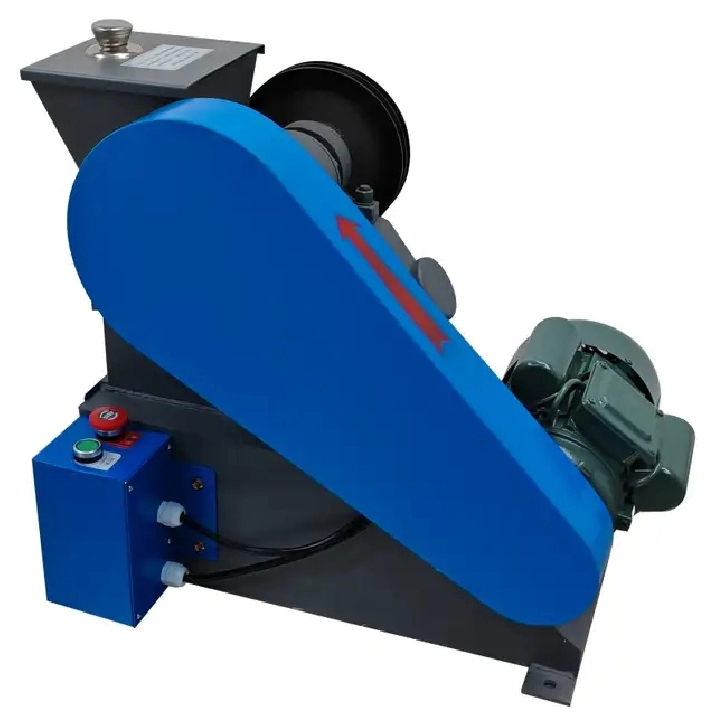

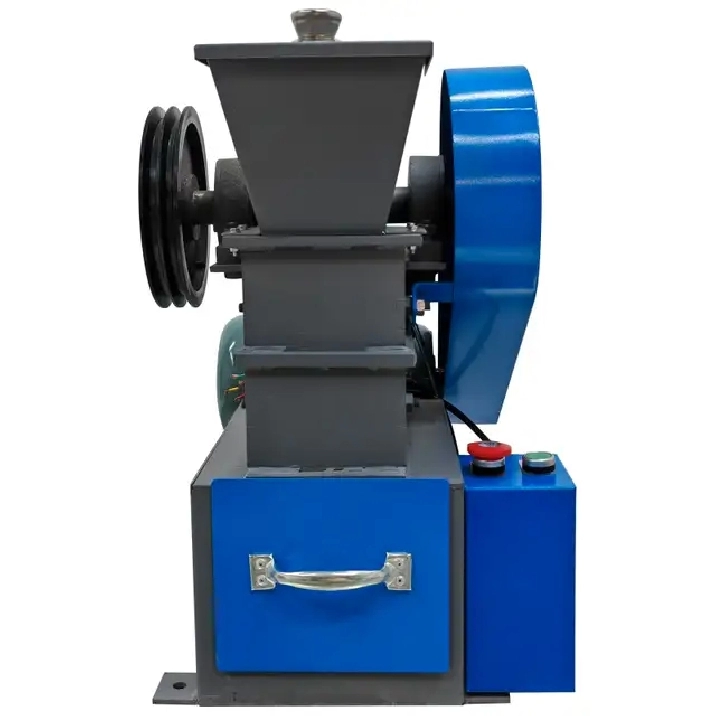

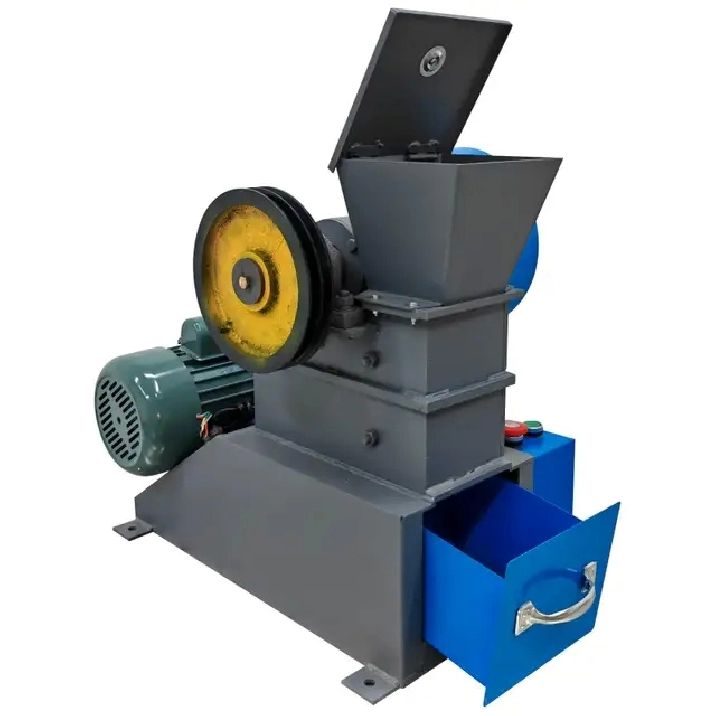

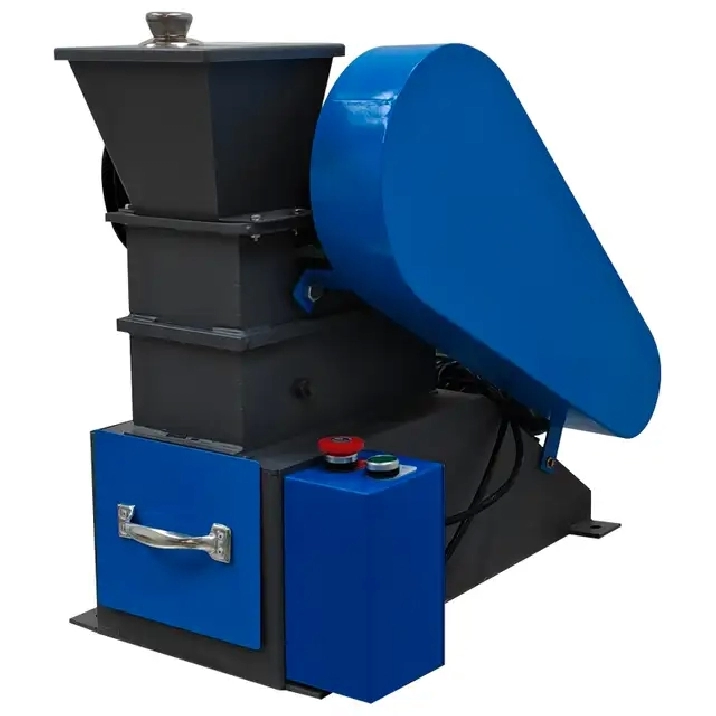

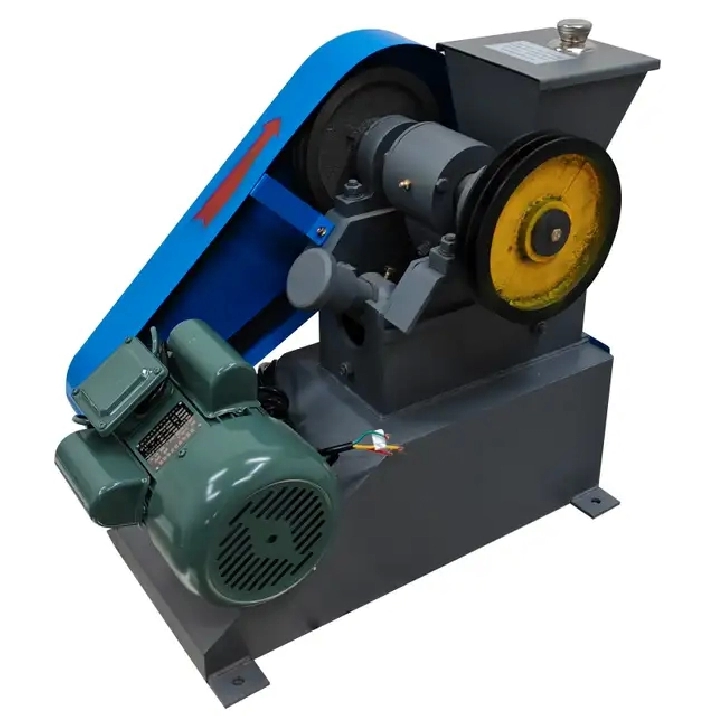

EP jaw crusher is a piece of special equipment for crushing hard materials in laboratories, and can be used for
sample preparation in laboratories of geology, coal, metallurgy, building materials, chemical industry and other departments. The machine has the characteristics of large crushing ratio, uniform discharged particle size, convenient adjustment, little production dust, safe and reliable use. It is a piece of ideal and practical laboratory sample preparation equipment.

Character
Project Unit EP-60*100
Power: 2.2KW
Voltage 220V
Material Cast iron
Voltage 220V
Fed Particle Size(mm) <60mm
Discharged grain size (mm) 6-30mm(Adjustable)
Productivity
≤ 1mm,53kg/h
≤ 2mm,120kg/h
≤ 4mm,300kg/h
≤ 6mm,400kg/h
Product Size 660*360*600mm

Usage method
1. After receiving the goods, check whether the machine packaging is intact and remove any abnormal situations that may occur during transportation.

2. Fix the body horizontally and firmly on a solid ground to reduce vibration and noise.

3. The machine needs to be connected to the air switch. After turning on the power, rotate the emergency stop switchto ensure normal operation of the machine and ensure that the motor direction is consistent with the arrow mark ofthe crusher.

4.Start the motor for a few minutes and load the material into the hopper. Equipment into the normal operation phase,should pay close attention to whether the abnormal, if abnormal must immediately stop inspection, remove theexception. After the preparation of the sample, should continue to use the machine running for a minute, and then stop cleaning equipment, remove sieve block and debris.

Product Features
Jaw plate regulating device
The discharge particle size can be adjusted as needed

Cast iron material
Good cutting performance,anti-penetration, wear-resistant and durable

Protective control box
Ensure that the equipment can be stopped promptly in case of emergency to avoid or mitigate possible damage to people, machinery or ongoing work.

Copper core motor
Sufficient power, low noise, strong ability to withstand overload

Application
Suitable for crushing materials: Calcite, talcum, cabblestones, kaolin, slag, steel slag, diabase, coom,coalgangue, maifanstone, basalt, iron ore, quartz sand, CaCO3, bentonite ect.

Some of crushing materials:

Note:
1.Due to different production batches, the machine accessories and colors are slightly different, we will ship randomly.

2.This machine has no plug and needs to be connected to the air switch for use by the customer(we have a video of the wiring, if you can't wire it, you can contact us for a video reference)

3.When using the machine, preventive measures must be taken. During machine operation,hands, clothing, and tools should be kept away from moving parts to avoid touching them with hands and prevent harm to the human body.

4.After working for about 2 hours, let the motor rest and cool down before continuing to use it.

Item Included: 021511
1*100*60 Mini Jaw Crusher 220V
