Item number: 122133

The maximum cutting thickness of the paper cutter is 5cm. For paper weighing around 250g, the recommended cutting thickness is within 4cm. For the heavier paper, the recommended cutting thickness is 2-3cm. Customers can select the machines 120115, 122124 and 120117 to cut the paper with the large weight.

Product Overwiew

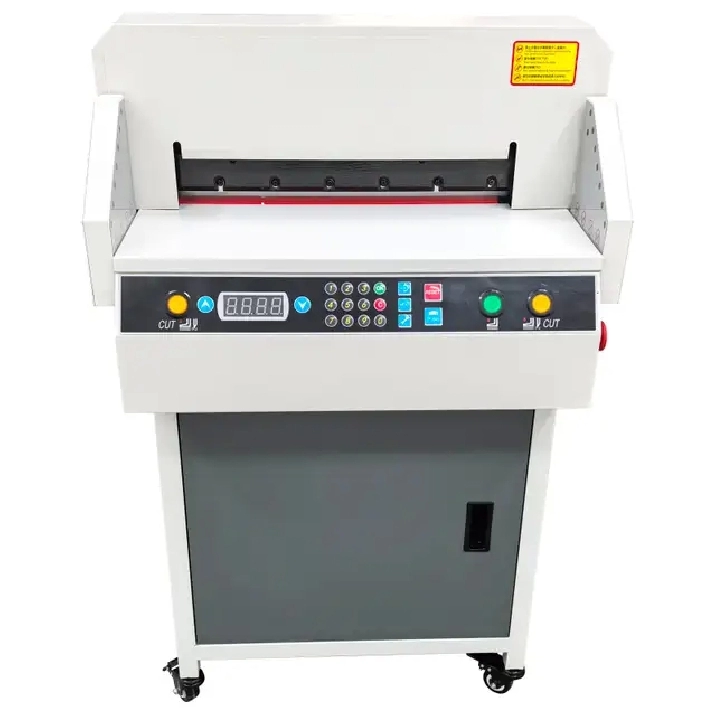

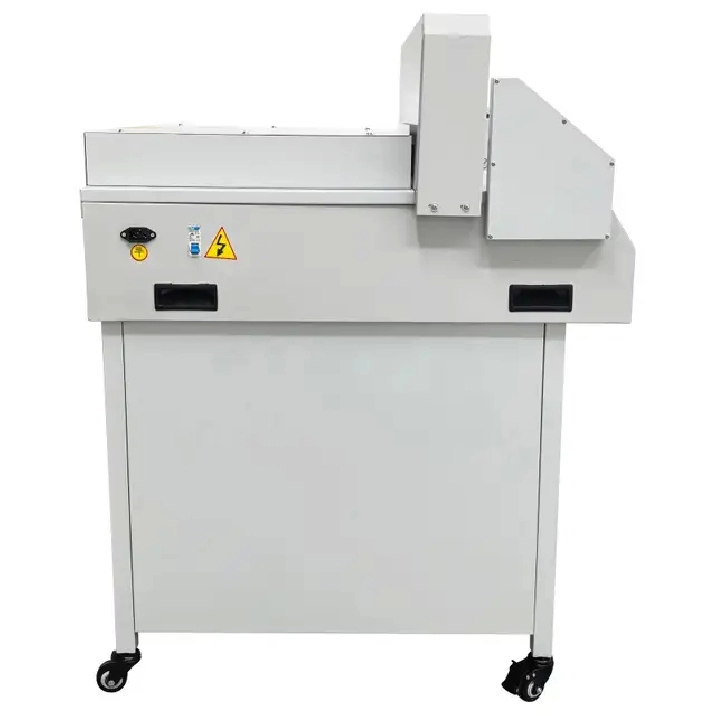

The Commercial Numerical Control Paper Cutter is a high-precision and high-efficiency modern paper cutting device. The double-button cutting mode, infrared light blade positioning and LCD display are adopted, therefore the cutting size is clearly displayed, and the cutting operation is much quicker and more precise. Infrared photoelectric protection, two-hand cutting operation and other protection measures are utilized to ensure safety of operation. It is your best choice for cutting.

Product Parameters

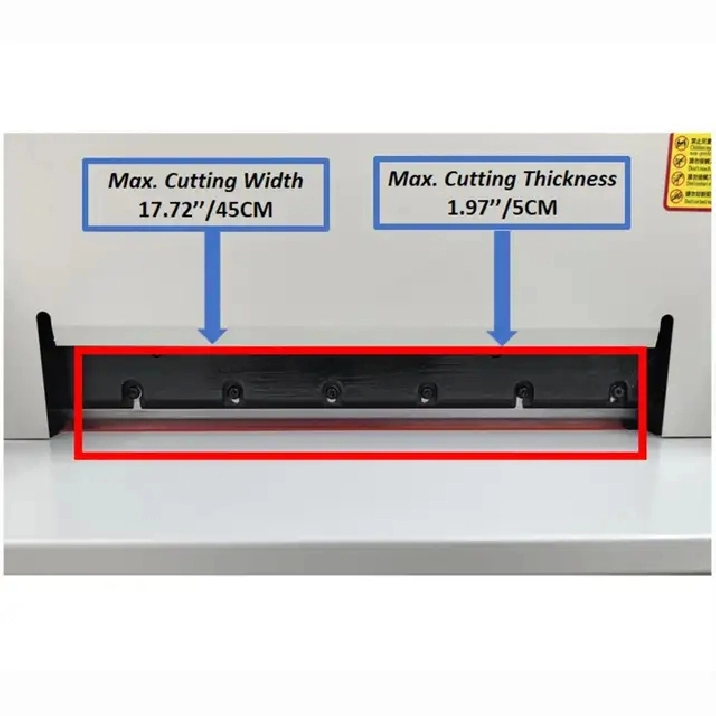

Maximum cutting width 17.72'' (45cm)
Maximum cutting thickness 1.97'' (5cm)
Cutting accuracy ±0.02'' (0.5mm)
Voltage 110V
Power 750W

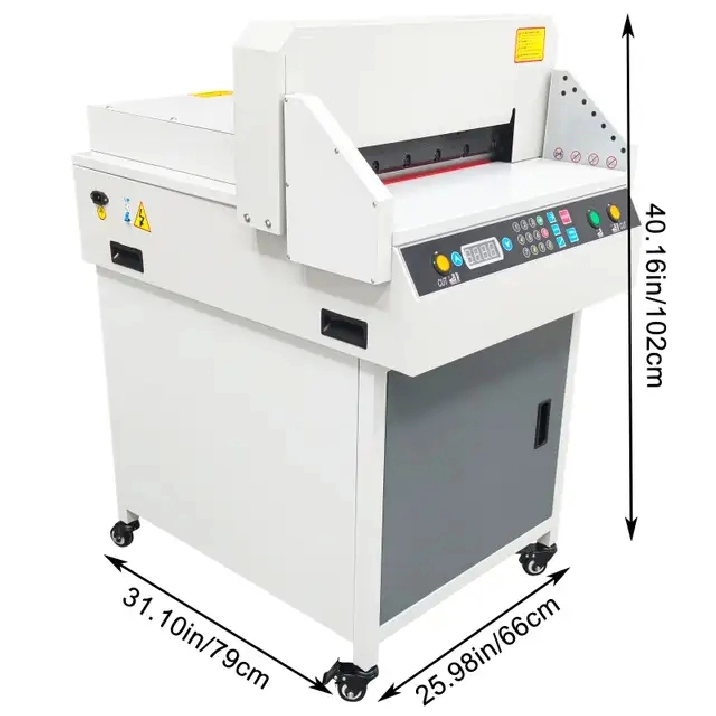

Product size 31.1'' x 25.98'' x 40.16'' (79x66x102 cm)
Net weight About 205LB (93kg)

Product Features
Steel Cutter Blade
The thickened high-speed steel cutter blade is sharp and durable and can cut materials more thoroughly and smoothly, and the cut position is flat and free of burrs. The inclined cutting mode is adopted, and the cutter can descend in an inclined mode, so that the cutting effect is better, and the cutter is more wearproof and user-friendly.

Numerical Control Push
The paper sheets can be automatically pushed to be cut. The user only needs to set the cutting size on the control panel, the paper can be cut to form the required size, the problem that the manual paper pushing mode is low in efficiency and precision is solved, and the cutting effect is better.

Infrared Light Positioning
The paper cutting position has clear light guidance, therefore the operator can clearly observe the cutting position, cutting operation is more intuitive and accurate and the precision is well guaranteed.

Infrared Photoelectric Protection
The infrared grating protection design is adopted, and the infrared protection devices are arranged on the two sides of the workbench. The red light flashes and the cutting operation stops immediately when any obstacles exist in the workbench of the machine, so that the operator uses the paper cutter more safely.
　

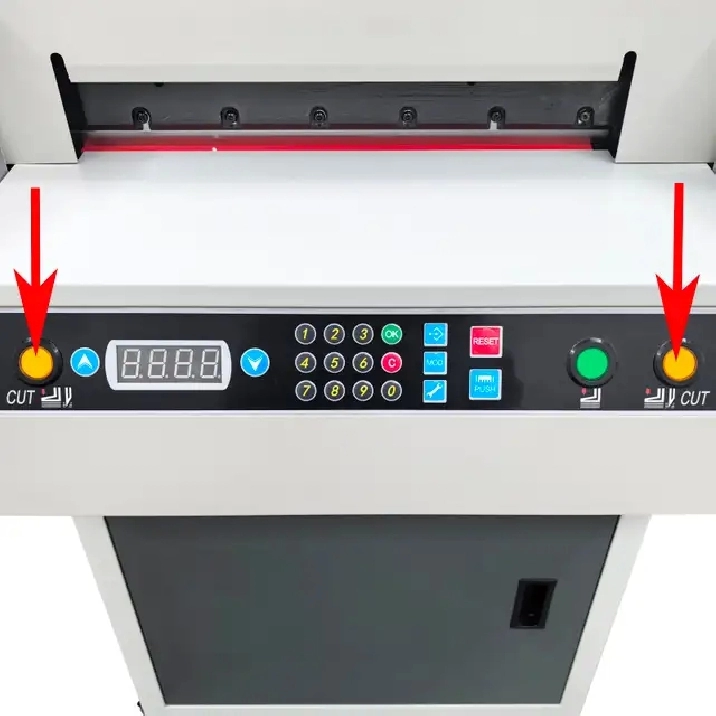

Dual-Button Cutting
Cutting can begin only when the two cutting buttons on the two sides are pressed by two hands at the same time, misoperation cannot happen, so that the safety of operators is further guaranteed, accidents are effectively avoided, and operation is much safer.

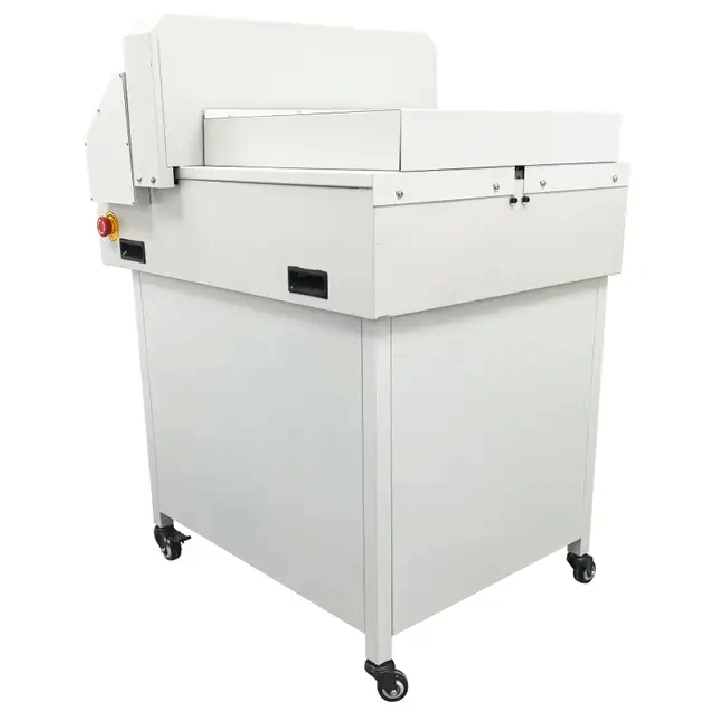

Emergency Switch
The emergency switch is installed on the side of the paper cutter, the user can immediately press the emergency switch in emergency, and the operation can stop right away, thereby effectively protecting the user against accidents and improving the safety of operation.

Universal Wheels
Two braking wheels and two moving wheels can be assembled at the bottom of the paper cutter, thereby stably fixing and moving the machine. The paper cutter can be quickly moved to the designated position and well fixed, the practicability is greatly improved.

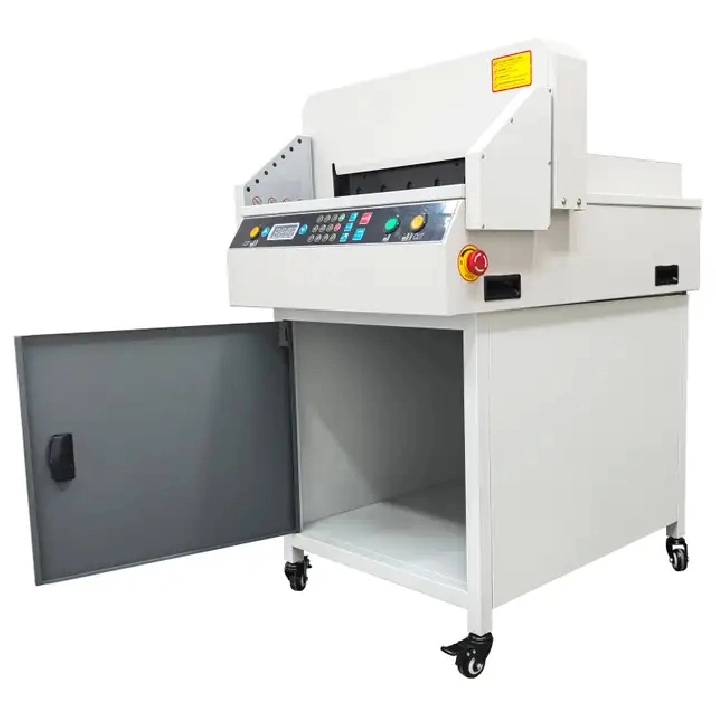

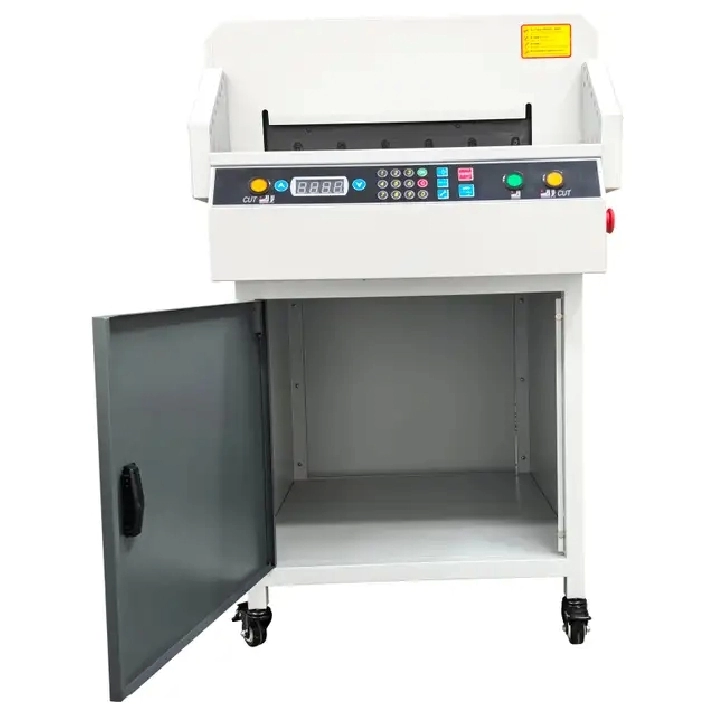

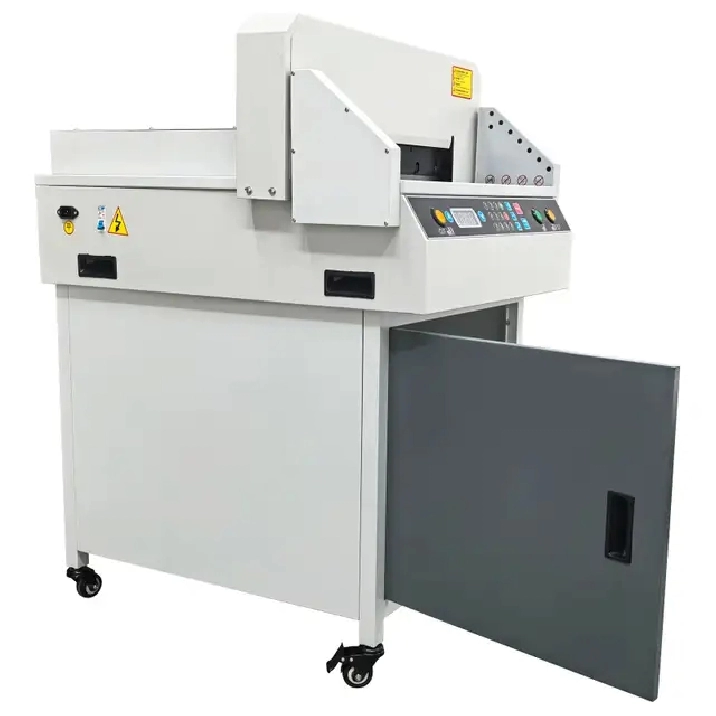

Storage Cabinet
The large-capacity storage cabinet is designed at the bottom of the paper cutter body, can store the materials to be cut, the finished products and other objects and facilitates cutting operation of the user. The storage cabinet can be easily opened and tightly closed, the storage effect is good, and the user experience is greatly improved.

Spare Knife Pad
A spare knife pad is additionally offered to the user and can replace the existing one when the existing pad is seriously worn. It can effectively protect the cutter blade against breakage and damage when the cutter blade descends. The knife pad has a good protective effect.
　

Attention
1. The voltage of the paper cutter is 110V. Please connect the paper cutter with the power supply correctly in accordance with the specification.
2. The paper cutter is allowed to cut paper, books and soft leather. It is forbidden to cut any metal sheets or other hard objects, otherwise the paper cutter would be damaged.
3. For the normal usage, the user should apply the lubricating oil to the transmission lead screw once every month.
4. Children or non-professional operators are forbidden to operate the machine so as to avoid accidents or accidental injuries.
5. Prevent water or other liquid from entering the machine. Place the machine in a dry, flat and ventilated place.

Application
The Electric Heavy Paper Cutter can be used for cutting various materials, such as different paper sheets, books, documents, pictures, leather materials and PVC materials. It can also be applied to multiple occasions, such as advertising, printing, graphic production, offices, processing plants and studios.

Item Number (122133): 1 x 110V 450mm Electric Heavy Paper Cutter
