Item number: 022810

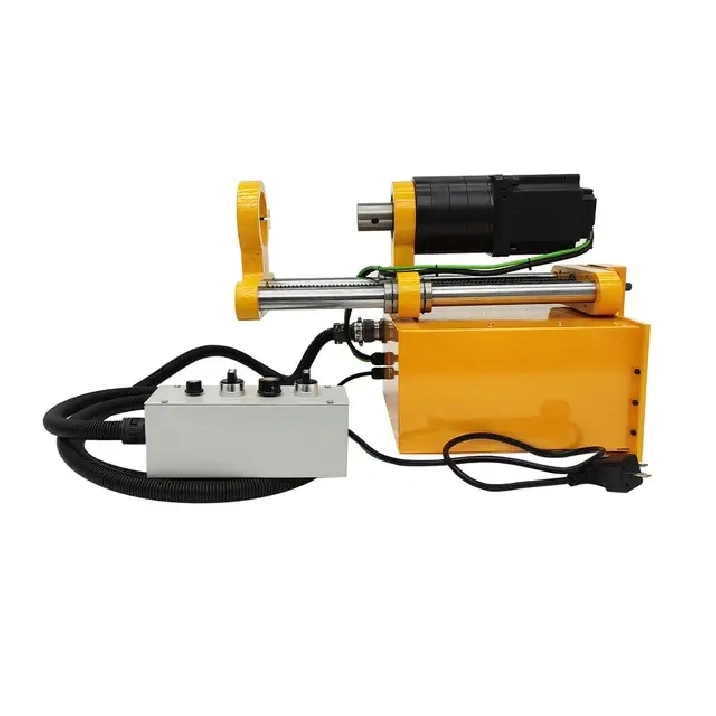

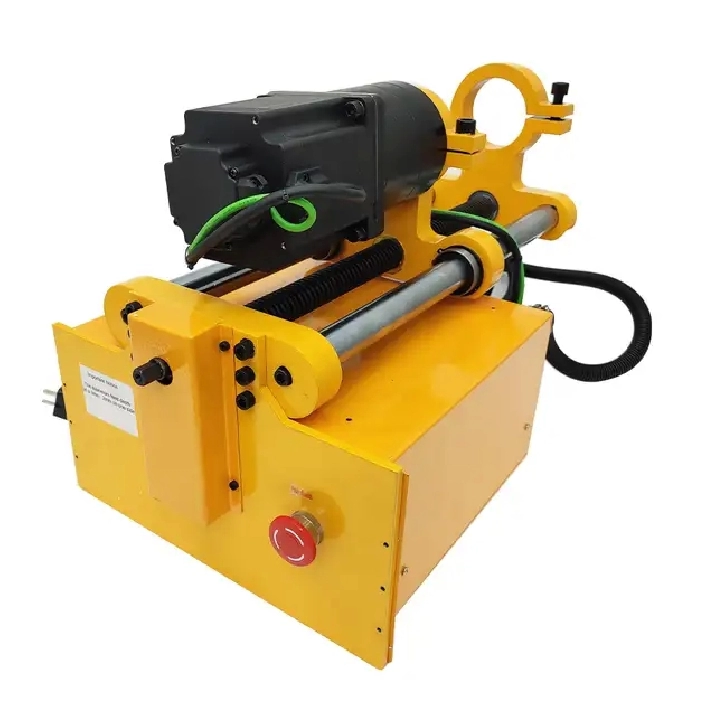

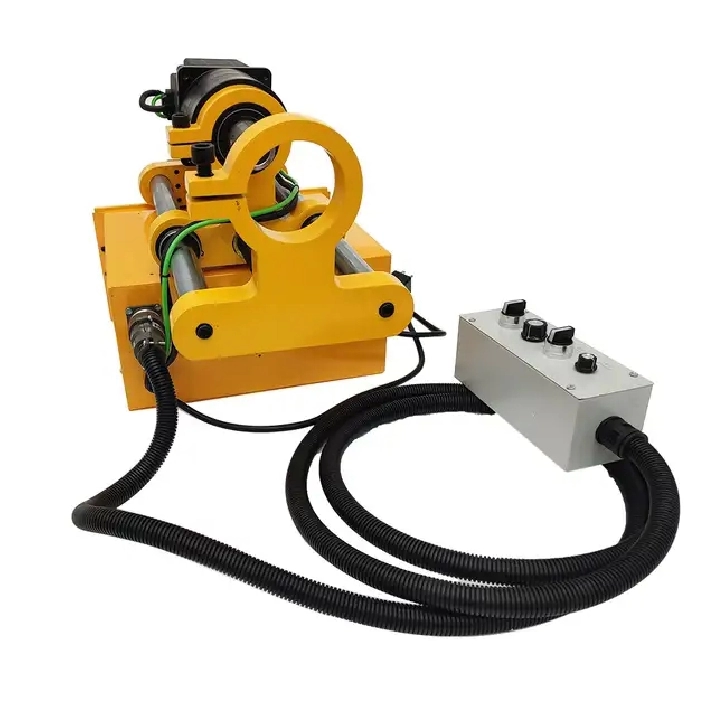

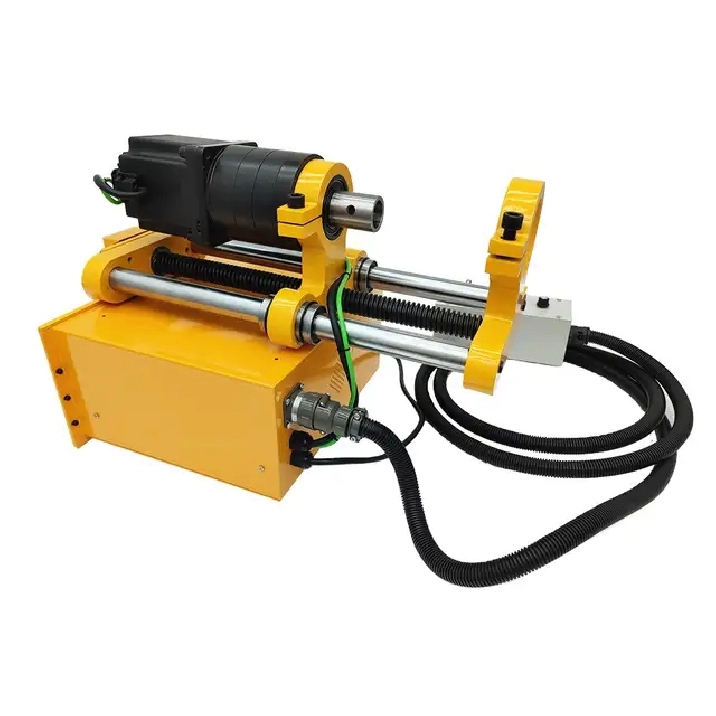

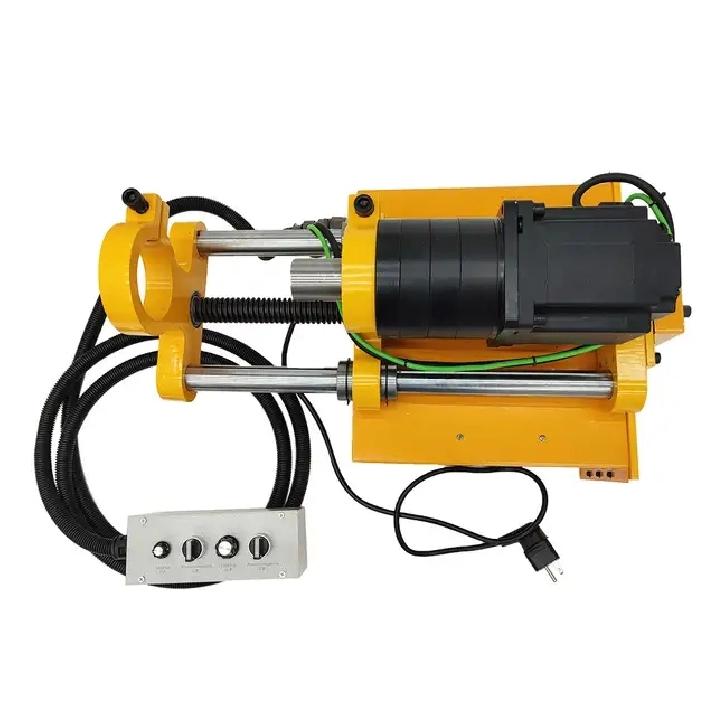

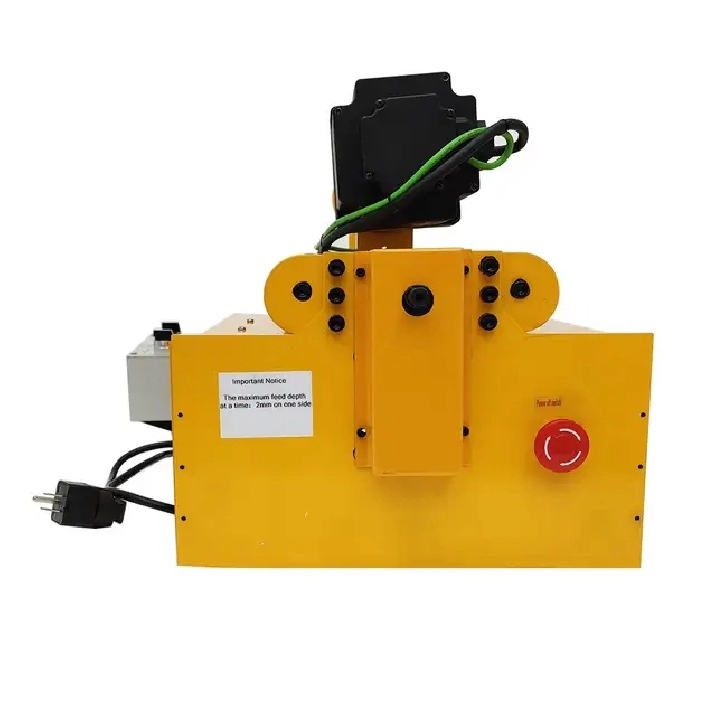

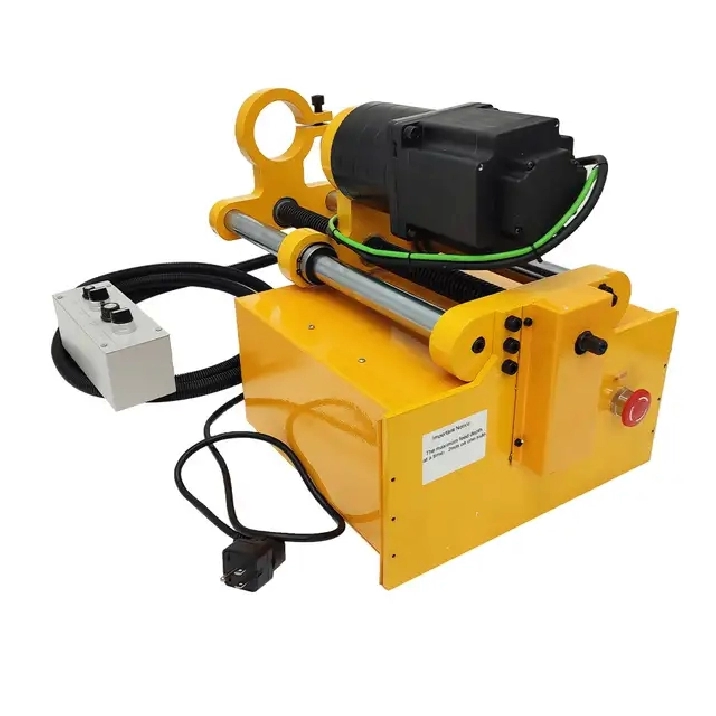

Hole drilling machine for engineering machinery is a portable processing equipment developed for field service of engineering machinery, which is mainly used in processing of small-scale pipeline inner hole and concentric span hole, and widely applied in engineering machinery, including excavator, crane, loader, and hoist.

Main Technical Parameters

The maximum processing hole diameter: Ф180mm

The minimum processing hole diameter: Ф45mm

The maximum processing travel: 380mm

The maximum feed depth: 2mm on one side (A3 steel)

Surface roughness: Ra3.2

Deviation from circular form≤0.02mm

Gross weight of equipment: 95.65KG

Rotate speed: 0-83RPM

Boring bar: 40*1500mm

Power: 1.5KW

Voltage: 110V

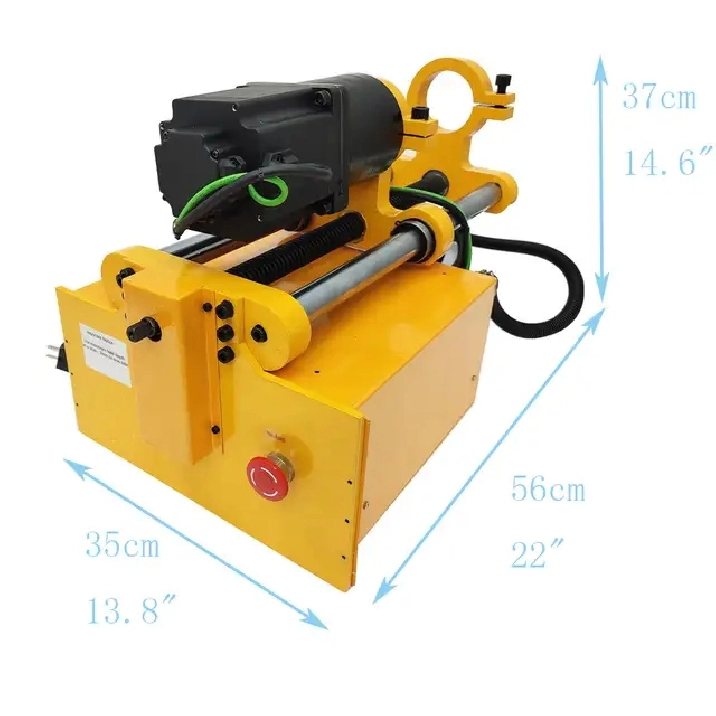

Host size: 56 * 35 * 37cm

Boring bar length: 1500mm

Diameter: 40mm



Features

1.By adopting 110V continuous current motor with characteristics of low-speed of revolution and high torque, the complete machine can realize stationary machining in superior performance.

2.Feeding and processing can realize electrodeless speed regulation. Feeding process can be set according to demands, and processing can automatically stop after reaching the limit switch.

3.Boring bar adopting high-strength alloy and structural steel is featured with high hardness, high accuracy, high tenacity, good abrasion resistance, etc.

4.The boring bar can be disassembled separately to make installation convenient.

5.The control cabinet is installed below the main engine to be beneficial to safety operation.

6.Electric motor controller is equipped with dynamic delay brake program to avoid vibration in shutdown.



Attention

This machine is installed by fixed clamping, and uses different tool rest according to different diameter ranges. Please confirm the diameter of processing hole before use to select the appropriate tool rest.

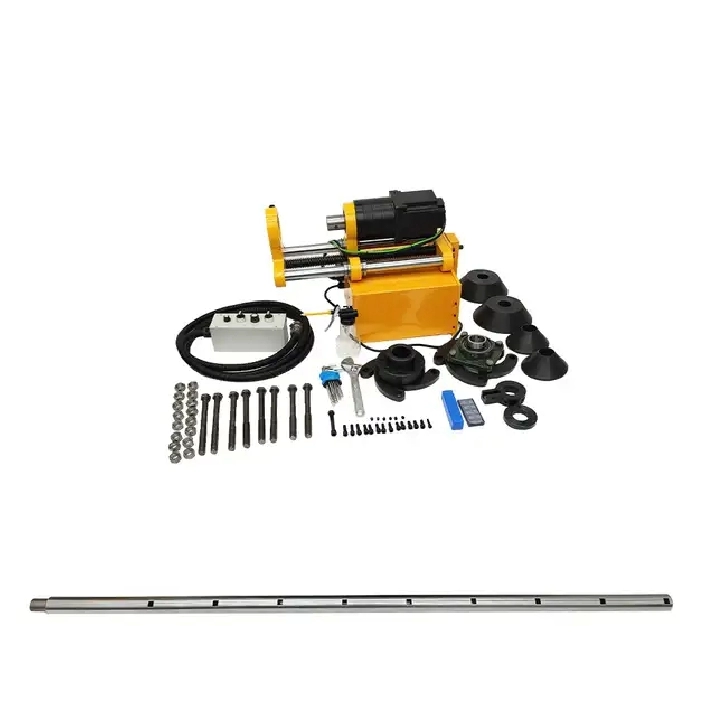

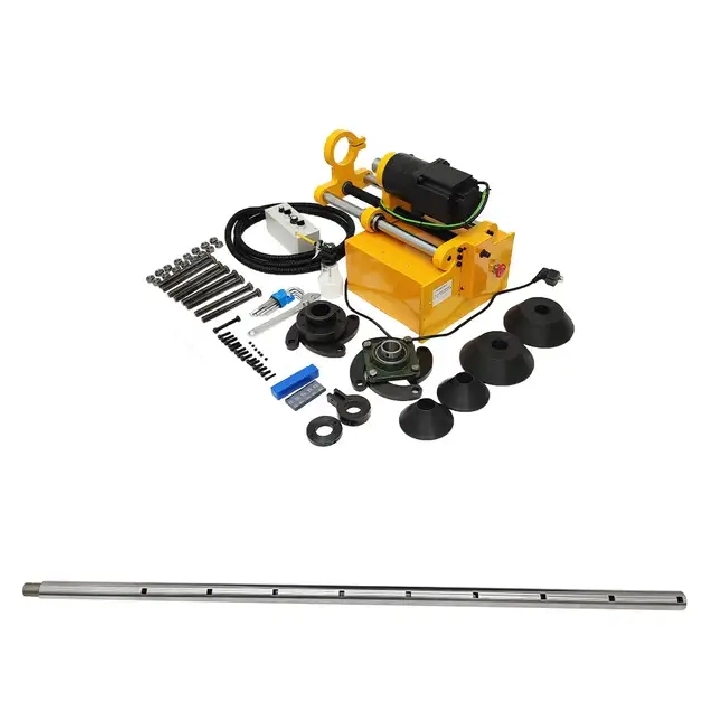

Packaging List

1. Host * 1

2. Handle controller * 1

3. Centering cone * 4 (2 large and 2 small)

4. Front bracket * 1

5. Rear bracket * 1

6. Knife holder * 1

7. Knife disc * 1

8. Knife handle * 1

9. Blade * 10

10. Support bolt * 8

11. Support bolt and nut * 16

12. Wrench * 1

13. Internal hexagonal wrench * 1 set

14. Spare screws * 1 pack

15. Oil pot * 1

16.Boring bar * 1
